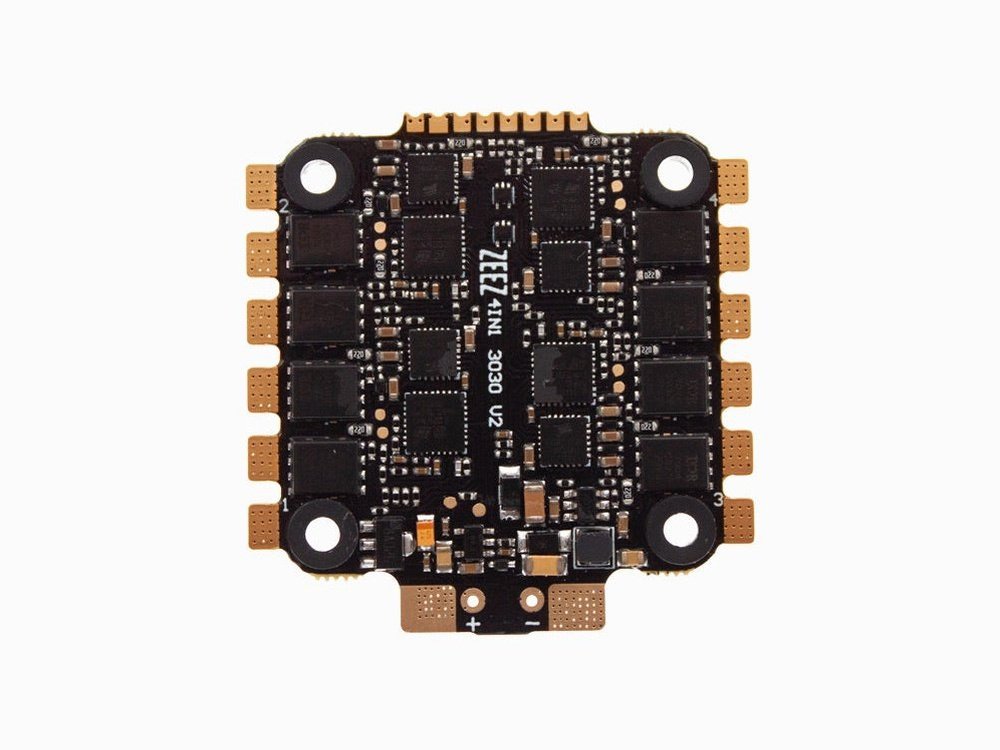

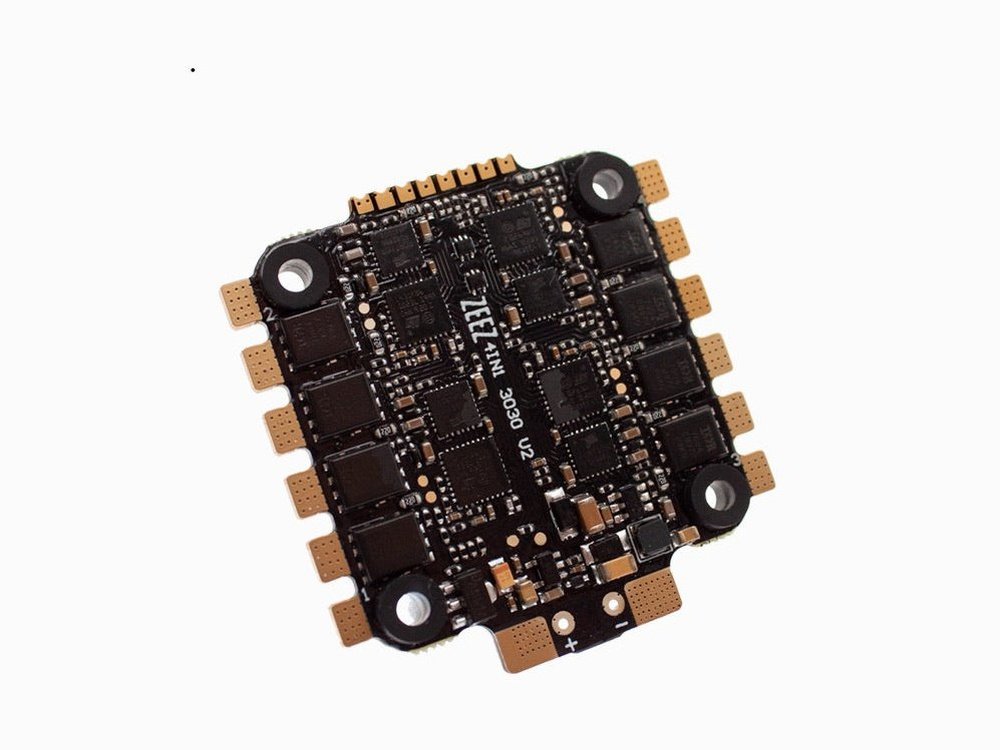

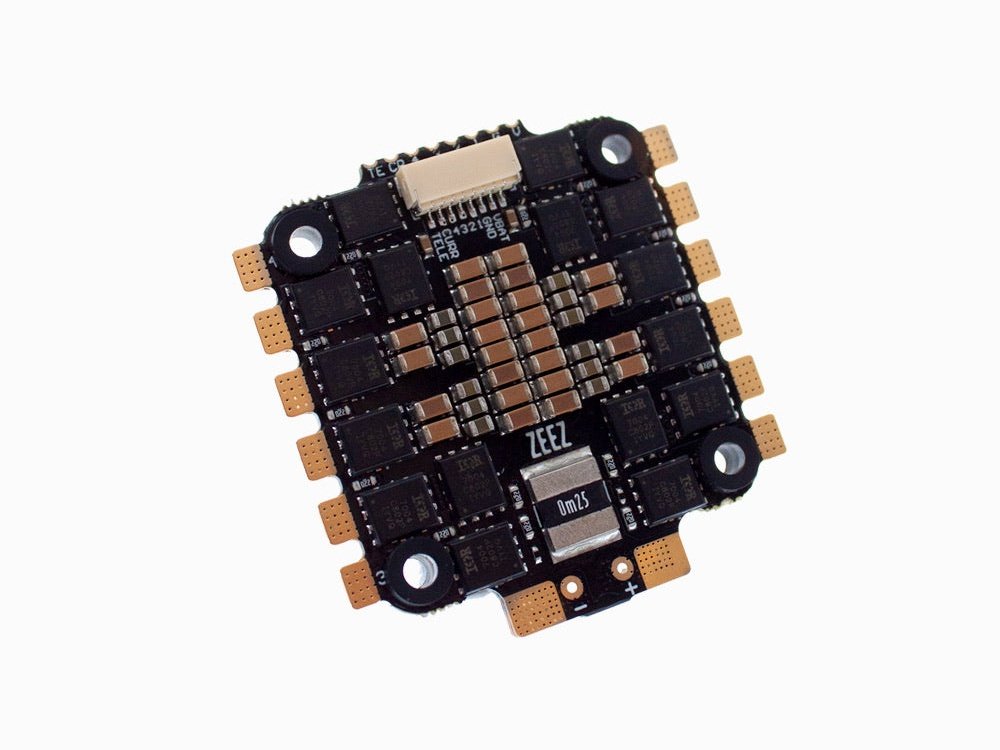

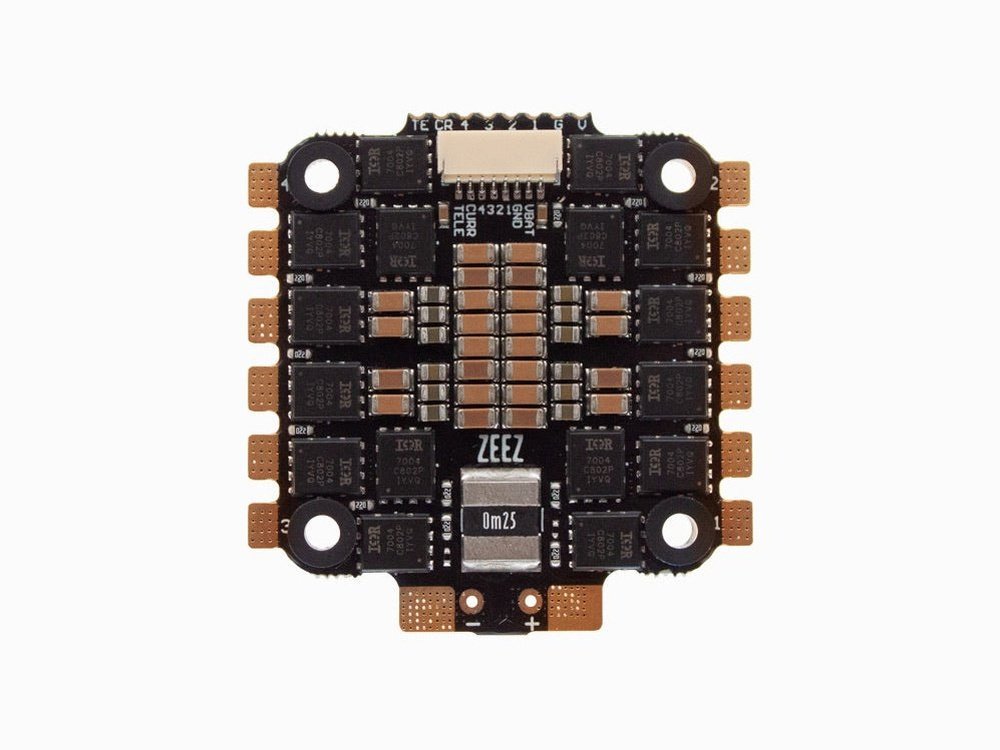

Zeez RC 55A BLHeli_32 4-In-1 ESC V2
The ZEEZ 55A 4-in-1 ESC is an improved version of last year’s 3030 ESC. Zeez took all the positive feedback from their users around the world along with the new advancements in technology and truly raised the bar with this one.
The ZEEZ 55A 4-in-1 ESC comes with the fastest MCU available which is fully supported by BLHELI32, the STM32L4, it is 12% FASTER than the old STM32F3 and 67% FASTER than STM32F0. It supports Bi-directional DSHOT and all digital protocols (DSHOT150, DSHOT300, DSHOT600) out of the box. It supports 96KHz PWM drive frequency to the MOSFET whilst still supporting all analog protocols (PWM, OneShot125, OneShot42, Multishot).
With advice from veterans as well as newer pilots, the solder pads have been improved by giving them more clearance, which makes soldering as easy as 1,2,3. Additional copper was also added around the pads for greater strength.
Specifications:
- LiPo Power input: 3S-6S
- Cont. Current: 55Amps x 4
- Burst Current: 75Amps x 4
- Input wires: 12AWG-130mm* (Red/Black)
- Output Wire: solder pads and 8P connector
- Mounting holes: 30.5x30.5mm
- ESC Firmware: BLHeli_32
- High quality MOSFET with RDS(on) 1.1 mΩ 40V rated.
Includes:

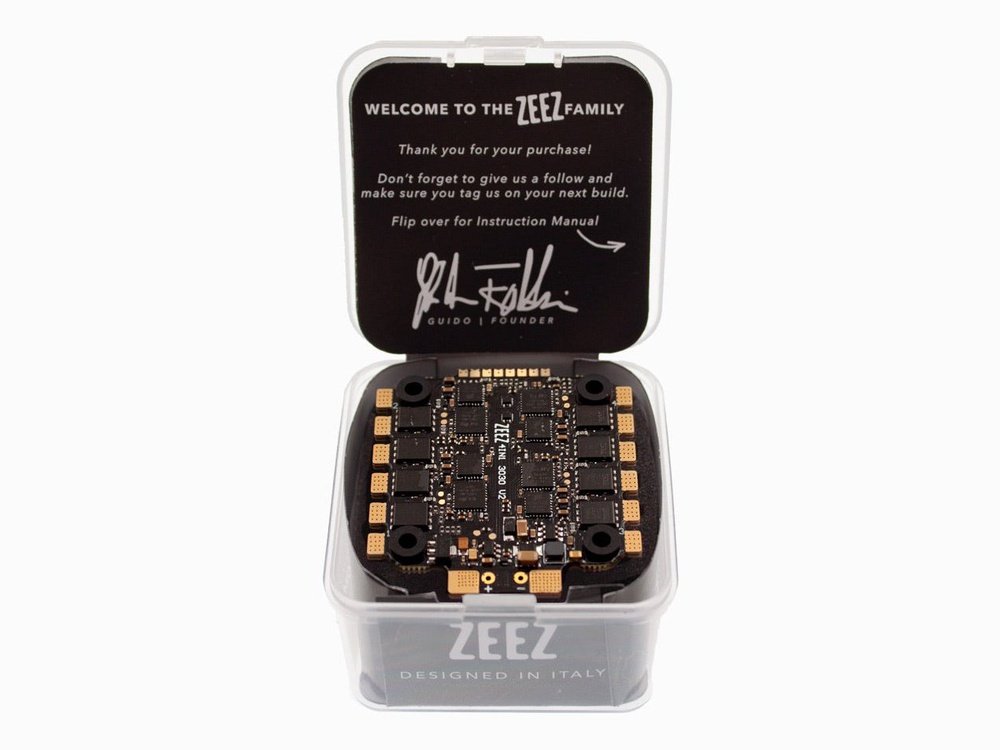

1x ZEEZ 55A 4-in-1 ESC
4x Aluminum Standoff
1x ESC to Flight Controller 8 Pin JST SH 1.00mm connector
2x 470uF 35V Low ESR Capacitor
1x XT60 with 12AWG Silicon Cable
