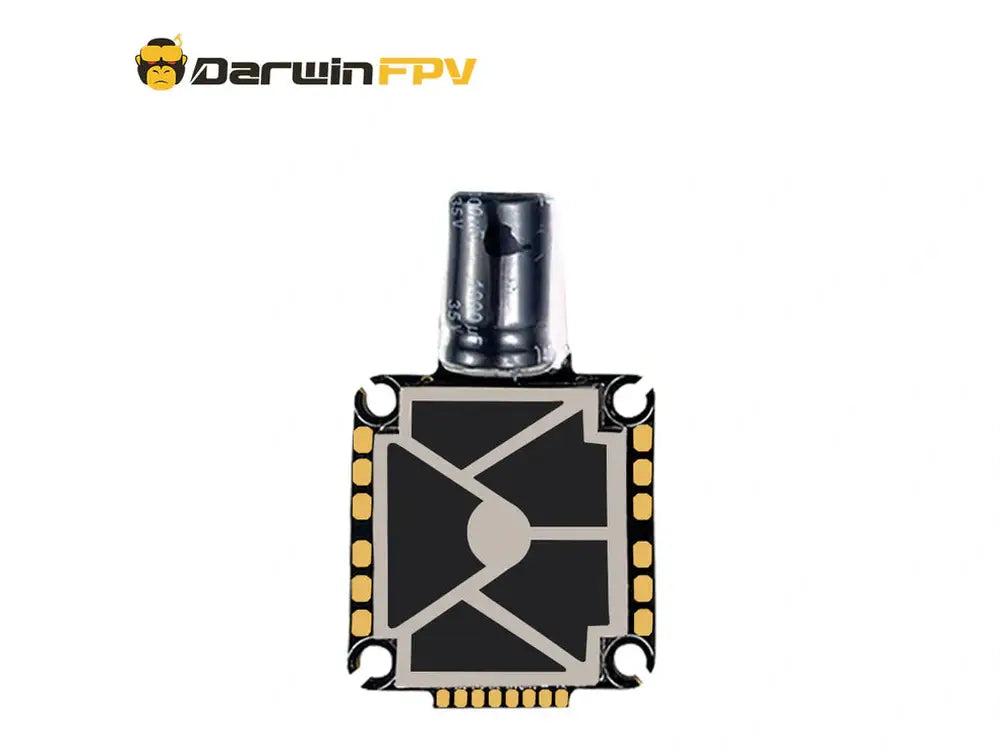

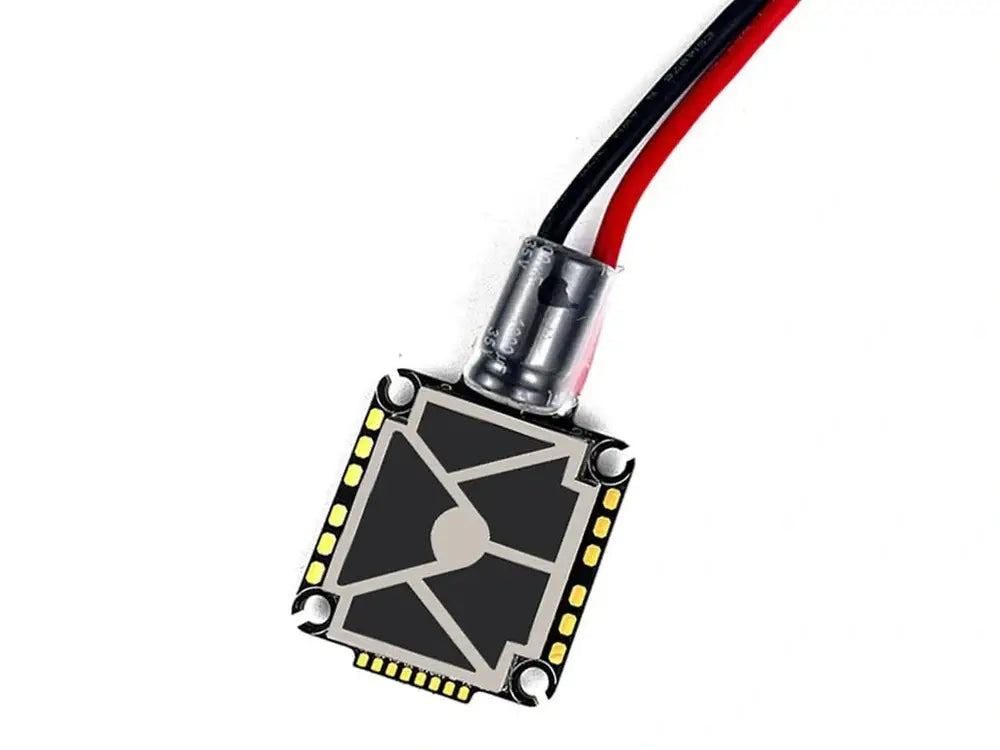

DarwinFPV Cement Ultra Durable BLHeli_32 100A 4-In-1 Waterproof ESC

  • $92.99
    Unit price per


+ -

DarwinFPV Cement Ultra Durable BLHeli_32 100A 4-In-1 Waterproof ESC is the top ESC launched by the Darwin team for professional pilots. It completely solves the industry problem of poor reliability of FPV drones, allowing you to fly in any environment and greatly improving the fun of flying. Satisfy your various creative inspirations!

Includes many novel features such as high thermal conductivity heat dissipation shell, glue filling inside for waterproof and impact-resistance, ultra-high current MOS bus technology with multiple hardware protections. This ensures stability and reliability in extreme environments.

Features:

  • IP67 dust and waterproof rating, capable of withstanding immersion in 0.5 meters of water for 30 minutes without harm.
  • Crafted using the highest-grade components, providing you with an unparalleled experience and top-tier enjoyment.
  • F435 main control chips boast incredibly strong computing power, allowing for unrestricted full configuration operation.
  • The innovative "sandwich" stacking scheme is employed in the electronic speed controller (ESC), offering greater current capacity, enhanced heat dissipation, and increased spatial utilization.
  • 128KHz dynamic PWM output for finer throttle control.

Specifications:

  • MCU:  AT32F421 (32-Bit 120MHz 128KHz Dynamic PWM)
  • Input Voltage:  3-8S LiPo
  • Continuous Current:  4x100A (Requires continuous operation at 100A, necessitating a water-cooled heat dissipation environment)
  • Peak Current:  4x120A (5S)
  • Motor Protocol:  DSHOT150/300/600/1200 MultiShot OneShot42 OneShot125
  • Current Meter:  Supported (Scale=125)
  • Telemetry:  Supported
  • Firmware:  DARWIN_F4_60 (BLHeli_32)
  • Power Cable:  #14AWG/120mm
  • Mounting:  30.5x30.5mm
  • Dimensions:  36.8x42.5x7.5mm
  • Weight:  23g
DarwinFPV Cement Ultra Durable BLHeli_32 100A 4-In-1 Waterproof ESC
DarwinFPV Cement Ultra Durable BLHeli_32 100A 4-In-1 Waterproof ESC
DarwinFPV Cement Ultra Durable BLHeli_32 100A 4-In-1 Waterproof ESC
DarwinFPV Cement Ultra Durable BLHeli_32 100A 4-In-1 Waterproof ESC

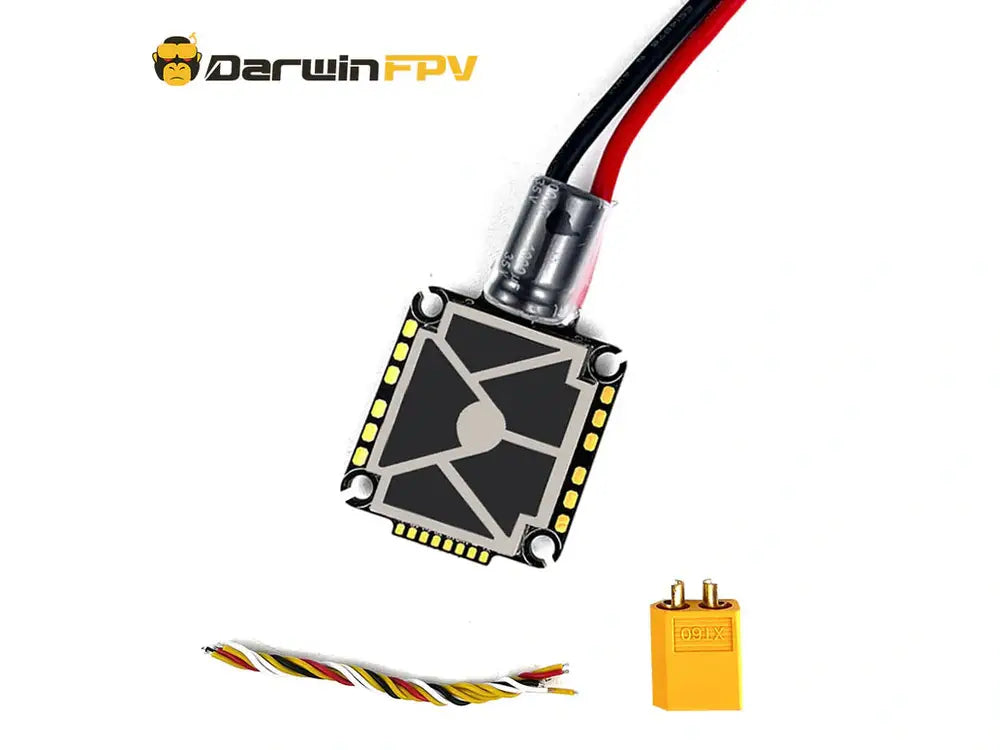

Includes:
1x DarwinFPV Cement Ultra Durable BLHeli_32 100A 4-In-1 Waterproof ESC
1x 30mm ESC Cable (8P)
1x XT60
1x 14AWG Power Cable 120mm (soldered to ESC)
1x 35V/1000uF Electrolytic Capacitor (soldered to ESC)
4x M3*6.6mm Shock-Absorbing Balls (Installed on ESC)
1x Sticker
