Diatone Mamba MK4 F722 Mini Reactor 44A BLHeli_32 Stack (MPU6000)

  • $112.99
    Unit price per


+ -

Diatone's Mamba MK4 (fourth generation) stack is a redesign of its already fantastic line of flight controllers and ESCs. Improvements include making the products easier to use by increasing soldering pad sizes by 30%, pad spacing by 100%, adding USB-C, additional UARTS, I2C, better filtered BEC, ESC support for 128K PWM, and more.

Now available with the Reactor 44A BLHeli_32 4-In-1 ESC. A robust and powerful ESC that won't let you down.

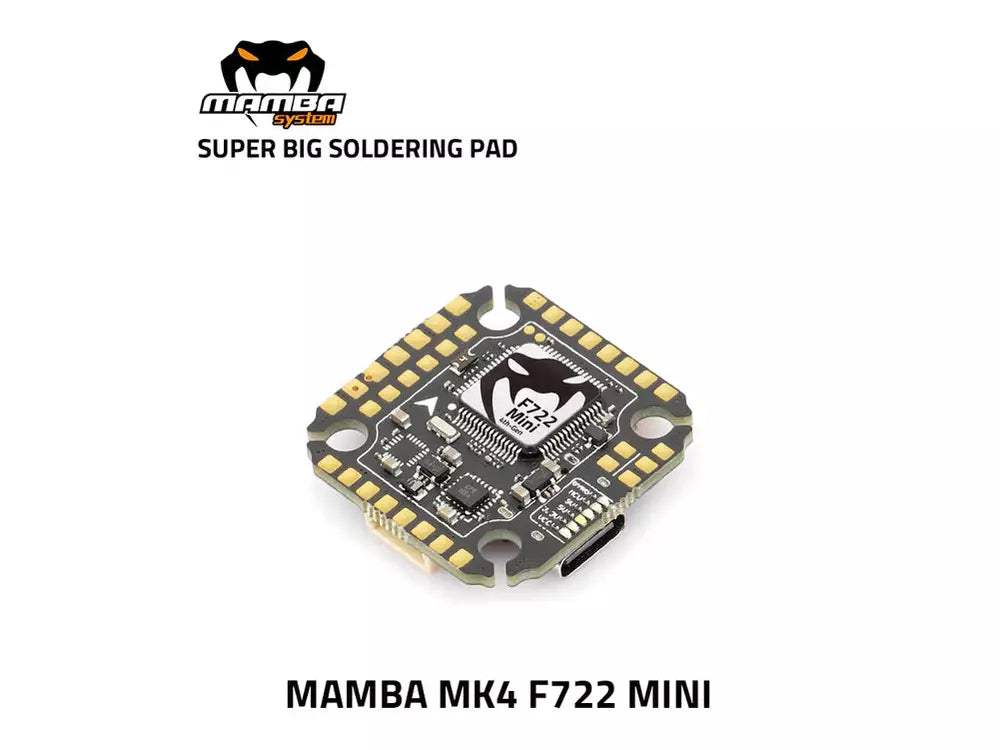

Diatone Mamba MK4 F722 Mini Flight Controller

What's New?

A completely different pad style has been redesigned to increase pad area by 30% and pad spacing by 100%, reducing solder errors and associated failures.

  • The pad area increased by 30%
  • Pad spacing increased by 100%
  • MP9943 synchronous rectifier BEC

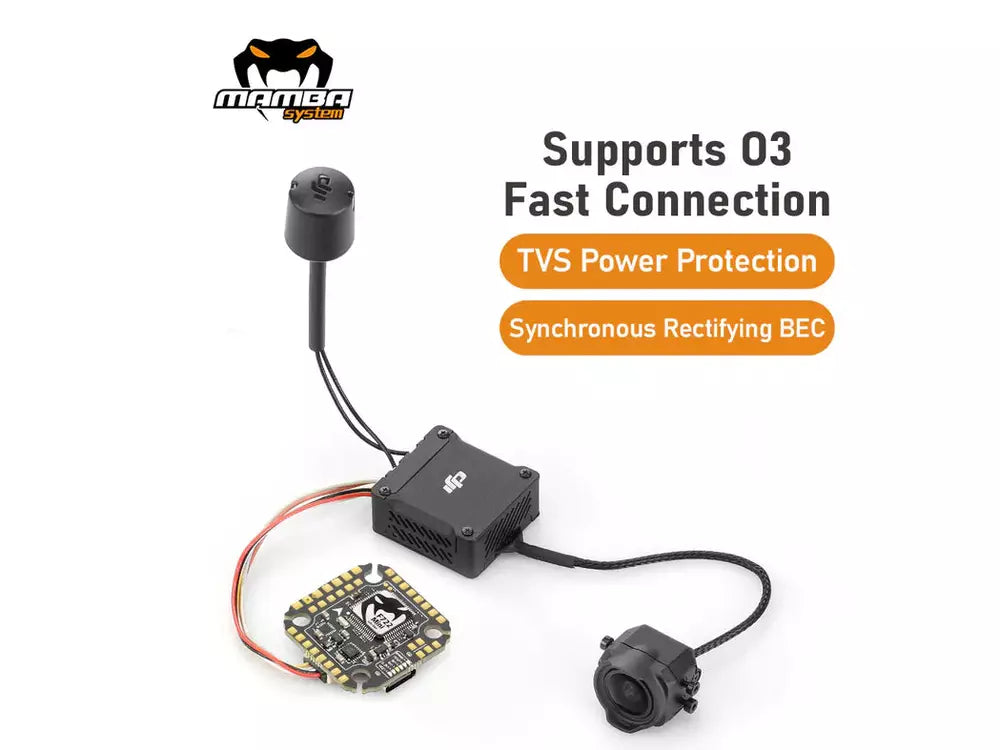

  • MINI series upgrade DJI interface and 5v 15W/9V 18W 2 set BEC

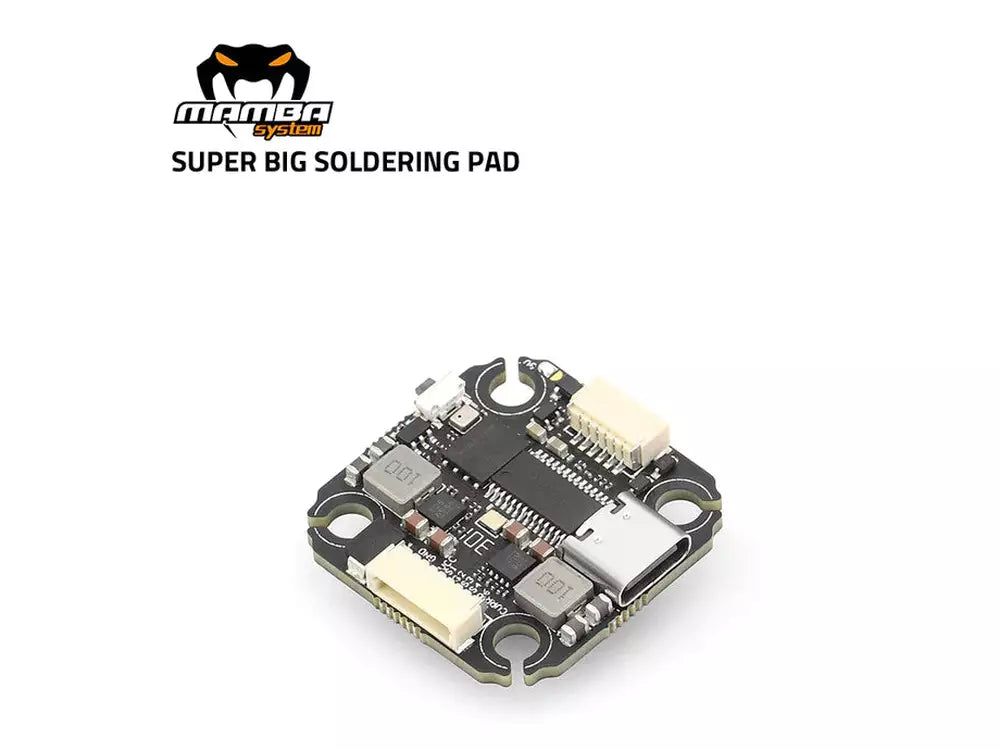

  • USB Type C
  • 6 Set UART and I2C
  • 4 Set Power Protection
  • 32Bit ESC all support 128K
  • Mini series FC uses 2mm and 3mm mounting holes, special dampening ring
  • Upgrade the twisted pair anti-jamming cable and reinforcement process

Specifications:

F722 MINI MK4 FLIGHT CONTROLLER

  • MCU:  STM32F722
  • Frequency:  216MHz
  • Gyro:  MPU6000
  • Barometer:  SPL06
  • OSD:  AT 7456E
  • Blackbox:  16M Memory
  • Barometer:  Yes
  • UARTS:  6 Sets
  • I2C:  Yes
  • F.Port:  Yes
  • Buzzer:  Yes
  • Current:  Yes
  • ESC Signal:  8 Sets
  • BEC 3.3V:  0.5A
  • BEC 5V:  2.5A
  • BEC 9V:  2A
  • MB LED:  Yes
  • BF LED:  Yes
  • Air Unit Port:  Yes
  • VTX Switch:  Yes
  • BEC Protection:  Yes
  • Receiver Protection:  Yes
  • TVS Protection:  Yes
  • Input:  6S LiPo
  • Firmware:  Betaflight
  • Mounting:  20.0x20.0mm,M3/M2
  • Size:  29.0x29.5x6.5mm
  • Weight:  6.0g

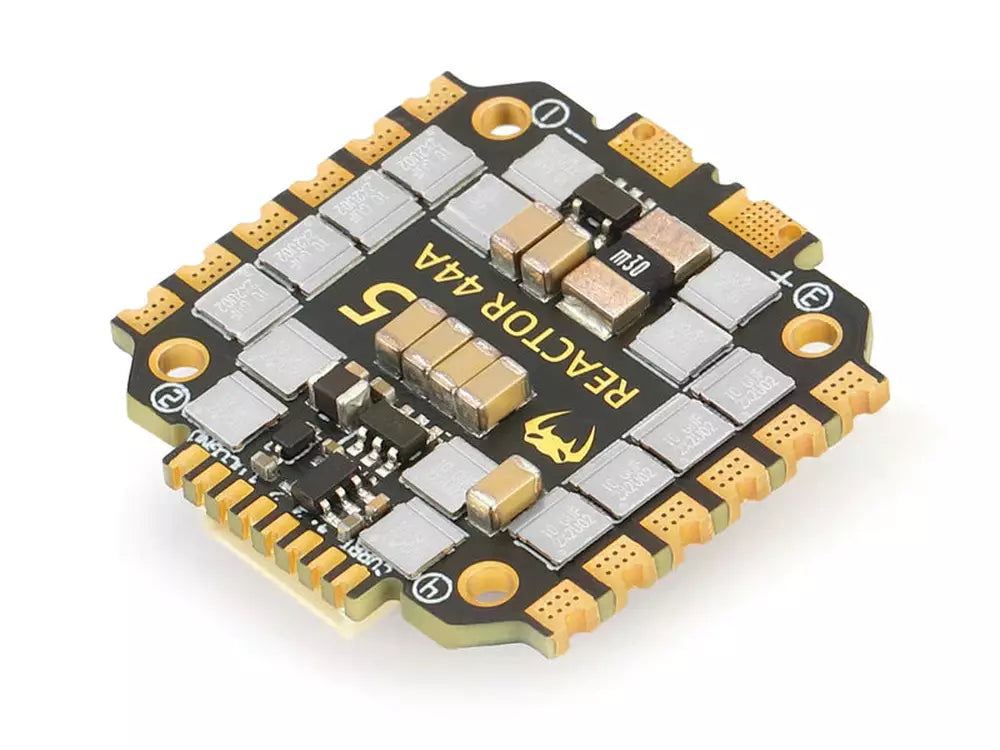

REACTOR 44A BLHELI_32 4-IN-1 ESC

  • Input Voltage:  4~6S LiPo (16.8V~25.2V)
  • Continuous Current:  44A
  • Burst Current:  54A (10S)
  • BEC:  No
  • Target:  BLHeli_32 MAMBA5_Reactor_44
  • Soft:  DShot300/600/1200 / MAX2400(FETtec)
  • PWM:  24~128K
  • Mounting:  20x20mm/M2 M3

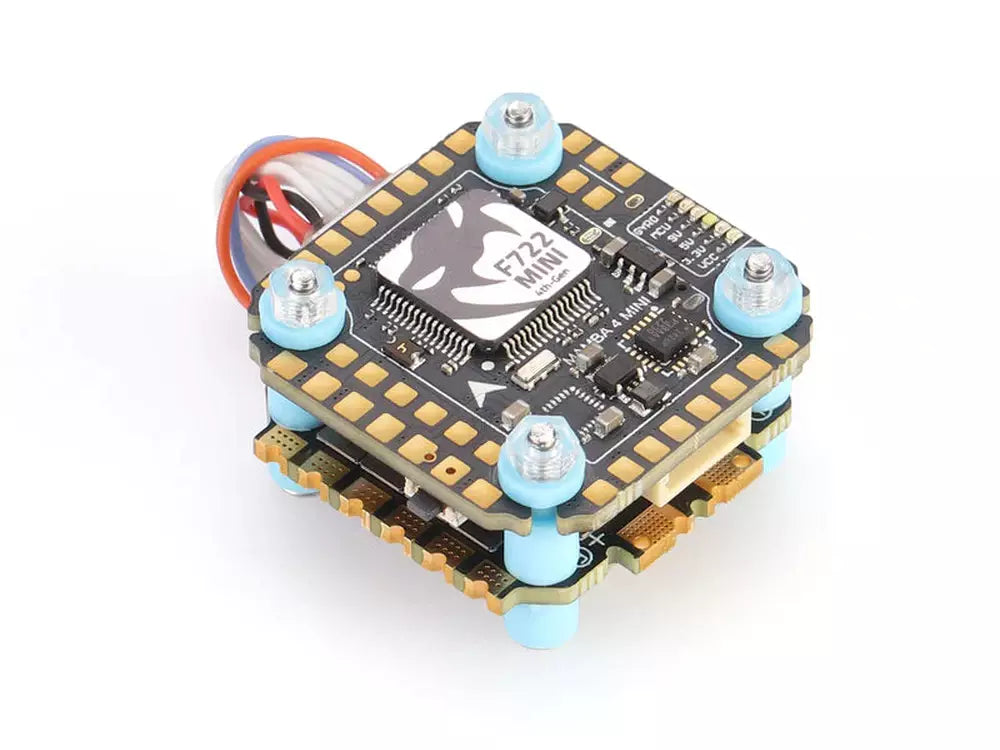

Diatone Mamba MK4 F722 Mini Reactor 44A BLHeli_32 ESC Stack

Diatone Mamba MK4 F722 Mini Flight Controller Reactor 44A ESC Stack

Diatone Mamba MK4 F722 Mini Reactor 44A Stack

Diatone Mamba MK4 F722 Mini Reactor 44 Stack

Includes:
1x Diatone Mamba MK4 F722 Mini Flight Controller
1x Diatone Mamba Reactor 44A BLHeli_32 4-In-1 ESC
1x Amass XT60
1x 470uF/35V Capacitor
1x Set of Wiring
1x Set of Silicone Damping
1x Set of ESC Isolation Columns
