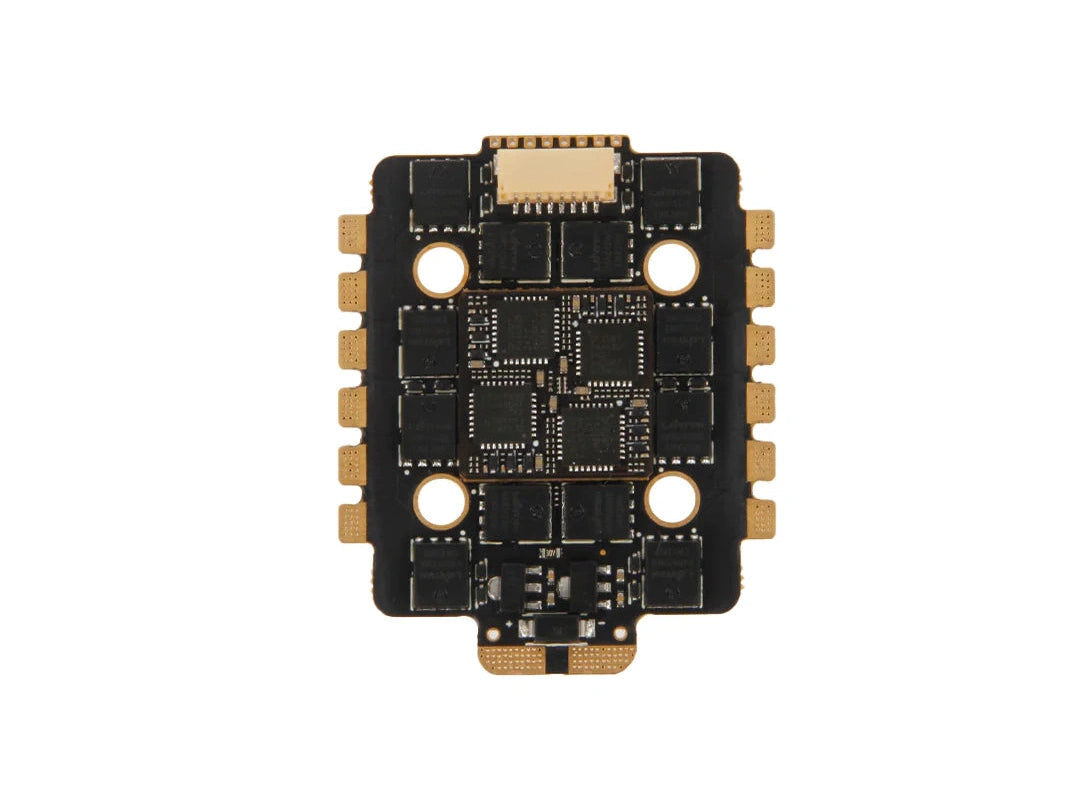

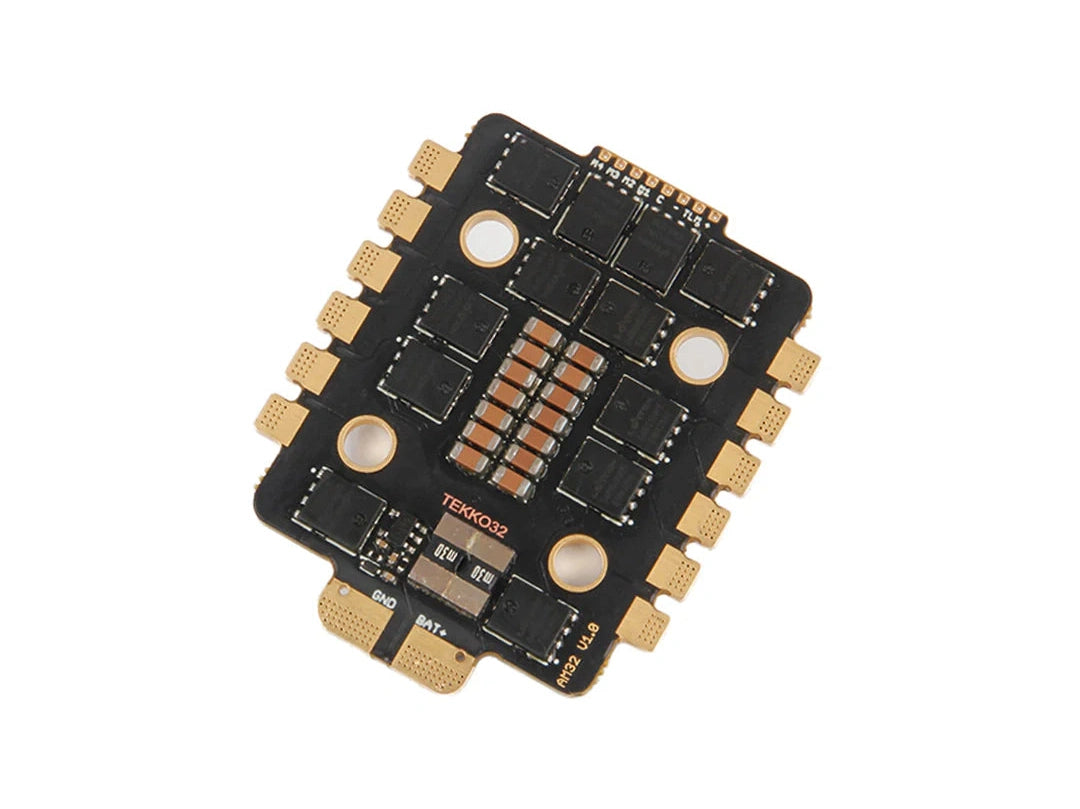

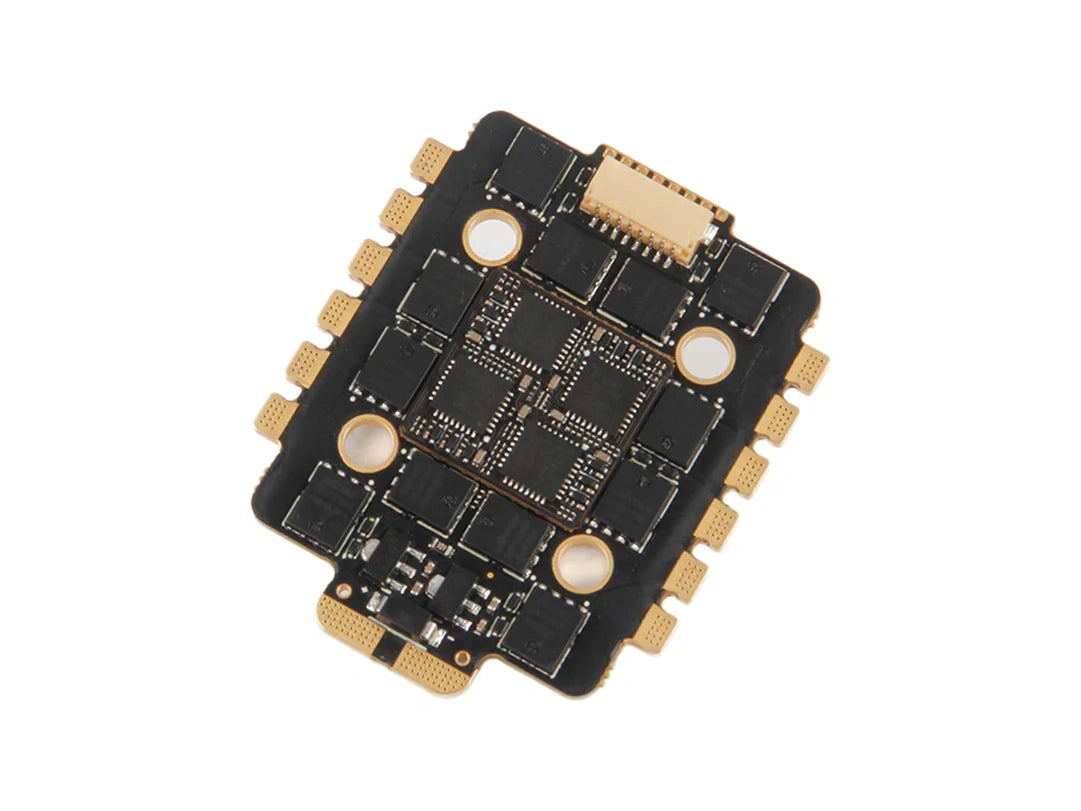

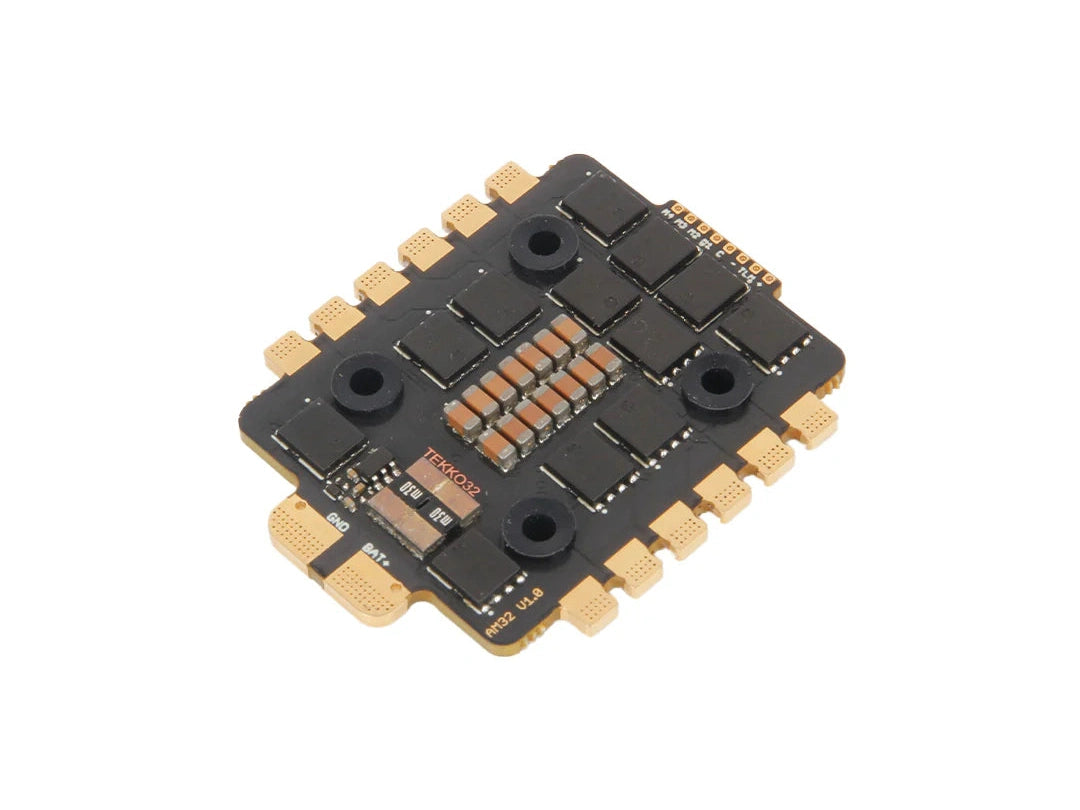

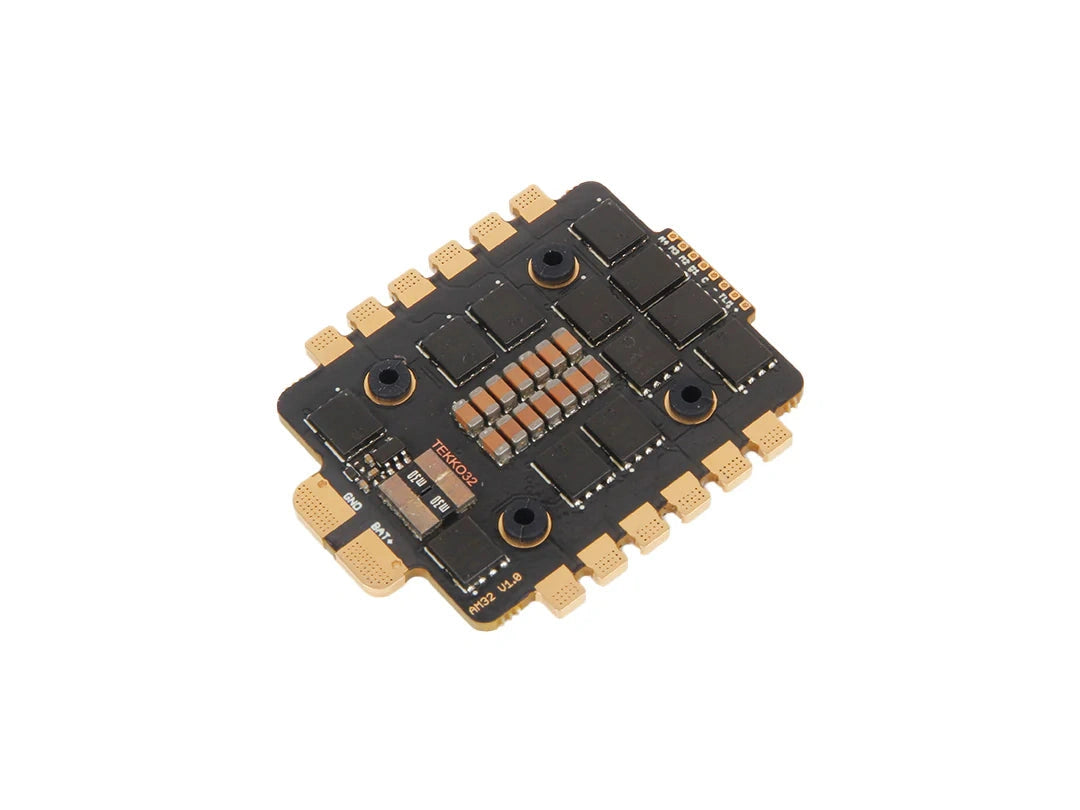

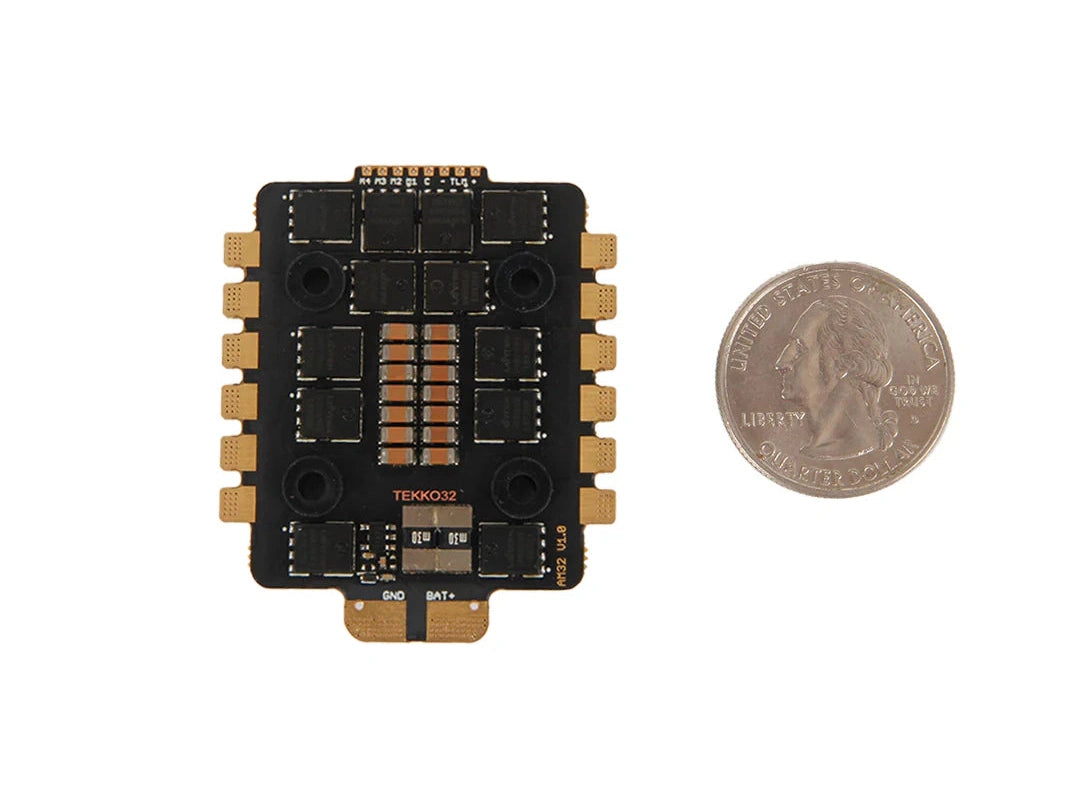

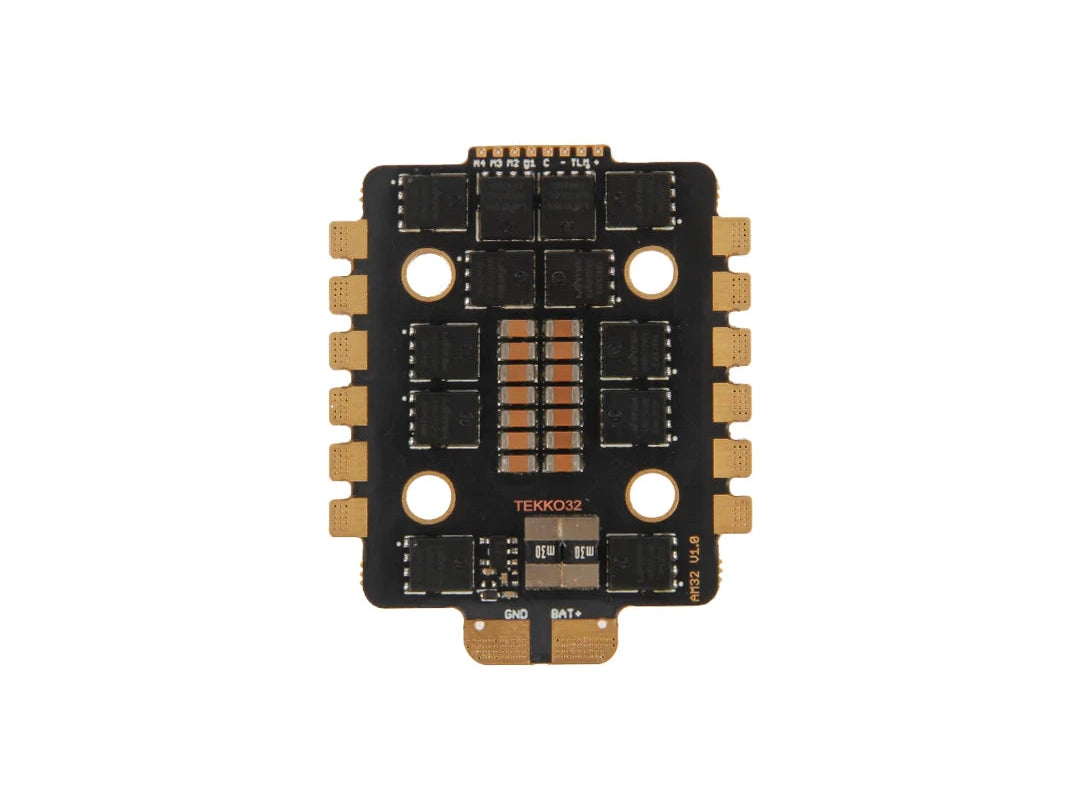

Holybro Tekko32 F4 Mini 4-In-1 50A AM32 ESC



The Holybro Tekko32 F4 50A Mini AM32 4-in-1 ESC features high-quality MOSFETs for reduced internal resistance and improved heat dissipation. Its F4 MCU allows for smooth performance and faster operation. With a separate drive & control circuit, expect reduced electrical interference and cleaner power throughout your system.

Features:

  • All new High-quality MOSFETs with low internal resistance & heat generation, and individual metal heatsink
  • New and faster F4 MCU @ 150Mhz (compared to F3 @108Mhz & F0 @48Mhz)
  • Separate drive & control circuit, reducing the electrical interference to the control circuit

Specifications:

  • Continuous current: 50A x4
  • Burst current: 60A x4
  • Battery support: 4-6S
  • PWM frequency: 8k to 96k
  • Support DShot 150/300/600/1200
  • Support MultiShot/OneShot/Proshot/PWM, etc.
  •  ESC telemetry Support
  • Onboard analog current sensor
  • AM32 Firmware
  • 1000uf 35v capacitor included
  • Mounting holes: 3.8mm @ 20x20mm, compatible with either M2& M3 Rubber Gourmet (Included)

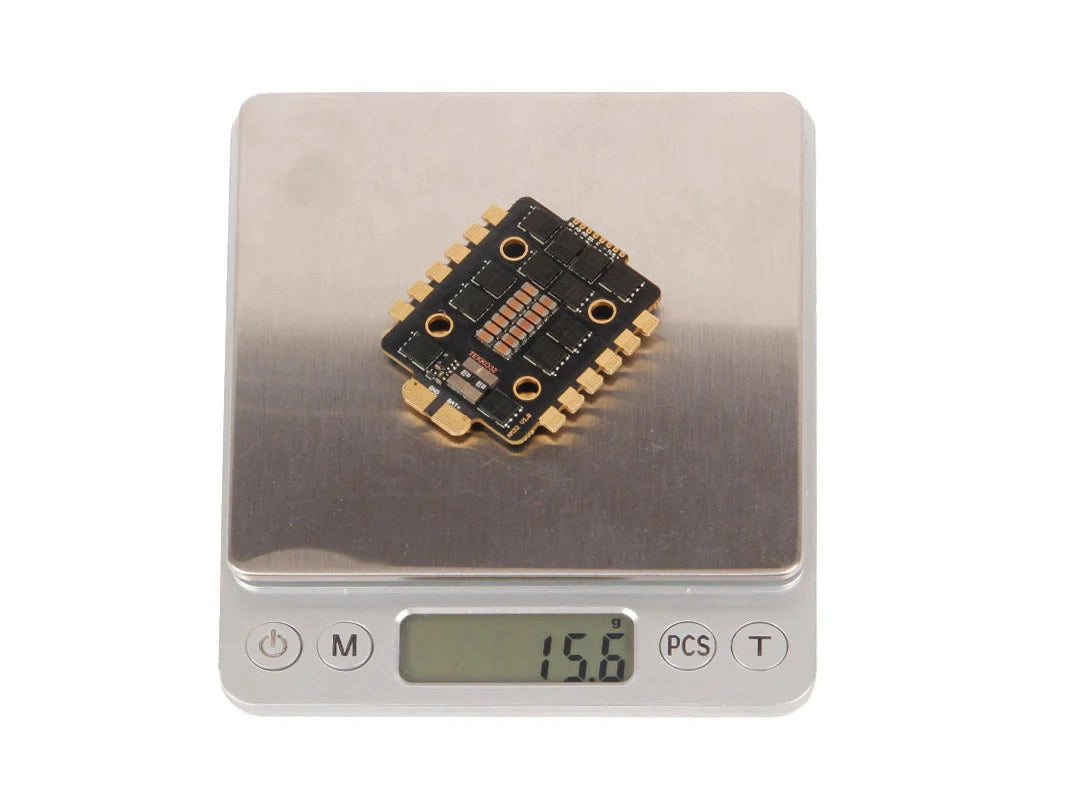

  • Dimensions: 46.6x38x6mm / Weight: 15.6g
Holybro Tekko32 F4 Mini 4-In-1 50A AM32 ESC
Holybro Tekko32 F4 Mini 4-In-1 50A AM32 ESC

Includes:
1x Holybro Tekko32 F4 Mini 4-In-1 50A AM32 ESC
4x M2 Anti-Vibration Silicone Grommet Insert
4x M3 Anti-Vibration Silicone Grommet Insert
1x Electrolytic capacitor: 1000uF 35v
1x 8pin to 8pin 1mm pitch 65mm cable
1x 8pin to 8pin 1mm spacing 25mm cable
