Since its launch, the GOKU GN745 AIO has stood as Flywoo's top-tier AIO product, earning widespread acclaim from Betaflight, INAV, and Ardupilot enthusiasts. Now, we're excited to introduce the latest upgrade in this series—the V3 version! The V3 boasts a new ESC two-in-one drive solution, enhancing the continuous current capacity to 45A and improving the overcurrent protection capability of the motor pads, resulting in a more powerful overall performance. Furthermore, the V3 version significantly advances in terms of convenience, featuring 4 new direct-plug Uart ports and adopting a Type-C interface for easier connectivity.
Features:
- Performance: Utilizes STM32F745 chip, AM32 firmware, and MPU6000 gyro, with dual BEC, barometer, black box, supports 7 serial ports and I2C.
- Plug & Play: Compatible with O3 air unit, GPS, Camera, Analog VTX, and Receiver without the need for soldering.
- Type-C Interface: Features a Type-C interface for improved compatibility and easier connection.
- Compatibility: Supports BF, INAV, and Ardupilot platforms.
- New Layout: New ESC two-in-one drive solution, with a continuous current up to 45A.
- Better Protection: Larger motor pad area with improved overcurrent protection.
Specifications:
- Model: Goku GN745 45A AIO 32bit V3
- MCU: STM32F745 32-bit, 216MHz
- Continuous Current: 45A-50A Max
- BEC: 5V 2A
- ESC: 32bit
- Flash: 1MB
- Black Box: 16MB
- Barometer: SPL06
- Gyro: MPU6000
- Motor: M1-M4 Output I2C: SCL/SDA
- UARTs: 1,2,3,4,5,6,7
- USB Connector: Type-C
- OSD: AT7456E
- Mounting: 25.5*25.5*3mm
- Dimensions: 33.5*33.5mm

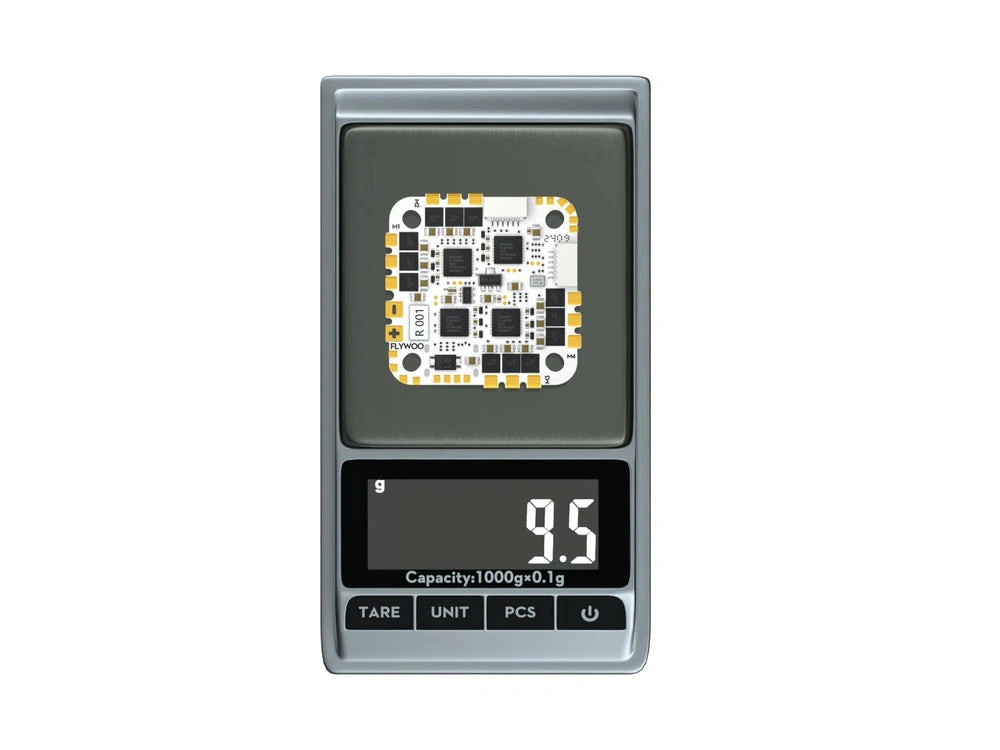

- Weight: 9.4g
- Betaflight Firmware: FLYWOOF745AIO
- iNav Firmware: FLYWOOF745
- Ardupilot Firmware: FLYWOOF745
- ESC Firmware: AM32 GOKU_F4A32_PRO
- Input Voltage: 2-6S LiPo
![Flywoo Goku GN745 V3 45A AM32 AIO](https://cdn.shopify.com/s/files/1/1349/4827/files/P1-2.webp?v=1720627727)
![Flywoo Goku GN745 V3 45A AM32 AIO](https://cdn.shopify.com/s/files/1/1349/4827/files/P2-4.webp?v=1720627743)
![Flywoo Goku GN745 V3 45A AM32 AIO](https://cdn.shopify.com/s/files/1/1349/4827/files/20240617-150102.webp?v=1720627756)
![Flywoo Goku GN745 V3 45A AM32 AIO](https://cdn.shopify.com/s/files/1/1349/4827/files/lay-out-en-1.webp?v=1720627775)
![Flywoo Goku GN745 V3 45A AM32 AIO](https://cdn.shopify.com/s/files/1/1349/4827/files/7-10_1800x_78be0e5f-1023-4244-8cab-c34c87b2faa9.webp?v=1720627933)
![Flywoo Goku GN745 V3 45A AM32 AIO](https://cdn.shopify.com/s/files/1/1349/4827/files/P5.webp?v=1720627788)
Includes:
1x Flywoo Goku GN745 V3 45A AM32 AIO
1x Unicon UPL Capacitor 25V 470uF
4x M2x6.6 Shock-Absorbing Ball
4x M2 Rubber Ring
1x XT30 Power Cable
1x DJI O3 Connection Cable
1x VTX & Camera Connection Cable
1x Receiver Connection Cable
1x GPS Compass Connection Cable
