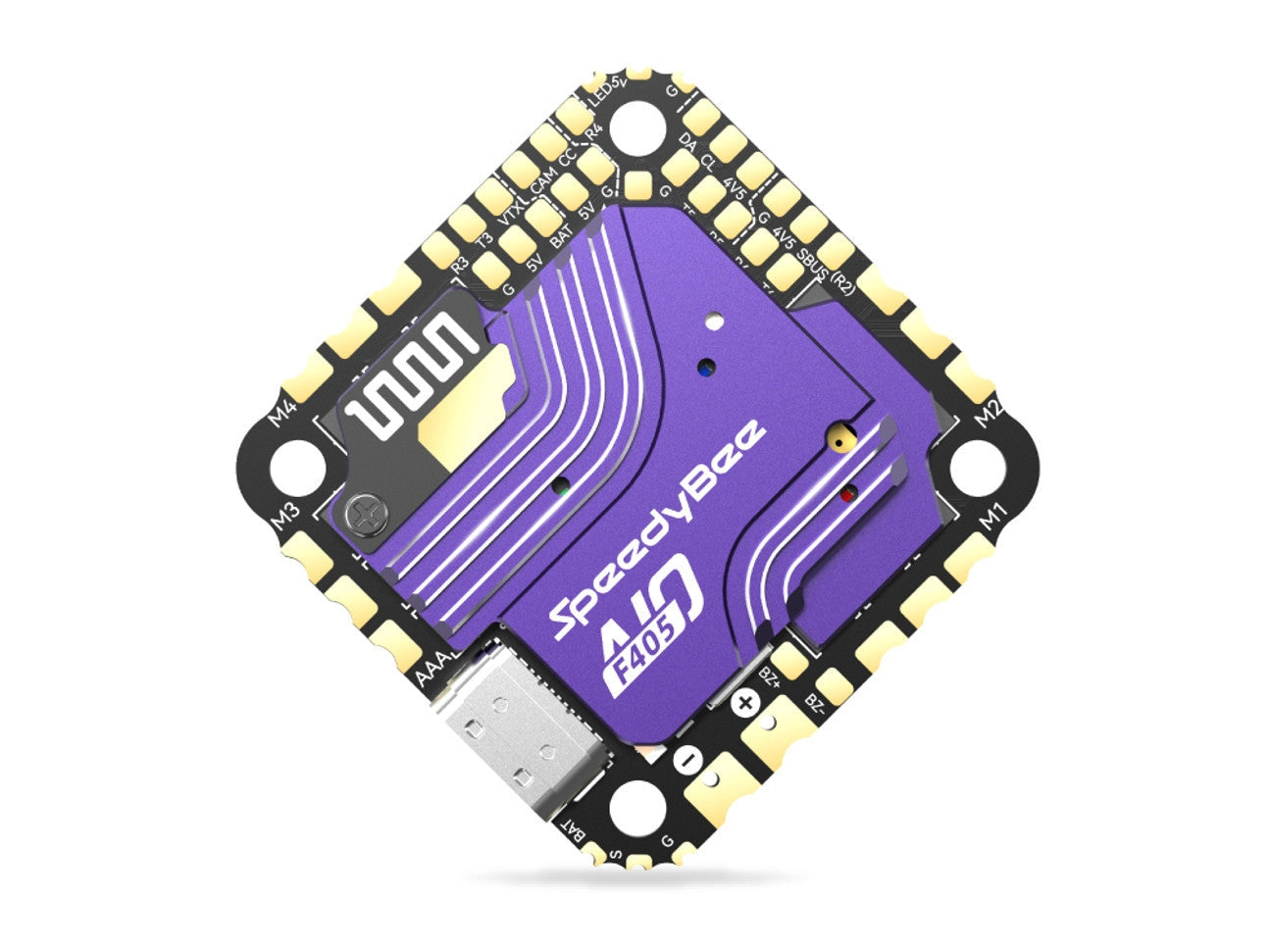

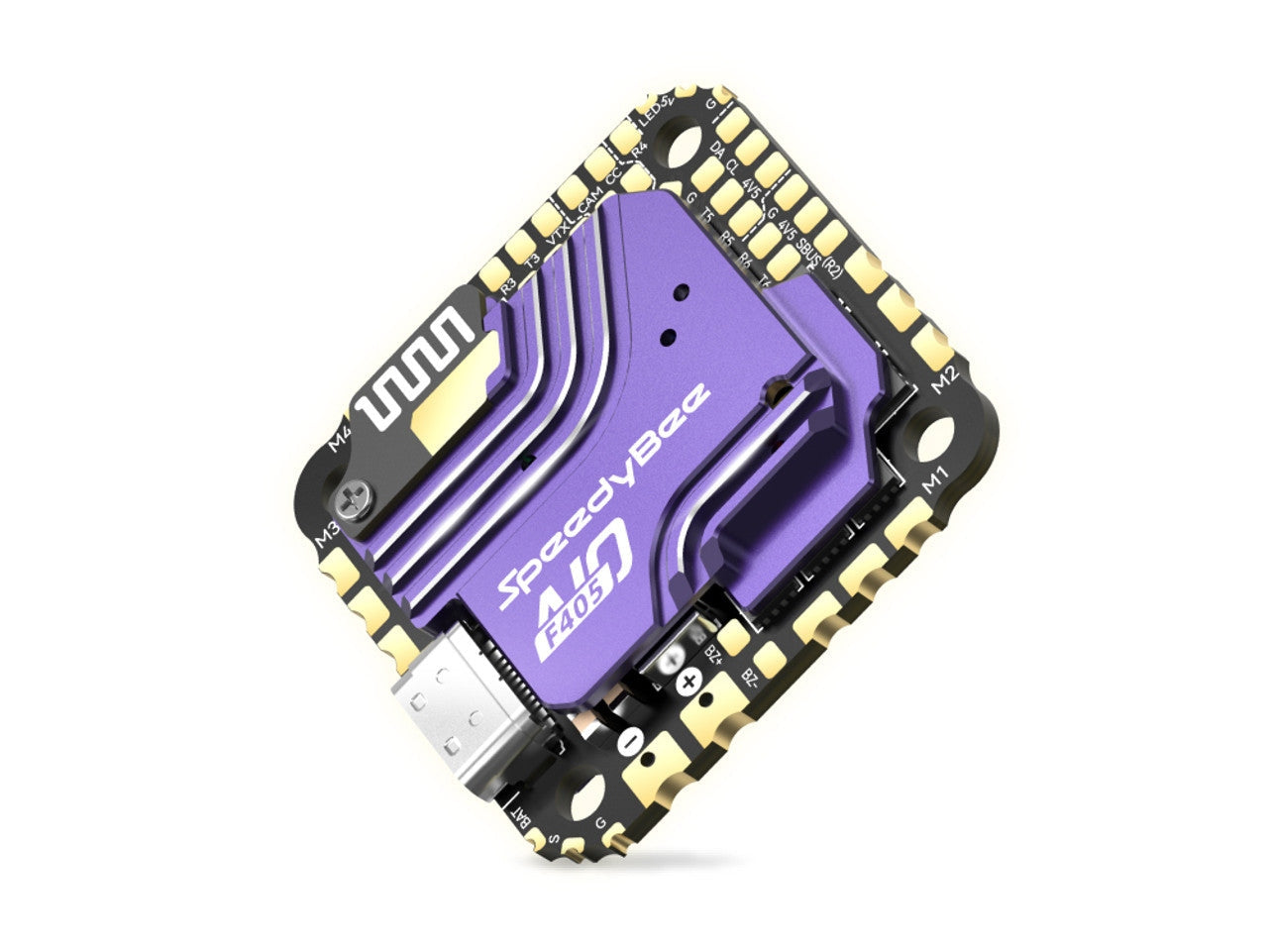

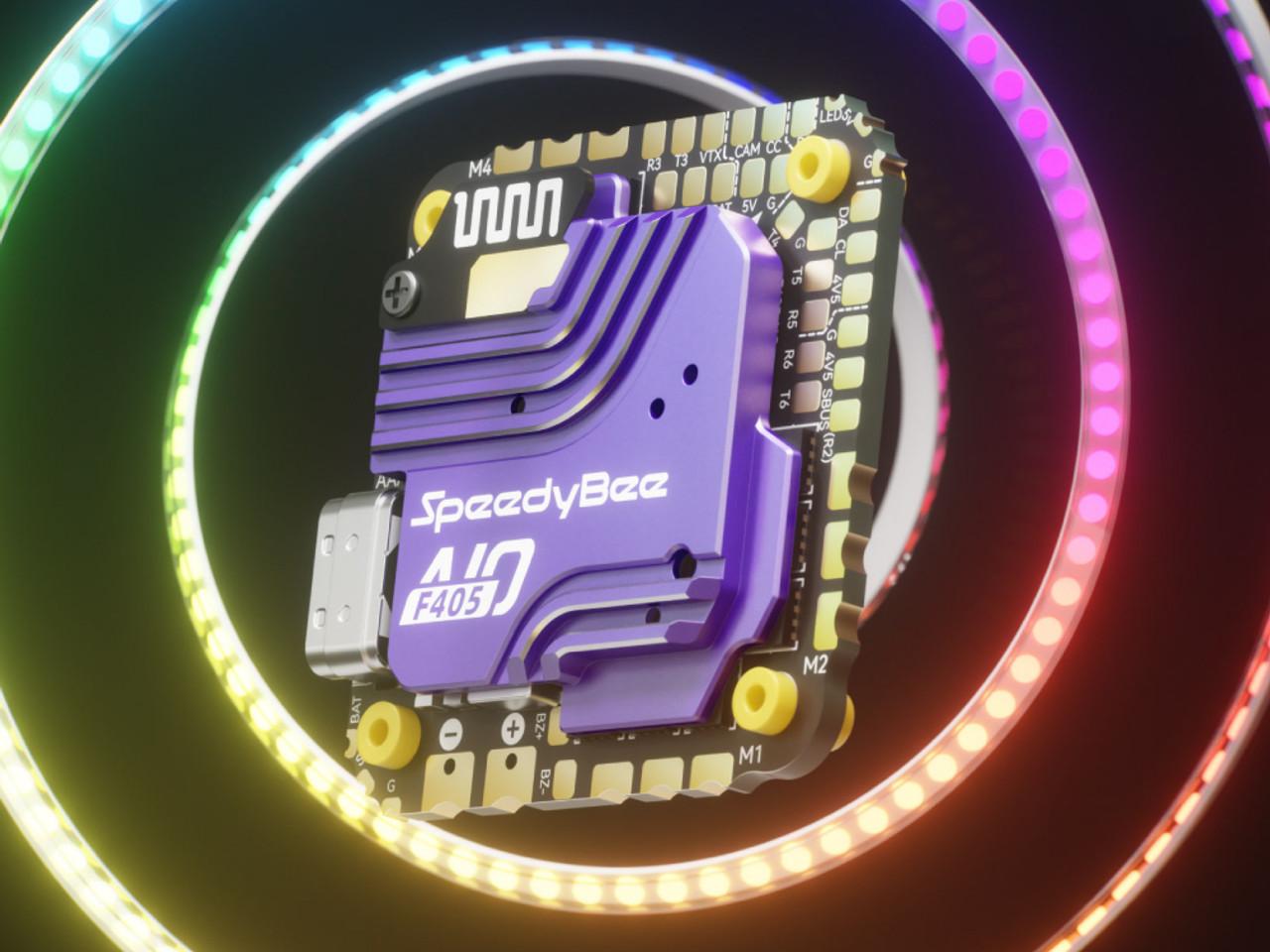

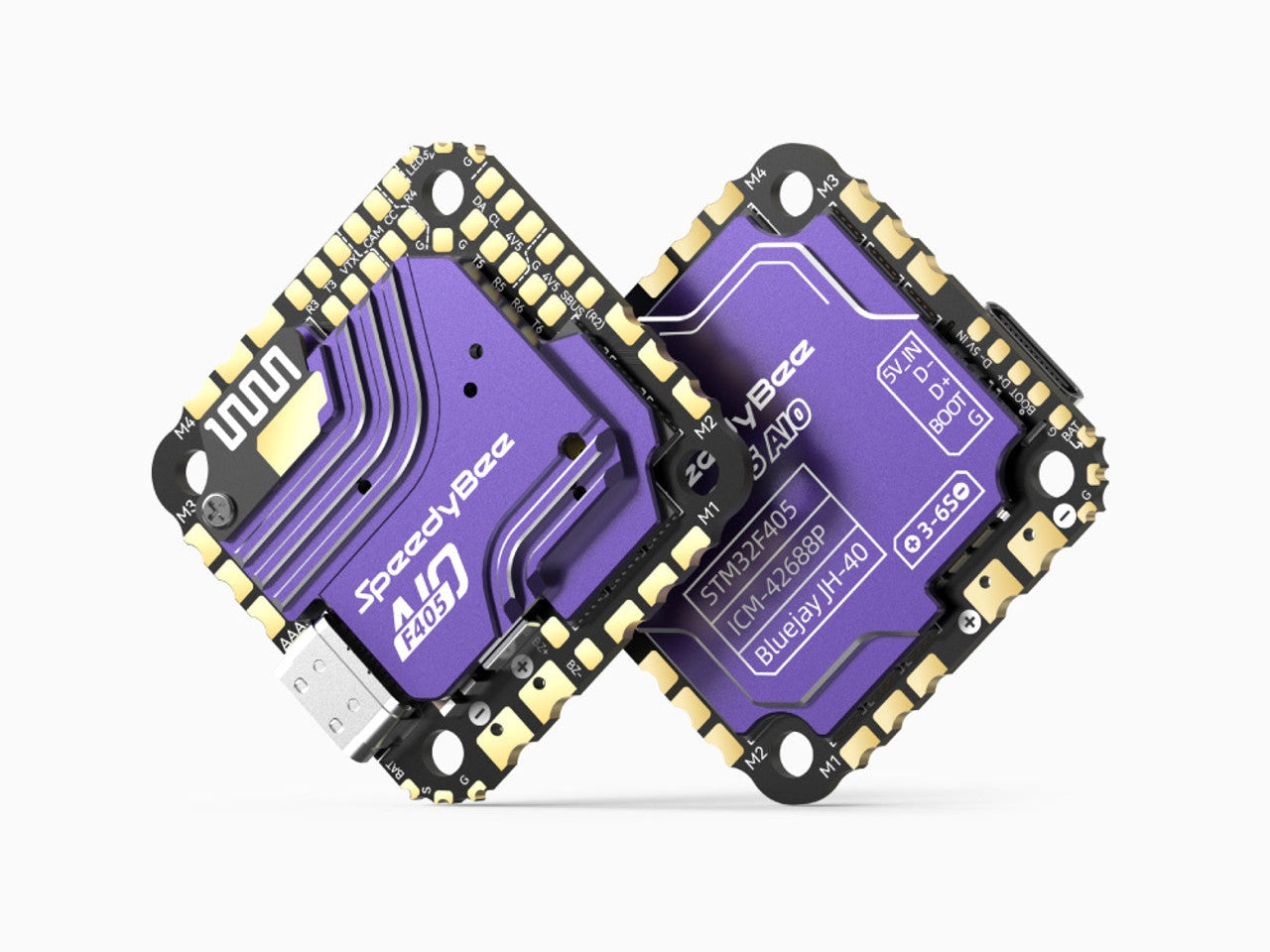

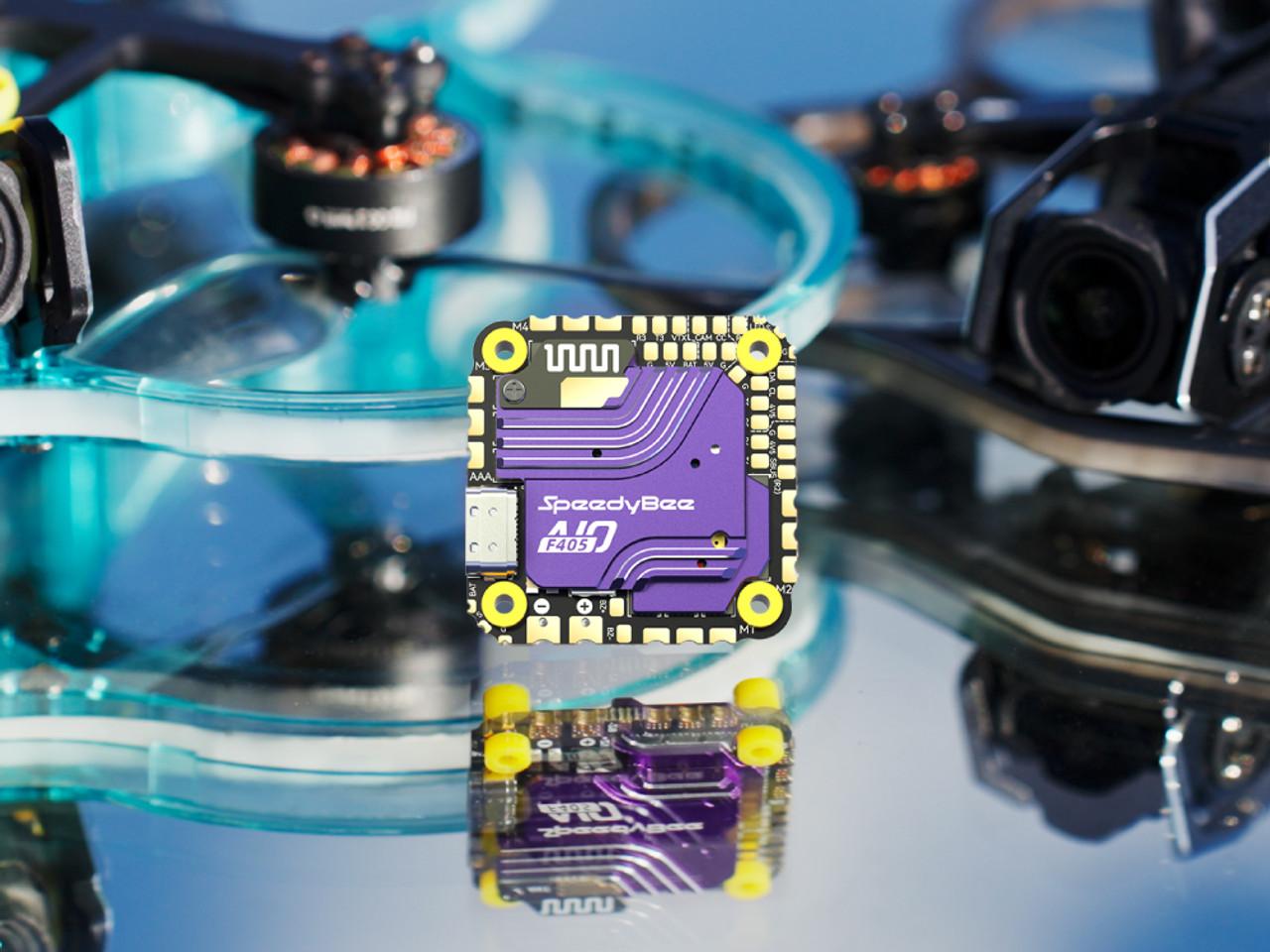

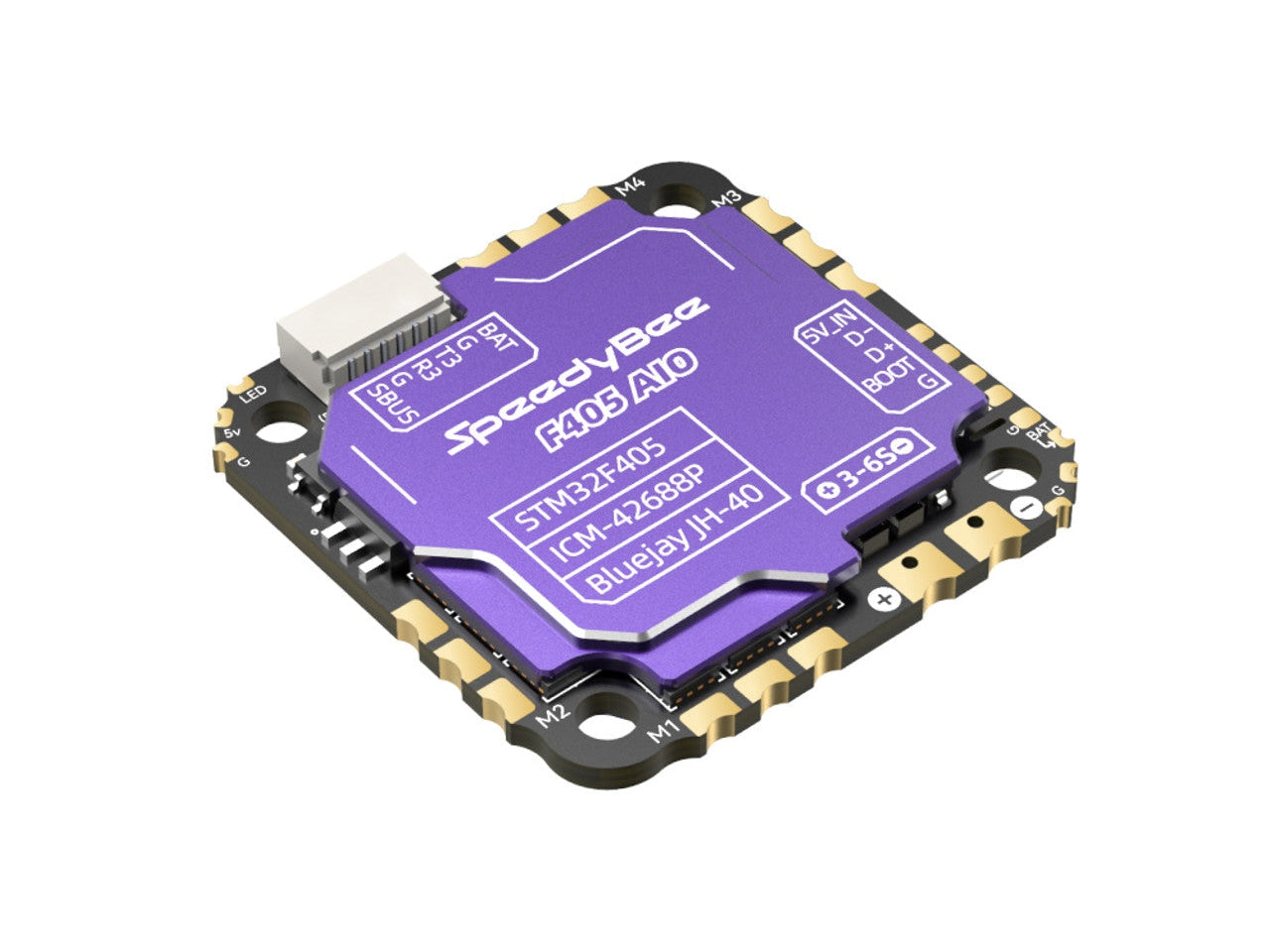

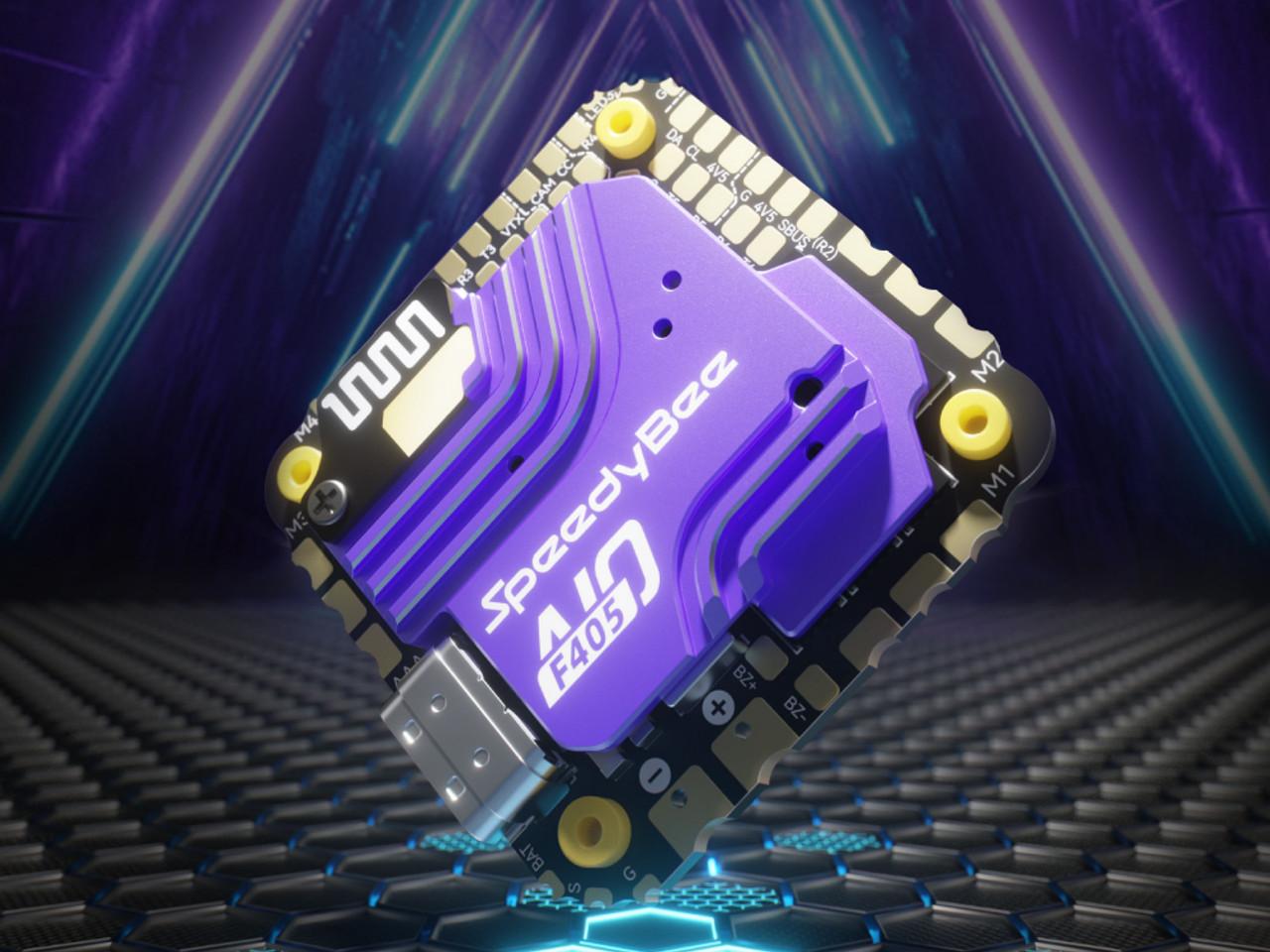

Speedy Bee F405 AIO 40A Bluejay 25.5x25.5 3-6S Flight Controller

  • $55.99
    Unit price per


+ -

As an all-in-one flight controller, the Speedy Bee F405 AIO offers smooth performance with a well-thought-out layout, making it a valuable addition to any drone. With its 40A 4-In-1 ESC and powerful Bluetooth capabilities, this compact controller is designed for aerial enthusiasts looking for the convenience of wireless configuration, with unmatched value in a finely crafted 25.5x25.5 3-6S flight controller.

Specifications:

FLIGHT CONTROLLER

  • Product Name: SpeedyBee F405 AIO
  • MCU: STM32F405
  • Gyro: ICM-42688P
  • USB Port Type: Type-C
  • Barometer: SPA06-003
  • OSD: Supported
  • Bluetooth BLE: Supported, Bluetooth speed enhancement - 2.0
  • Wireless Flight Controller Firmware Update: Supported (no need to press physical BOOT button)
  • Wireless Download & BlackBox Analysis: Not supported
  • DJI Air Unit Connection Method: Supports both 6-pin direct insertion and soldering
  • 6-pin DJI Sky Port Direct Insertion: Supported, can directly connect to DJI O3/RunCam Link/Caddx Vista without changing wire order
  • Flash (for BlackBox): 8MB
  • Betaflight CC Pads (Camera Parameter Adjustment): Supported
  • Input Voltage: 3S-6S LiPo battery
  • 4V5 Output: Two 4V5 outputs; total current 1A
  • 5V BEC Output: Three 5V outputs; total current 2A; shared with 4V5
  • 9V BEC Output: None (comes with an external BEC module, can switch between 5V and 9V); total current output 2A
  • MOTOR: M1-M4
  • UART: 4 full-function serial ports (UART3, UART4, UART5, UART6 + SBUS[R2])
  • ESC Telemetry: None
  • I2C: Supported
  • LED Pads: Supported, used to control WS2812 LED lights
  • Buzzer Pads: Supported, BZ+ and BZ- pads
  • BOOT Button: Supported, press and hold the BOOT button while powering on to enter DFU mode for firmware recovery
  • RSSI Pads: None
  • SmartPort: Not supported
  • Supported Flight Controller Firmware: BetaFlight (Default), INAV
  • Firmware Target Name: SPEEDYBEE F405AIO
  • Mounting: 25.5 x 25.5mm, 3mm hole diameter
  • Dimensions: 33.0mm (length) x 33.0mm (width) x 8mm (height)
  • Weight: 13.6g (including CNC)

ESC

  • Input Voltage: 3-6S LiPo battery
  • Continuous Current: 40A
  • Burst Current: 45A (10s)
  • ESC Protocol: Supports DSHOT600/300; other protocols may cause severe errors, please use with caution.
  • Output Voltage: VBAT battery voltage (used to power the flight controller)
  • Current Sensor: Supported (Scale = 254, Offset = 0)
  • Firmware: Bluejay JH-40 48kHz
Speedy Bee F405 AIO 40A Bluejay 25.5x25.5 3-6S Flight Controller
Speedy Bee F405 AIO 40A Bluejay 25.5x25.5 3-6S Flight Controller
Speedy Bee F405 AIO 40A Bluejay 25.5x25.5 3-6S Flight Controller

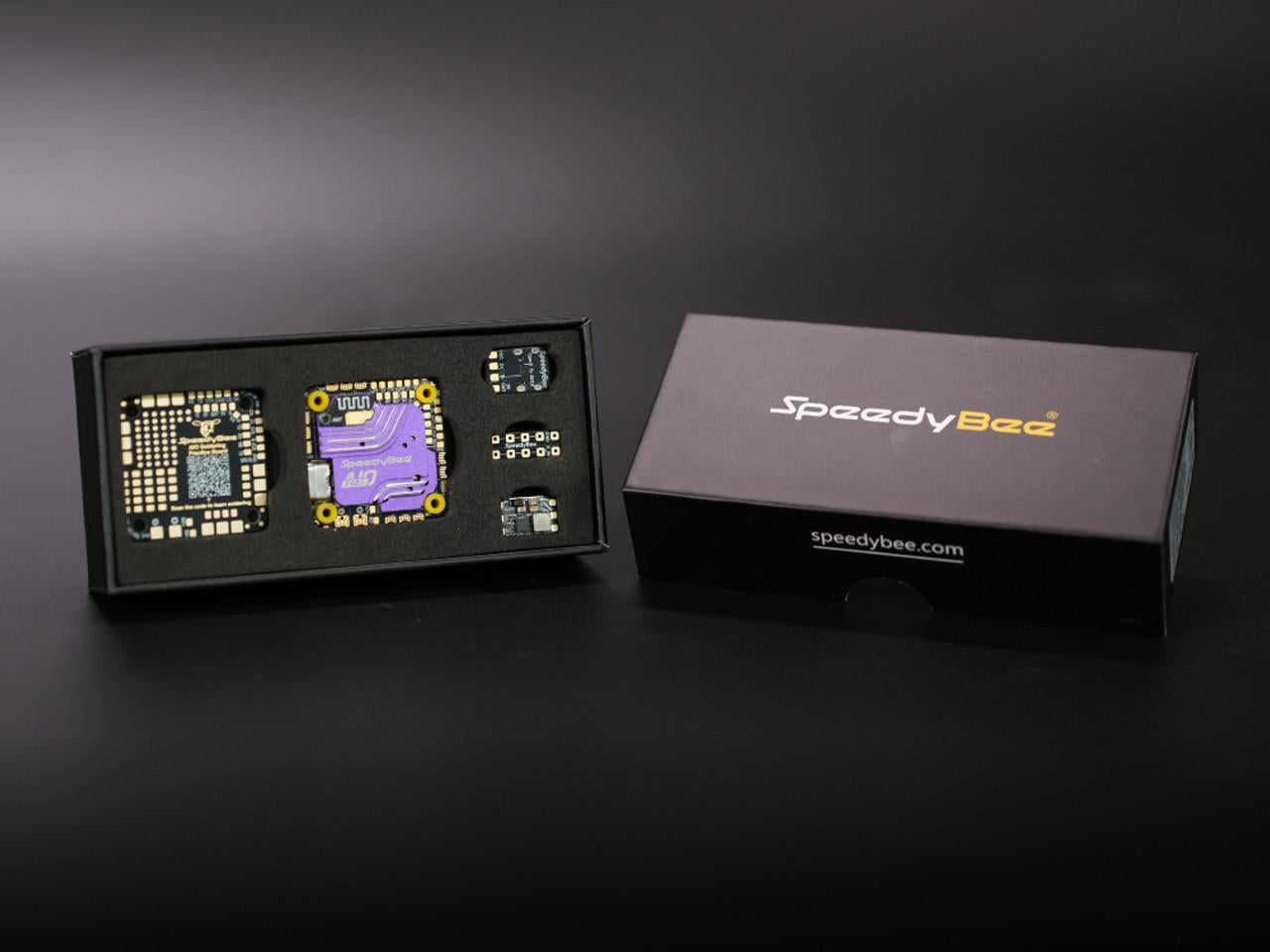

Includes:
1x Speedy Bee F405 AIO 40A Bluejay 25.5x25.5 3-6S Flight Controller
1x Solder Practice Board
1x DJI AIr unit Cable
1x 35V 470uF Electrolytic Capacitor
4x M2 Silicone Dampening Sleeves
5x M2 Silicone Dampening Rings
5x M2 Nylon Hex Nuts
1x XT30 Power Cable
1x USB Type-C Extension Module
1x Power Extension Board
1x BEC
1x Heat Shrink Tube For USB Extension Module
1x 4-pin Cable for USB Extension Module
1x User Manual
1x Screw/bolt Set
1x Transparent Heat Shrink For External BEC
1x 6-pin Cable for External BEC
2x Capacitor Heat Shrink Tube

Download Manual
