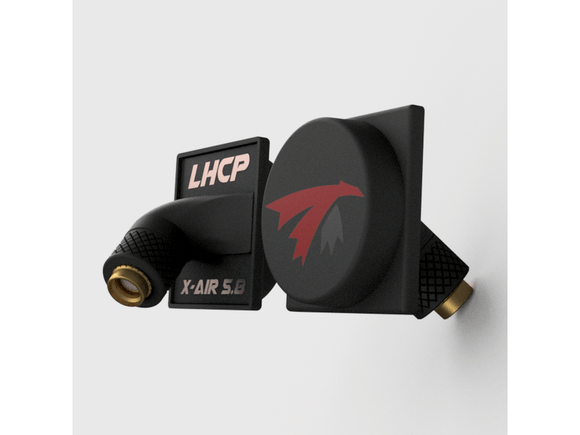

TrueRC X-Air 5.8 MK II Pair for Walksnail Goggles X
Our high-efficiency X-AIR MK II with direct angled RP-SMA connectors for installing on the Walksnail Avatar HD Goggles X. Simply screw on the custom angled RP-SMA connectors on the top ports of the goggles. Great 10dBic gain combined with a healthy flyable beam width of 120deg, yields an amazing flight experience in a compact and low-profile package. Fill the remaining ports with singularity stubby and you got the antennas full house.
Custom made RP-SMA Connectors, direct fit for your goggles
As with all other components of X-AIR antennas, the custom RP-SMA connector is made to fit your Walksnail avatar HD goggles X without adapter and ensure they end up facing forward with little uptilt for good measure.
Features:
- Circularly Polarized
- Mount direct on Walksnail Avatar HD Goggles X
- Compact low-profile design, easy to store and transport
- High 10 dBic for long-range and signal penetration
- Large SWR and axial ratio bandwidth, work even out of the 5.8GHz band
- Super wide 120 degree beam
- Custom RP-SMA connectors with compound angle to have the X-air antenna face forward
Specifications:
- Bandwidth: 5.1GHz-6.7GHz
- Gain: 9.5-10.5 dBic
- Polarization: RHCP or LHCP
- Beam-width*: 120deg
- Beam-width @-3dB**: 68deg.
- Connector: RP-SMA male
- Dimension: 34 x 34 x 34mm
*Coverage of individual antenna where reception is at least equivalent to an omni.
**Coverage of individual antenna where at least 70% of the max range is obtained.
Includes:
2x TrueRC X-Air 5.8 MK II antennas for Walksnail Goggles X
