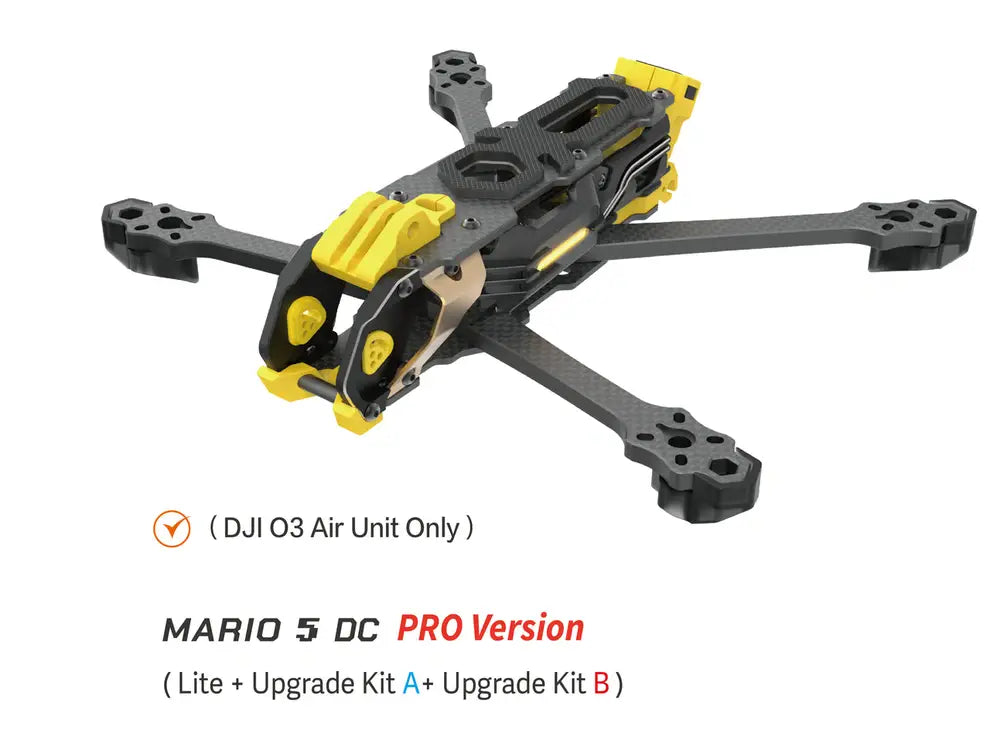

Speedy Bee Mario 5 DC Pro Frame Kit
The Speedy Bee Mario 5 XDC Pro Frame Kit boasts high-quality and durable T300 4K carbon fiber and aviation aluminum alloy construction. With a well-thought-out and purposeful design, this frame offers superior performance and reliability for your drone, with a place for all your gear. Upgrade your flying experience with this advanced kit.
The DC is a "Dead Cat" configuration with front arms angled back, allowing for flight without the propellers in view of the camera.
The Pro kit includes all parts from the Lite and Advanced versions plus DJI O3 cooling side plates, stack side plates, RGB light strips, and motor wire protectors.
Specifications:
- Wheelbase: 227mm
- Weight: 170 +/- 5g (3D printed parts included)
- Top Plate Thickness: 2.5mm
- Middle Plate Thickness: 2.0mm
- Bottom Plate Thickness: 2.5mm
- Arm Thickness: 6mm
- Camera Mounting Screw: 7mm
- 3D Printed Parts: Yellow TPU
- Battery Anti-Slip Pad: Silicone 3mm
- Motor Hole Position: Φ8mm
- Propeller Size: Max 5.1 Inch
- Motor Mounting: 16-19mm
- FC Mounting: 30.5x30.5(M3)
- VTX Mounting: 20x20(M2) / 25.5x25.5(M2)
- Head Material: Aviation Aluminum Alloy
- Aluminum Column Material: 7075 D5*23mm/D46*22mm
- Internal Mounting Height: 23-31mm
- Receiver Installation Space: 25*13*6mm
- Suitable Capacitor Size: Φ10mm*20mm
- GPS Installation Size: 18*18*7mm
Includes:
1x Speedy Bee Mario 5 DC Pro Frame Kit
