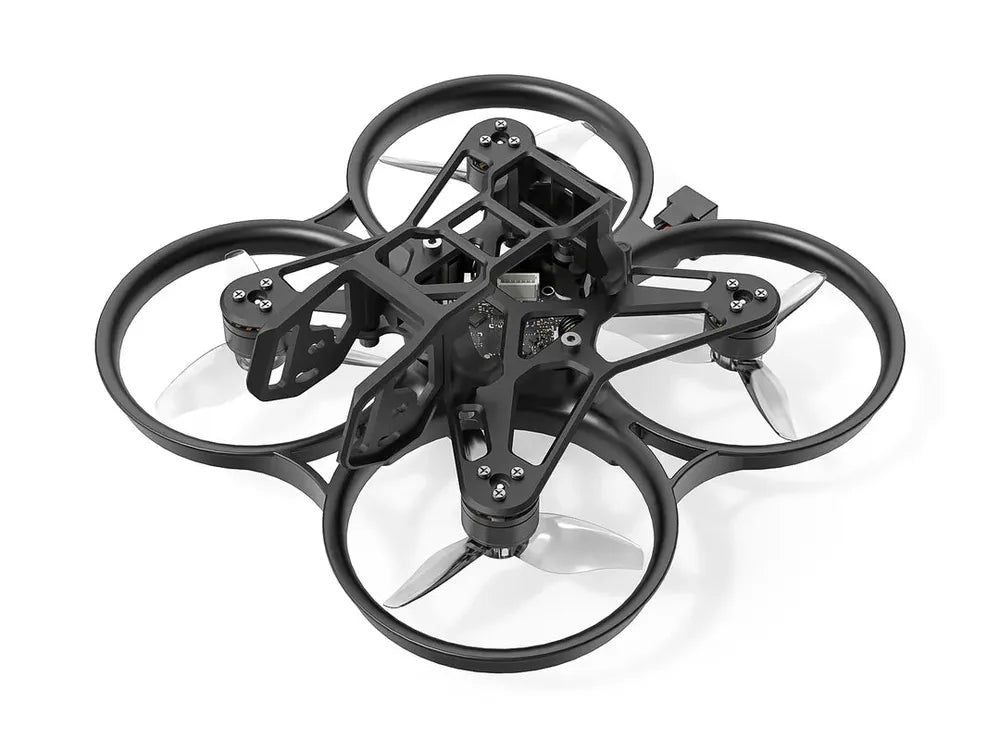

BetaFPV Pavo20 Pocket Brushless Whoop Quadcopter Kit

Pavo20 Pocket, lightweight at only 95g, is designed to meet the needs of DJI aerial photographers to enter FPV. This package comes with essential components and features a pocket-sized design for convenient portability. The Auxiliary Flight Function with N/S/M and Turtle Mode is perfect for the beginners' initial exploration. Designed with the DJI O3 in mind, it shares the same frame structure and vibration solution as the Pavo20, ensuring flight stability and reliability. Say goodbye to jelly and hello to professional-grade, cinematic results. With 2S power, enjoy flight times of up to 4.5 minutes. Grab your pocket and be ready to capture every funny moment on the go. It's time to fully unleash beginners' cinewhoop creativity.

Note: The DJI O3 HD Digital VTX is not included in all packages, please buy it separately at the DJI store.

Features:

• Pavo20 Pocket, lightweight only 95g, Its pocket-sized design ensures convenient portability. And this all-inclusive package comes equipped with essential components excluding the DJI O3 Air Unit, enabling you to capture every funny moment on the go.

• Auxiliary Flight Function that stable hover at a desired altitude and position minimizes drifting and wobbling, providing stable flight for an enjoyable and safe experience. And offers N/S/M 3 flight modes, no burden to fly away. By engaging in Turtle Mode, the drone can flip over automatically after the crash to resume flying.
• Meet the needs of DJI aerial photographers to enter FPV. Equipped with DJI O3 Air Unit and ELRS system to achieve high definition, low latency, and long-distance shooting, fully release beginner's cinewhoop creativity.

• The Pavo20 frame structure and vibration solution are used on the Pavo20 Pocket to ensure flight stability and reliability. Saying goodbye to jelly, and hello to professional-grade, cinematic results.
• With a customized 1103 | 11000KV Motor and durable GF 2023 3-blade Props, it offers an optimal Thrust-to-Weight Ratio for agile and precise maneuvers. The higher capacity BT3.0 550mAh 2S Battery provides flight times of up to 4.5 min, ensuring exceptional smooth aerial footage.
• These bullet points are essential for a cinewhoop to carry the camera, achieve maneuverability for creative shots, capture smooth and high-quality aerial footage, and ensure safety during flight. Elevate DJI aerial photographers' first-time cinewhoop flying experience to new heights with it.

Specifications:

• Wheelbase:  90mm
• Motor:  1103 | 11000KV Custom Brushless motor

• Flight Controller:  Independent R&D FC
• Receiver:  ExpressLRS 2.4GHz
• Stable Hover:  Supported
• Fixed Point Sensor:  Optical Flow Meter & Laser & Barometer
• Horizontal accuracy ±0.2m, vertical positioning accuracy ±0.3m
• Supported VTX:  DJI O3 Air Unit ( NOT INCLUDED )

• Battery Connector:  BT3.0
• Recommended Battery:  BT3.0 550mAh 2S Battery
• Propellers:  GF 2023 3-Blade Props
• Flight Time (8.7V~6.8V):  4.5min

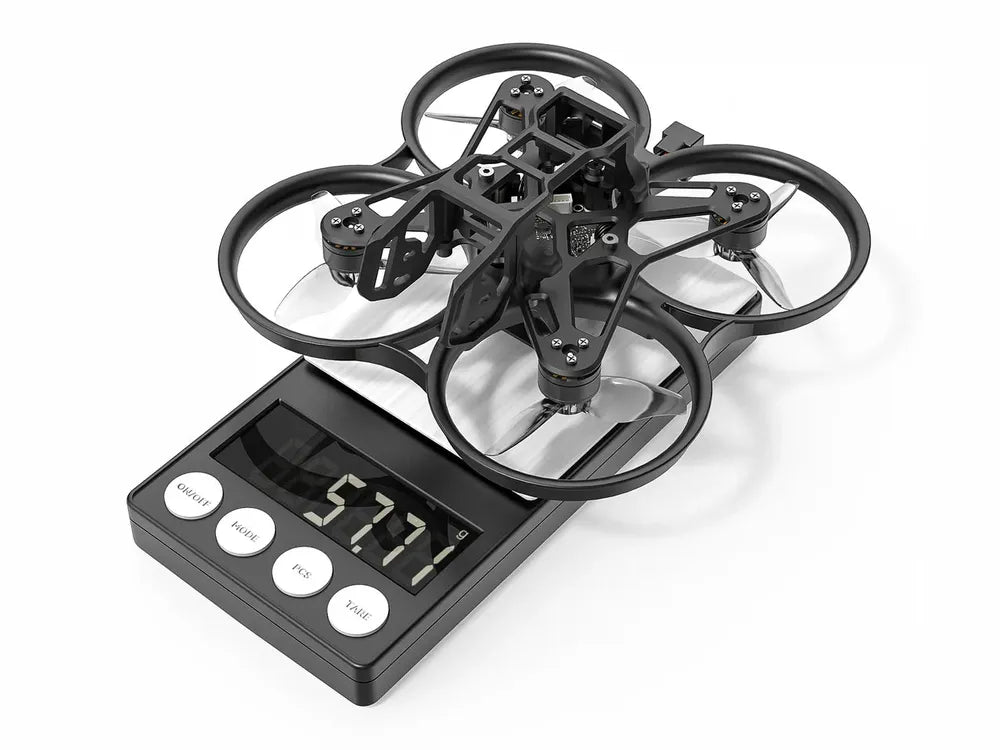

• Weight (No battery):  95g
• Flight Mode:  N/S/T (M Mode is not yet available)
• Flight Range (No Occlusion):  500m

Note: 1. The DJI O3 HD Digital VTX is not included in all packages, please buy it separately at the DJI store.  2. The M Mode of the first batch Pavo20 Pocket is temporally not activated for use.

Auxiliary Flight Function:

Auxiliary Flight Function, the beginner-friendly FPV function for DJI pilots. Pavo20 Pocket features a highly precise built-in barometer that detects height, ensuring the drone stays at the desired altitude and position. Stable hover minimizes drifting and wobbling, providing stable flight for an enjoyable and safe experience. Effortlessly maintain an optimal position in the sky, allowing you to focus on capturing the perfect shot. Whether filming landscapes or action-packed sequences, Pavo20 Pocket guarantees smooth and visually captivating frames. Enjoy unparalleled control and stability throughout your entire filming session.

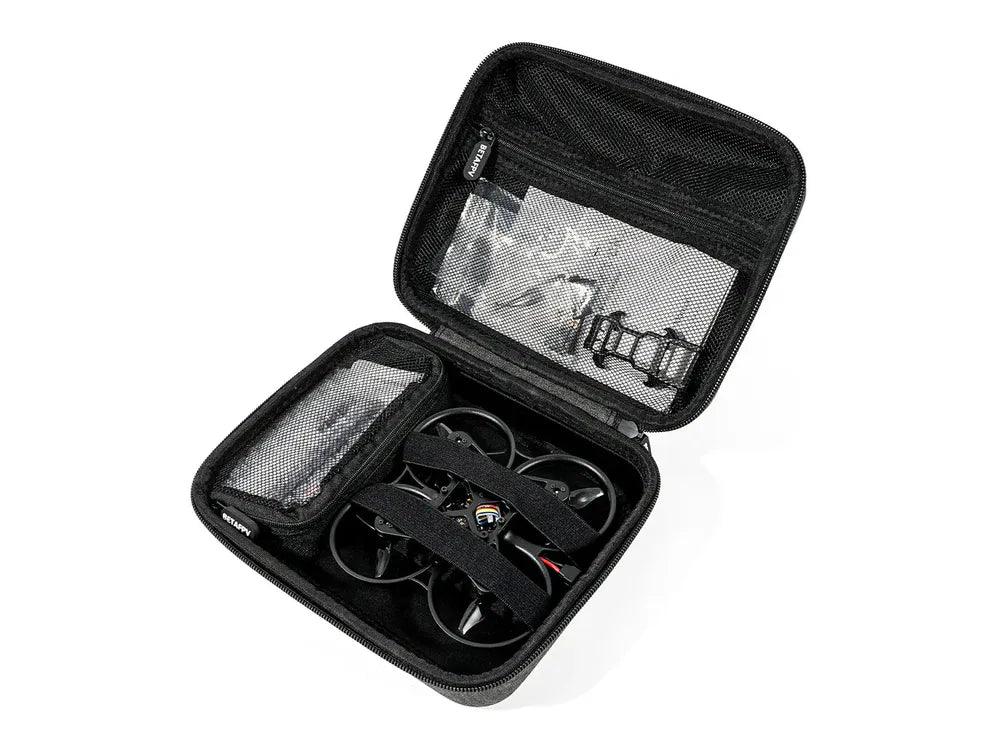

All-In-One Portable Storage Bag:

The Pavo20 Pocket is tailor-made for cinewhoop beginners. Its pocket-sized design ensures convenient portability. And this package comes equipped with essential components excluding the DJI O3 Air Unit, saving time and effort on additional purchases and assembly. This kit features a 15W Type-C charger supporting PD 3.0 fast-charging protocol, fully charging 1 battery in around 25 mins. It includes two 550mAh batteries for a total flight time of around 9 mins, allowing you to seize every opportunity to savor the joy of flight and capture funny moments wherever you go. With the Pavo20 Pocket, the cinewhoop flight knows no limit.

HD Digital VTX System:

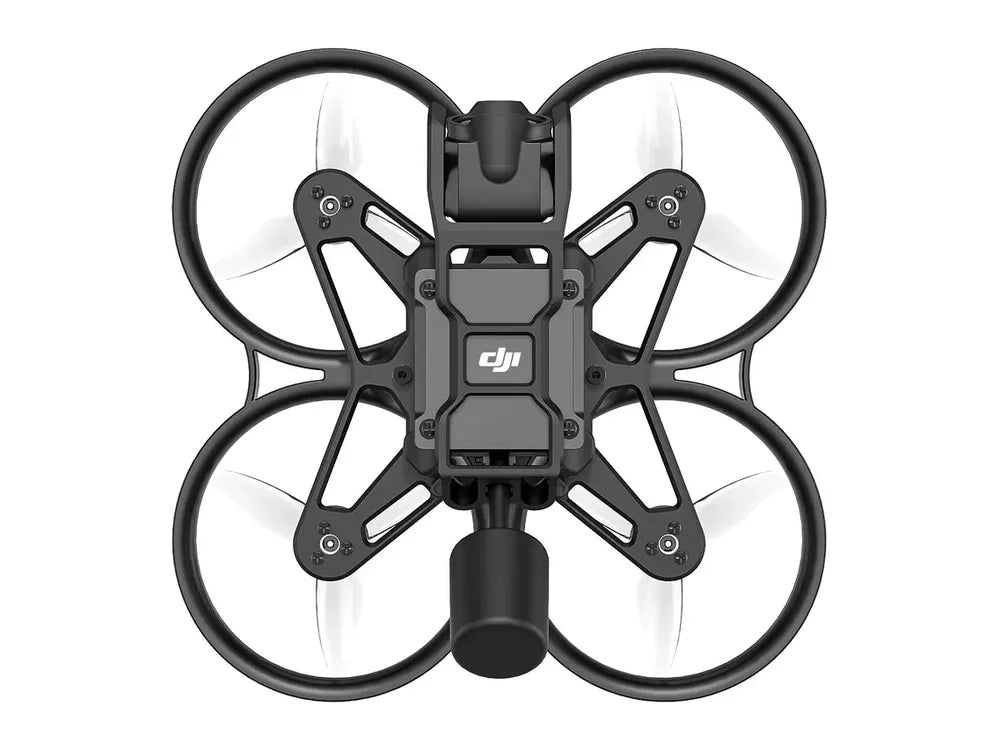

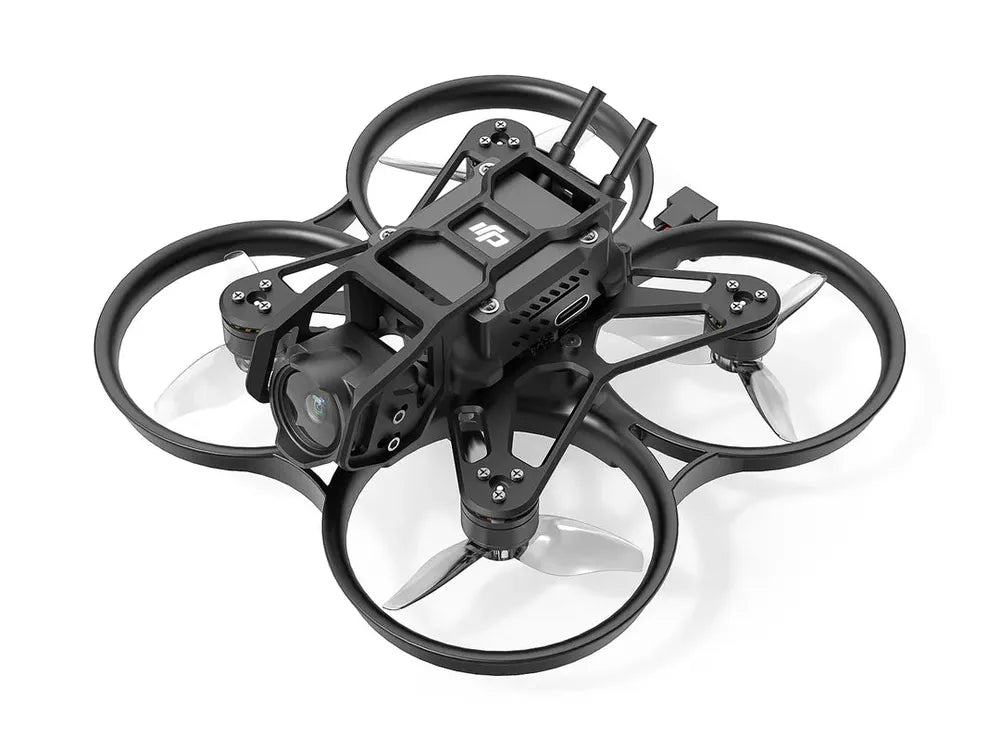

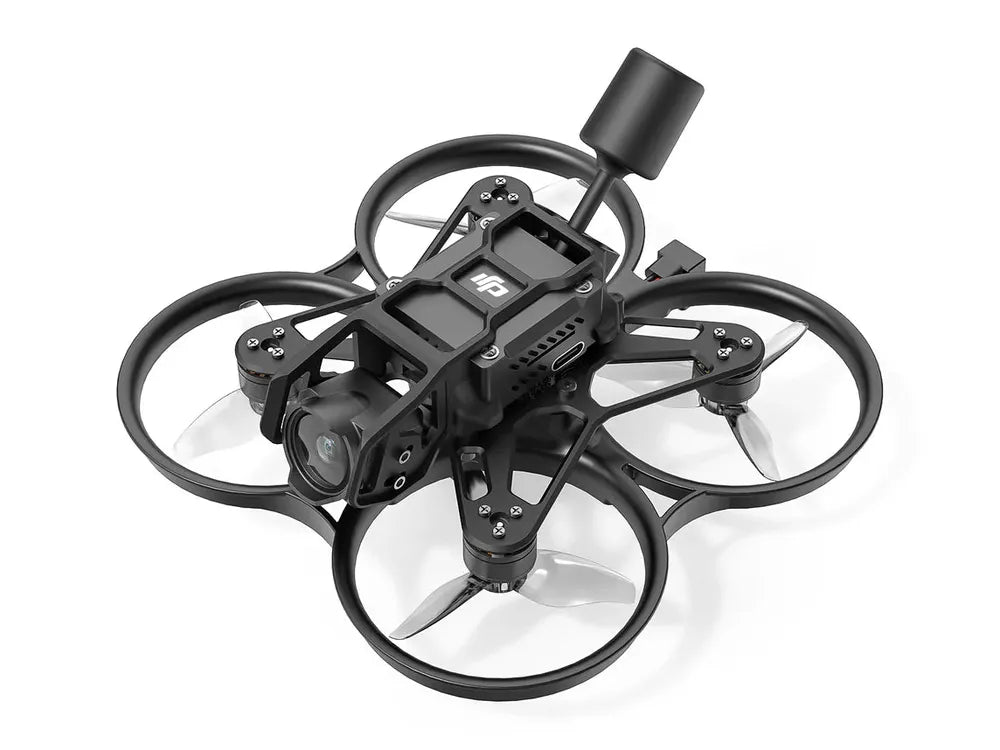

Meet the needs of DJI aerial photographers to enter FPV. Equipped with DJI O3 Air Unit digital image transmission and ELRS system to achieve high definition, low latency, and long-distance shooting. It supports a max video transmission quality of 1080p/100fps, giving you richer image details. Pavo20 Pocket empowers you to enjoy distant scenery and fully release beginner's cinewhoop aerial creativity with stunning visual effects.

Precise Security Structure For HD VTX:

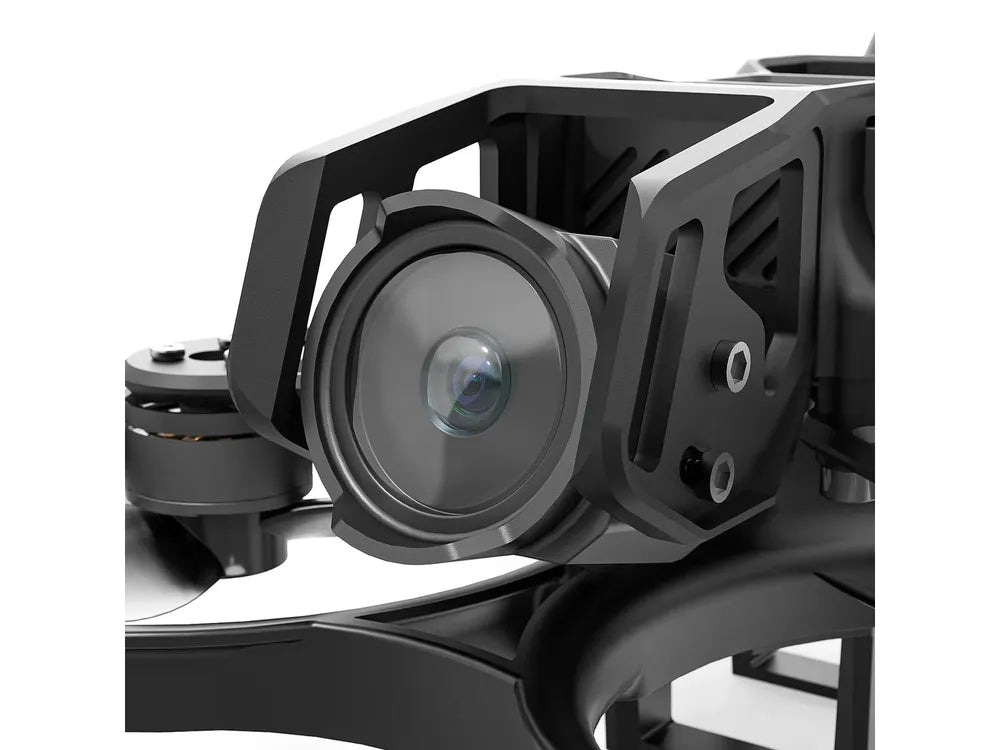

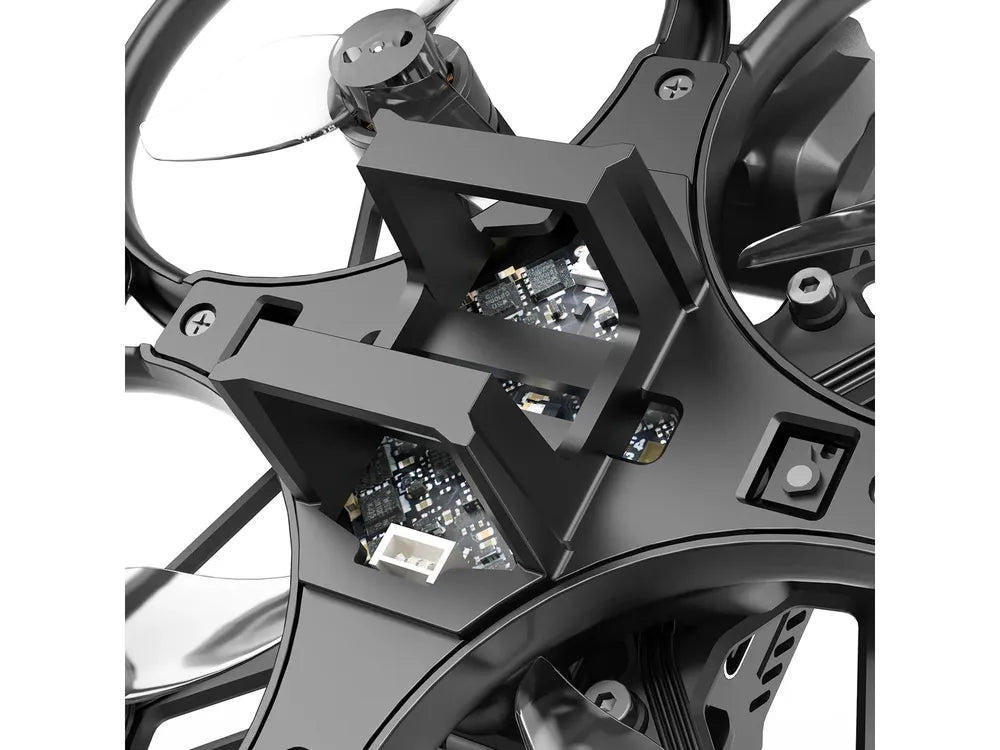

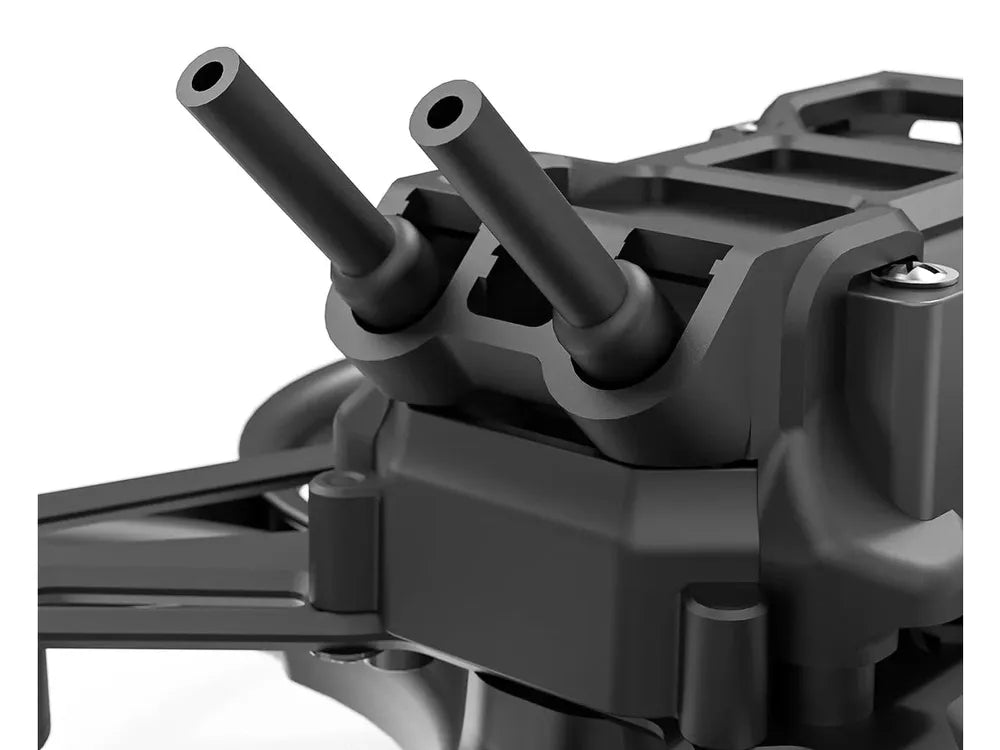

The camera side panel and 4-point fixation hole design effectively ensure lens protection and easy ND filter installation, eliminating any concerns about angle deviation after intense flights. Like the Pavo20, the DJI O3 unit is mounted on a carbon fiber plate with rubber dampers, which filters out low-frequency vibrations, saying goodbye to jelly, and hello to professional-grade, cinematic results. Modular Protection Design is closed to reduce the involvement of foreign matter. The unique triangle arm-reinforced structure enhances durability and reliability. Insert copper nut design, employing an integrated injection molding technique, eliminating the hassle of adjusting screw tightness and streamlining the installation.

Powerful Propulsion System:

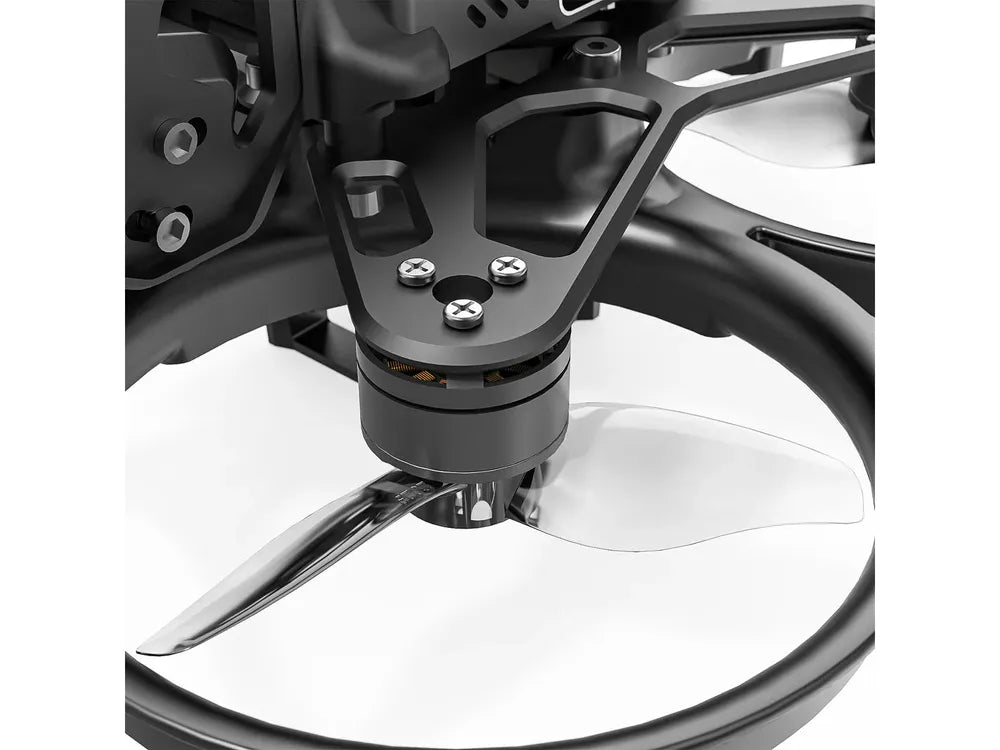

A powerful propulsion system is essential for a cinewhoop to carry the camera, achieve maneuverability for creative shots, capture smooth and high-quality aerial footage, and ensure safety during flight. With a customized 1103 | 11000KV Motor and durable GF 2023 3-blade Props, it offers an optimal Thrust-to-Weight Ratio for agile and precise maneuvers. 2S power which is an advanced choice for cinewhoop beginners, the higher capacity BT3.0 550mAh 2S Battery provides flight times of up to 4.5 min, ensuring exceptional smooth aerial footage. Elevate beginners' first-time flying experience to new heights with this powerful propulsion system.

Various Modes, Accessible to All

The Pavo20 Pocket offers N/S/M 3 flight modes, no burden to fly away. By engaging in Turtle Mode, the drone can flip over automatically after the crash to resume flying. Whether you're a seasoned FPV pilot or a beginner, the Pavo20 Pocket enables confident flying from the start. It offers a range of flight modes to suit different skill levels:

• Normal Mode: provides moderate flight speed and intelligent Auxiliary Flight Function. Ideal for beginners to achieve smooth movements and video capture.
• Sport Mode: enhances agility and speed, improving drone responsiveness to control stick movements, a preliminary attempt to capture a powerful sense of motion shots.
• Manual Mode: offers the highest maneuverability, ideal for experienced FPV pilots engaged in racing and freestyle flying, requiring proficient control skills to avoid collisions.

ND Filter for DJI O3 Camera:

BETAFPV ND Filter for DJI O3 Camera including UV, CPL, ND8, ND16, ND32, is tailored for the Pavo20 pocket, Pavo25 V2, Pavo20, and Pavo Pico Brushless Whoop Quadcopter. These lightweight filters are made of crafted from high-quality aluminum and optical glass. Equipping the appropriate filter can help you capture real colors with stunning highlight and shadow details no matter indoor and outdoor scenarios. Vertically press to mount without detaching the glass lens cover or affecting waterproof performance. Ensuring optimal image clarity while lens-safe. Experience more creative freedom for your shots with BETAFPV ND Filters.
