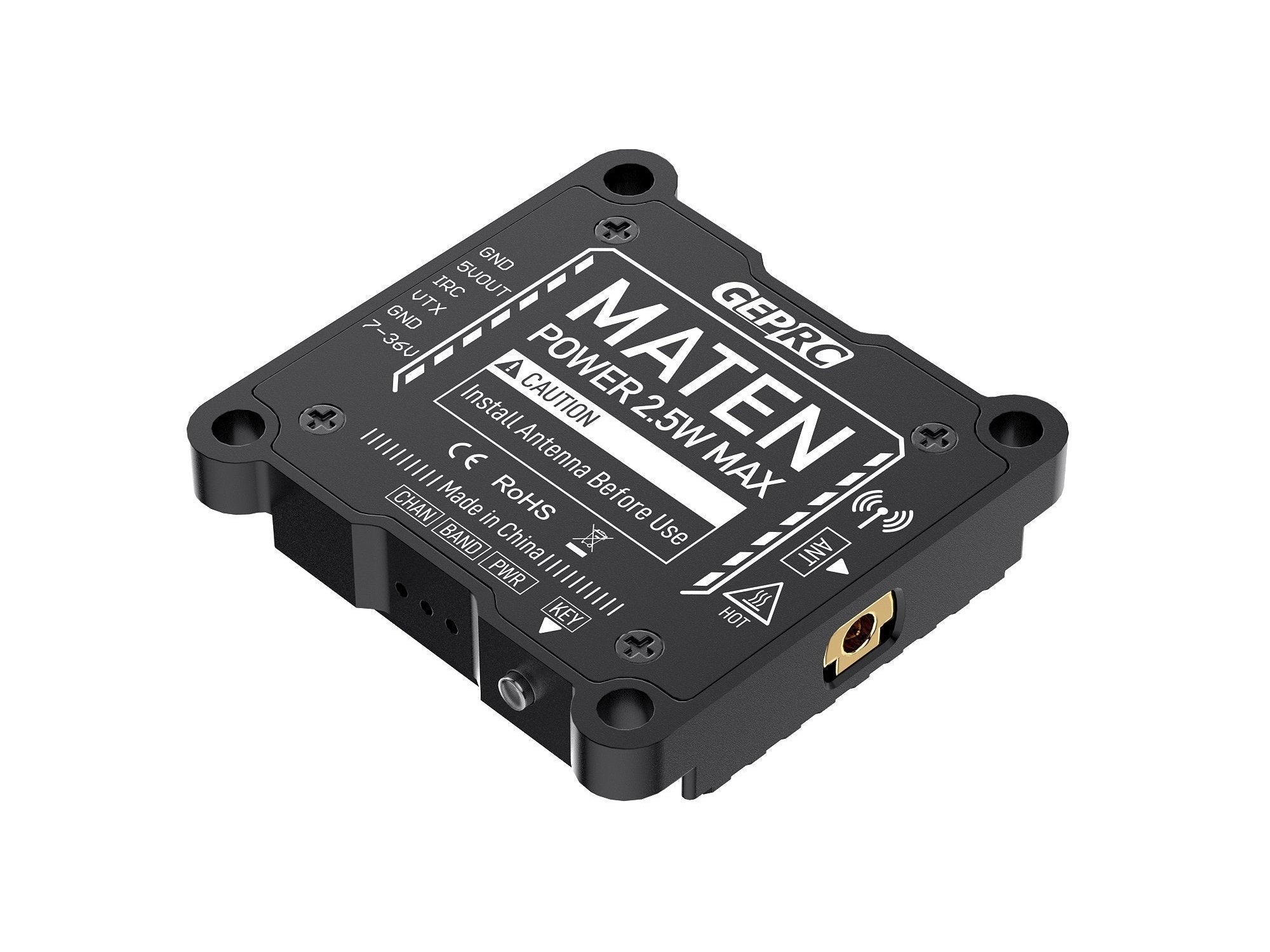

GEPRC Maten 5.8GHz 2.5W Video Transmitter

  • $52.99
    Unit price per


+ -

The Maten 5.8GHz 2.5W Video Transmitter, a high-power image transmitter newly developed by the GEPRC team, has been officially released. Its performance is very powerful, with 5 adjustable power levels and a maximum power of up to 2500mW. The transmission signal is very stable, and the penetration ability is excellent.

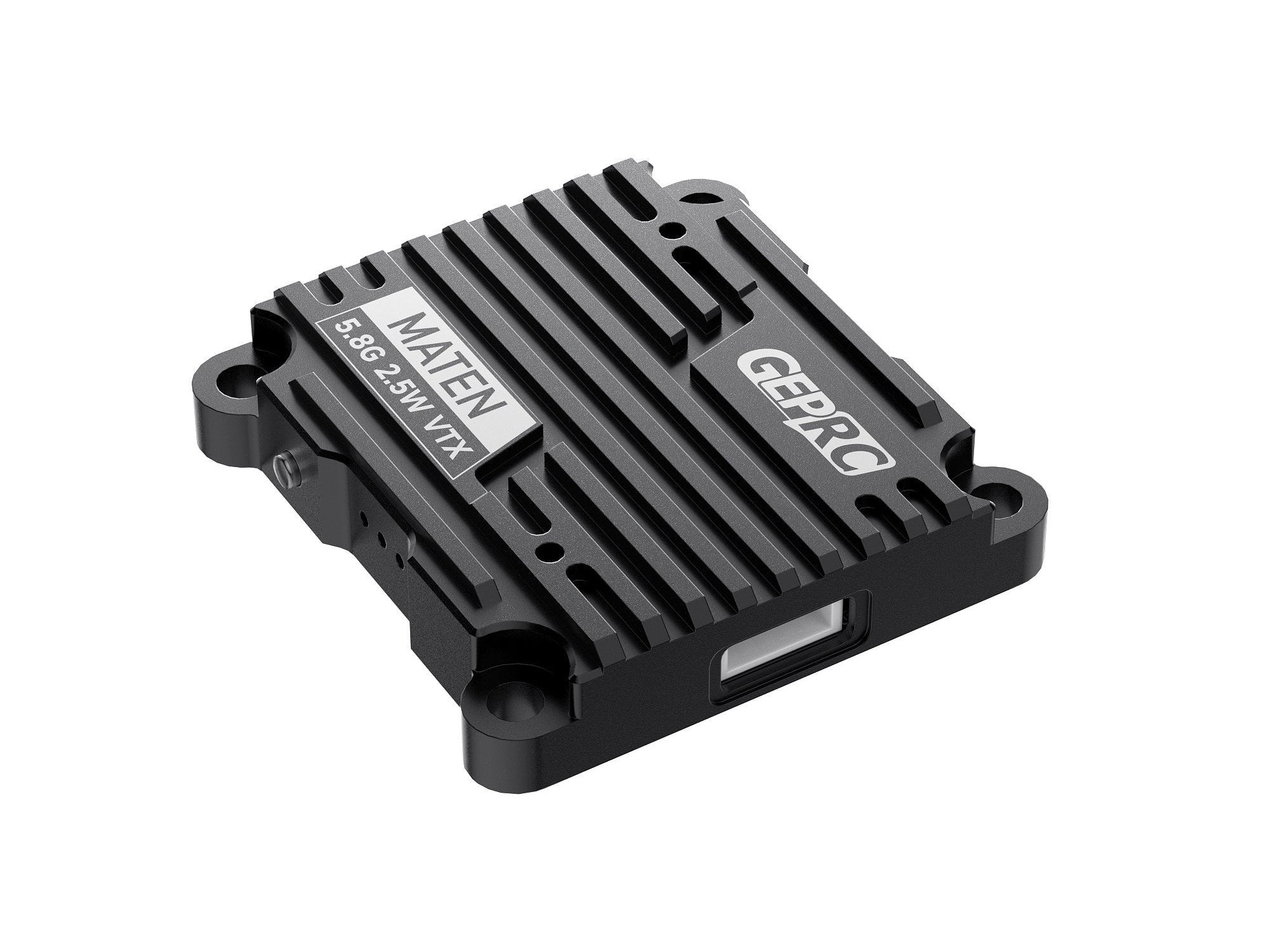

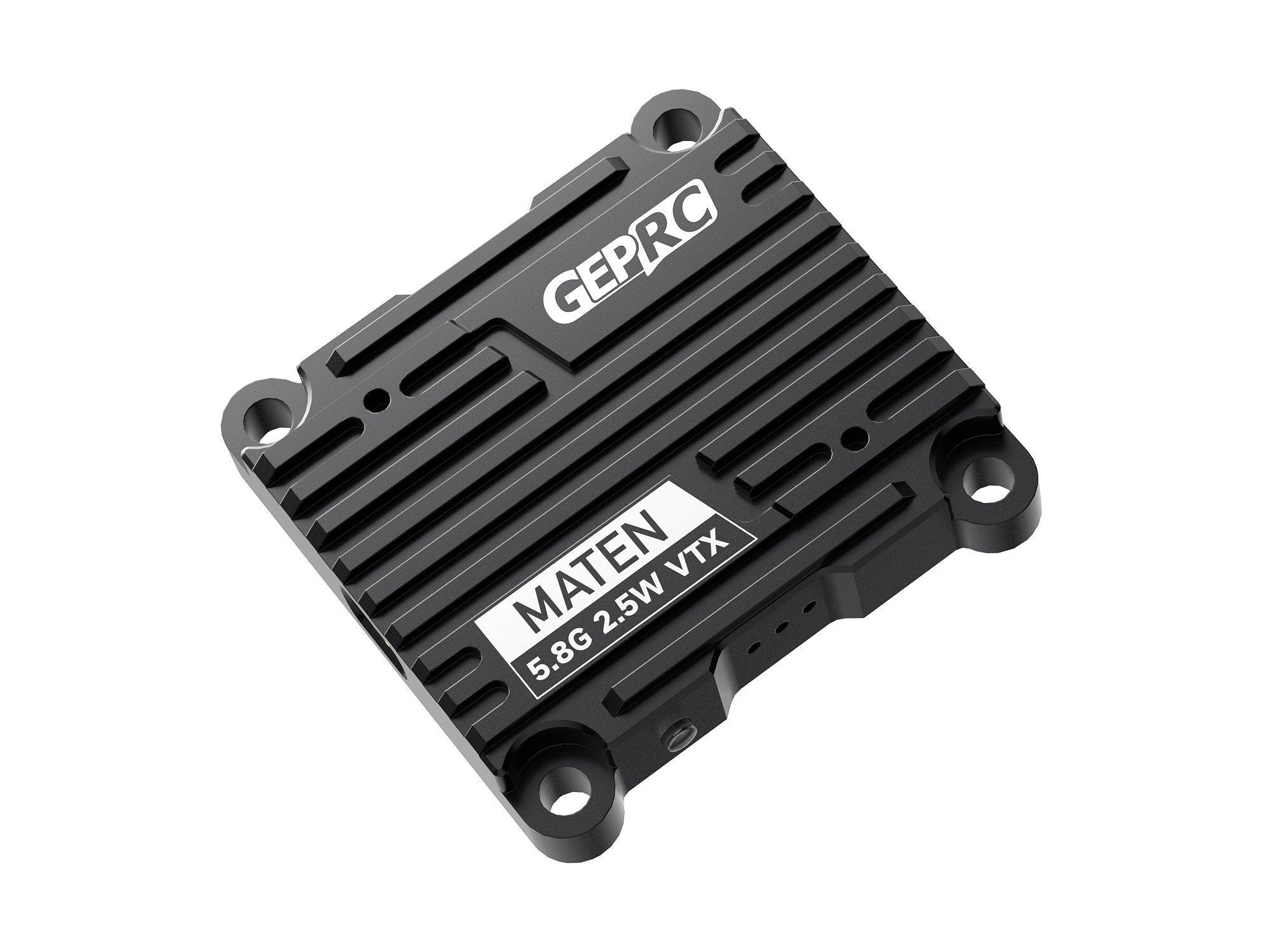

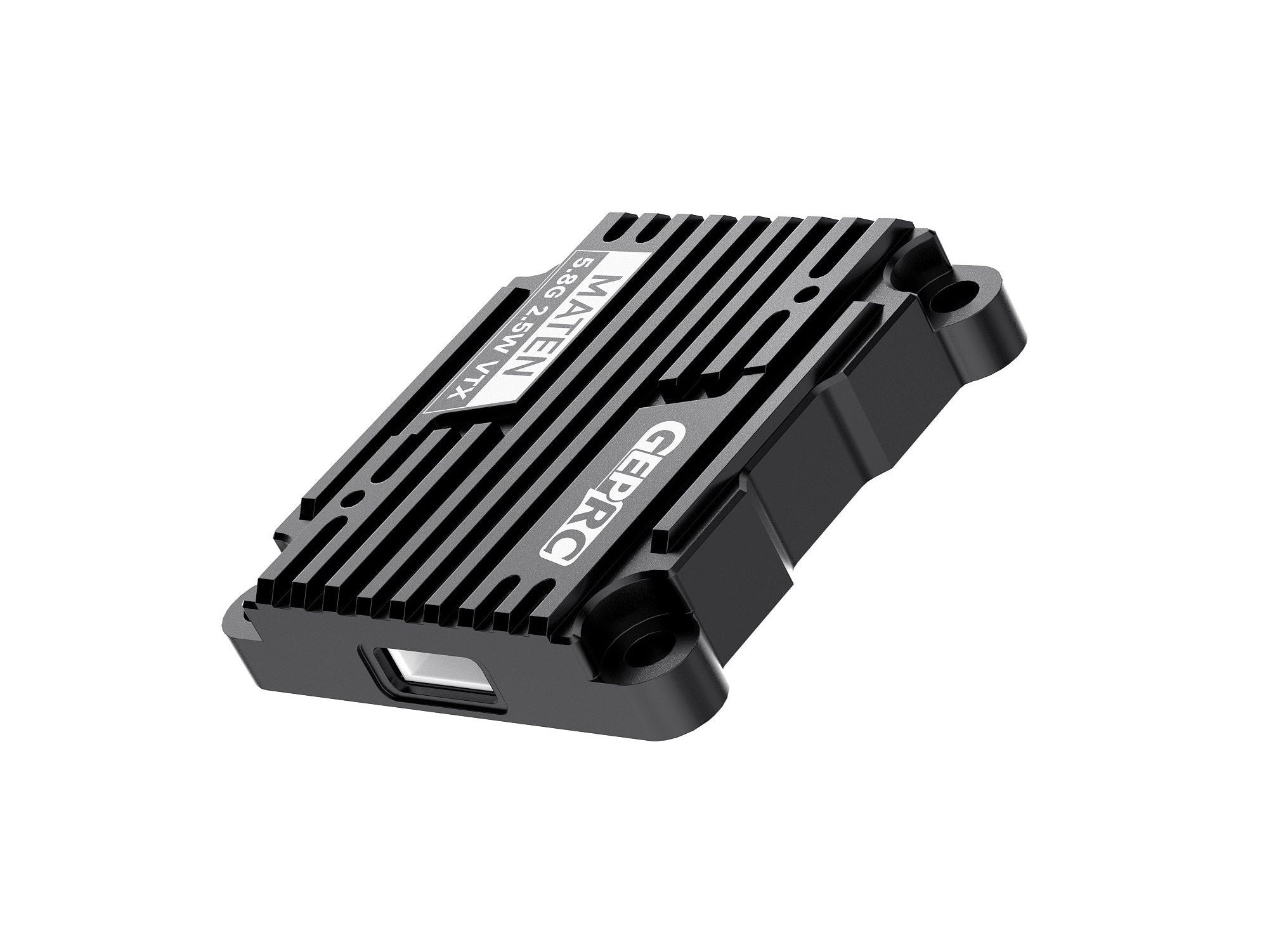

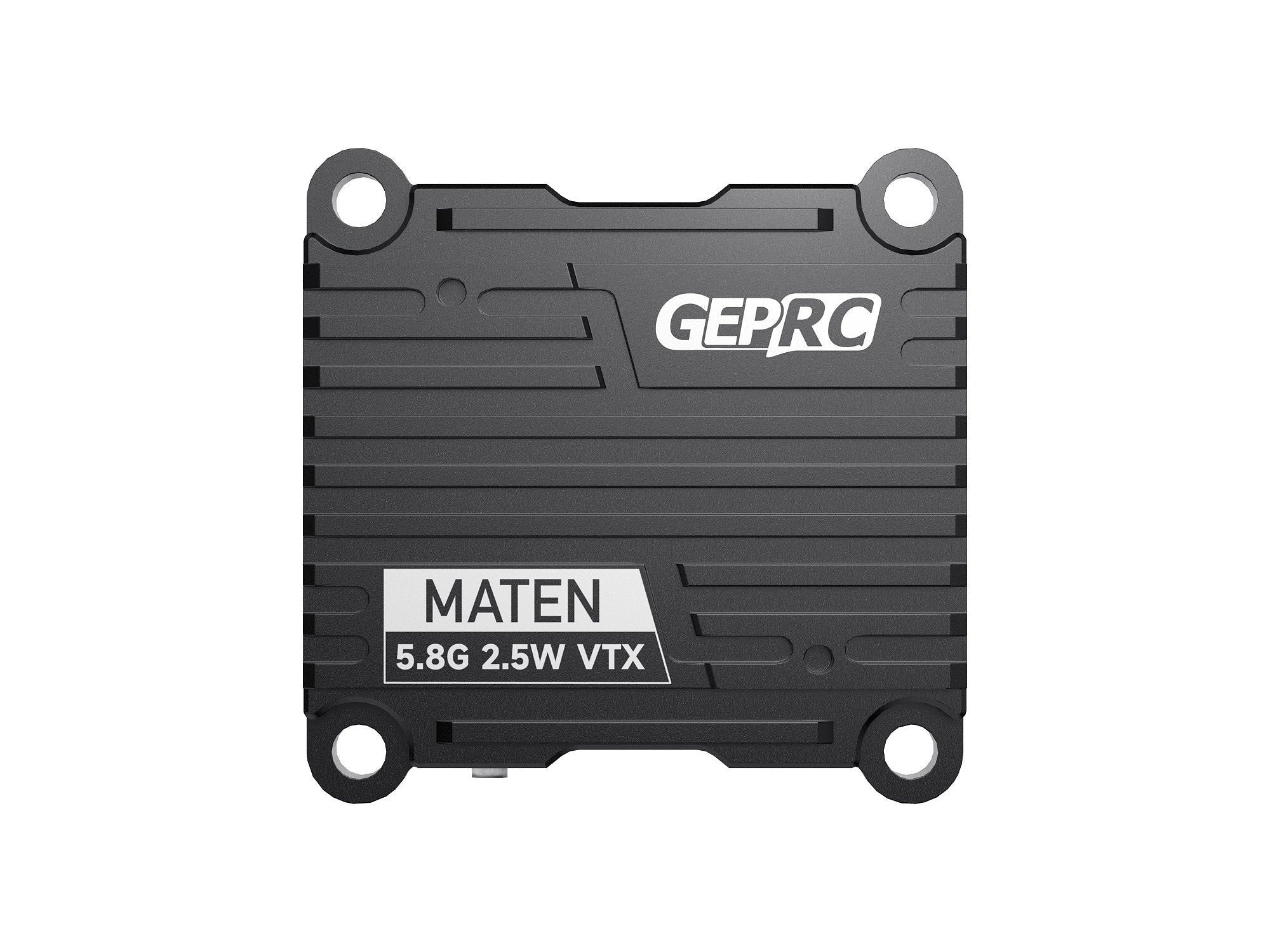

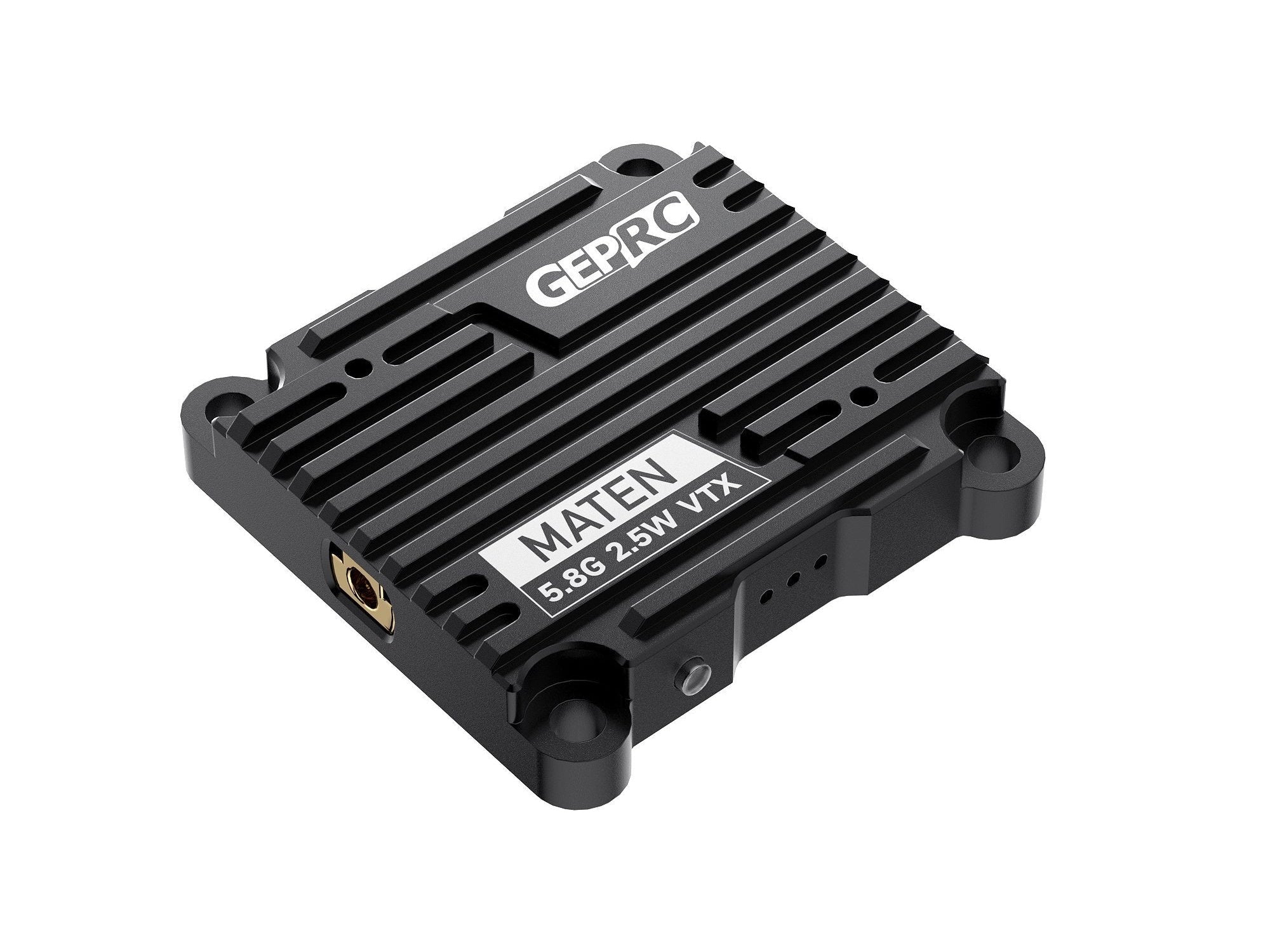

Maten 5.8GHz 2.5W VTX uses a high-strength aluminum alloy CNC shell to assist heat dissipation. The unique appearance design has stronger impact resistance and better heat dissipation performance.

It supports the IRC Tramp protocol and can use the OSD to quickly adjust parameters.
It has a wide voltage input of 7-36V and a temperature control protection function to prevent overheating and burning. Support 30.5×30.5mm(M3) installation hole position.

Features:

  • Five levels of adjustable power, up to 2500mW, suitable for long-distance flight.
  • Selected high-strength aluminum alloy CNC shell, auxiliary heat dissipation.
  • Wide voltage input, supports 7V-36V voltage input.
  • One function button, three indicator lights, easy to control.
  • VTX control protocol is IRC Tramp, which supports OSD parameter adjustment.
  • Temperature control protection function that can prevent high-temperature burning.
  • VTX built-in microphone, real-time transmission of Drone’s sounds.
  • Supports 72 transmission channels.
  • Support 30.5×30.5mm(M3) installation hole position.

Specifications:

  • Model: MATEN 5.8G 2.5W VTX
  • Dimension: 36.4×36.4×7.9mm
  • Mounting hole: 30.5×30.5mm(M3)
  • Output power: 25mW/200mW/600mW/1600mW/2500mW/Pit mode
  • Frequency: 5.8G
  • Channel: 72CH
  • Input voltage: DC7-36V(2-8S Battery)
  • Output voltage: 5V@600mA
  • Protocol: IRC Tramp
  • Antenna interface: MMCX
  • Cable interface: SH1.0 6pin
  • Video format: PAL/NTSC
  • Microphone: Built-in microphone
  • Weight: 18g

Notes:

  • Install Antenna before use.
  • To prevent overheating,provide constant airflow and a well-ventilated environment. Install a cooling fan if operating in confined conditions.
  • The 5V Output is for a Camera/Cooling Fan use only!Do not connect the Power Input/Battery to 5V Out. Serious damage will occur to VTX.
GEPRC Maten 5.8GHz 2.5W Video Transmitter
GEPRC Maten 5.8GHz 2.5W Video Transmitter
GEPRC Maten 5.8GHz 2.5W Video Transmitter

Includes:
1x GEPRC Maten 5.8GHz 2.5W Video Transmitter
1x MMCX Copper Tube Antenna
1x MMCX to SMA Connector
1x sh1.0 6P Connecting Cable
5x M3*7 Screws
5x M3*8 Screws
5x M3*10 Hexagon
5x M3*5 Isolation Column
5x M3 Nylon Nut
1x Product Description





REGULATORY NOTICE

The use and operation of this type of product in the USA and many other countries may require a license and some countries may forbid its use entirely. In the USA, you will need a "HAM" amateur radio license. Find a HAM license exam session in your area. It is your responsibility to ensure that the use of this product meets the requirements imposed by your government's rules and regulations for RF devices. Do not purchase this product if you are unsure of the government requirements or are not able to comply with them. Defiance RC, Inc cannot be held responsible for your actions if you purchase and/or use this product in violation of your government's regulations. By agreeing to our terms and conditions during the check-out process, you also agree to have read and to understand this notice.
