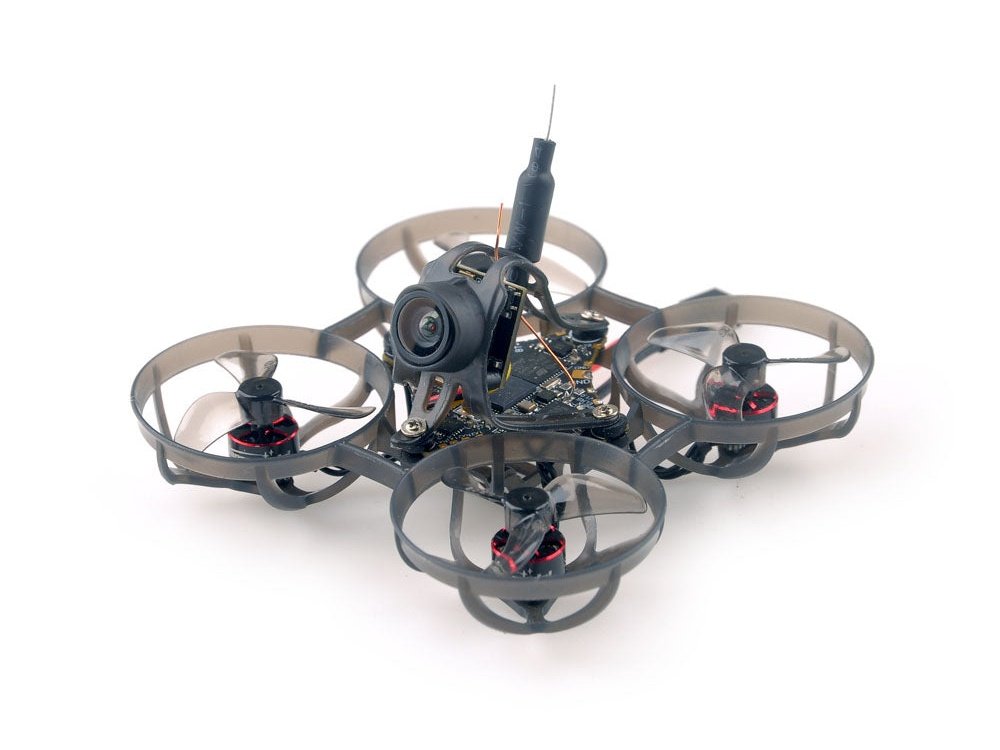

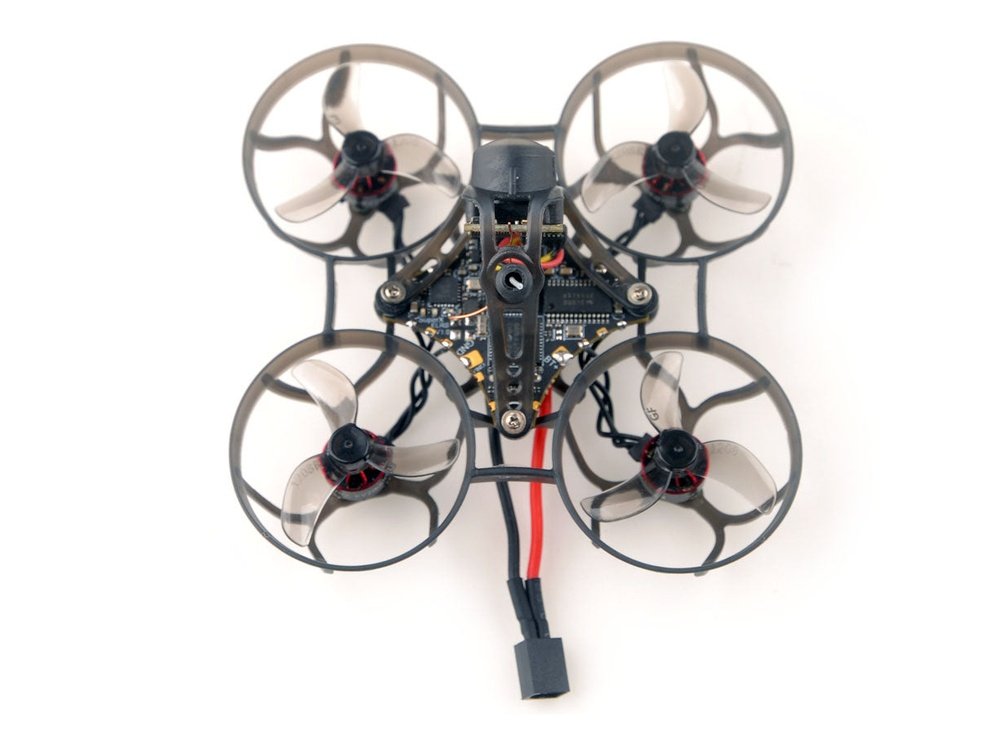

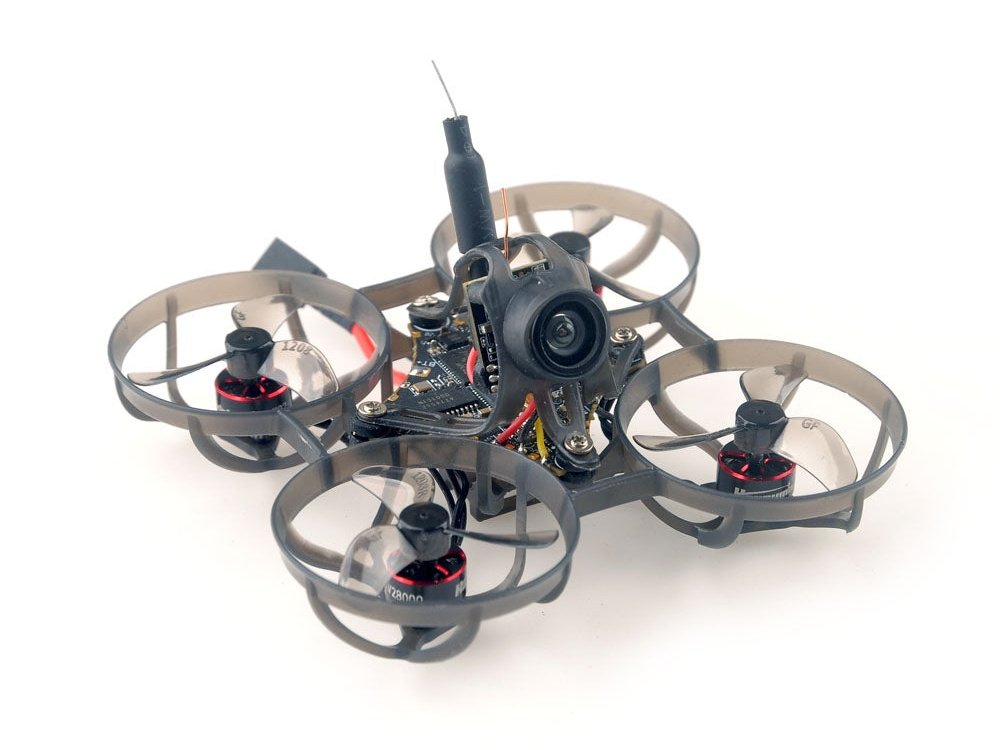

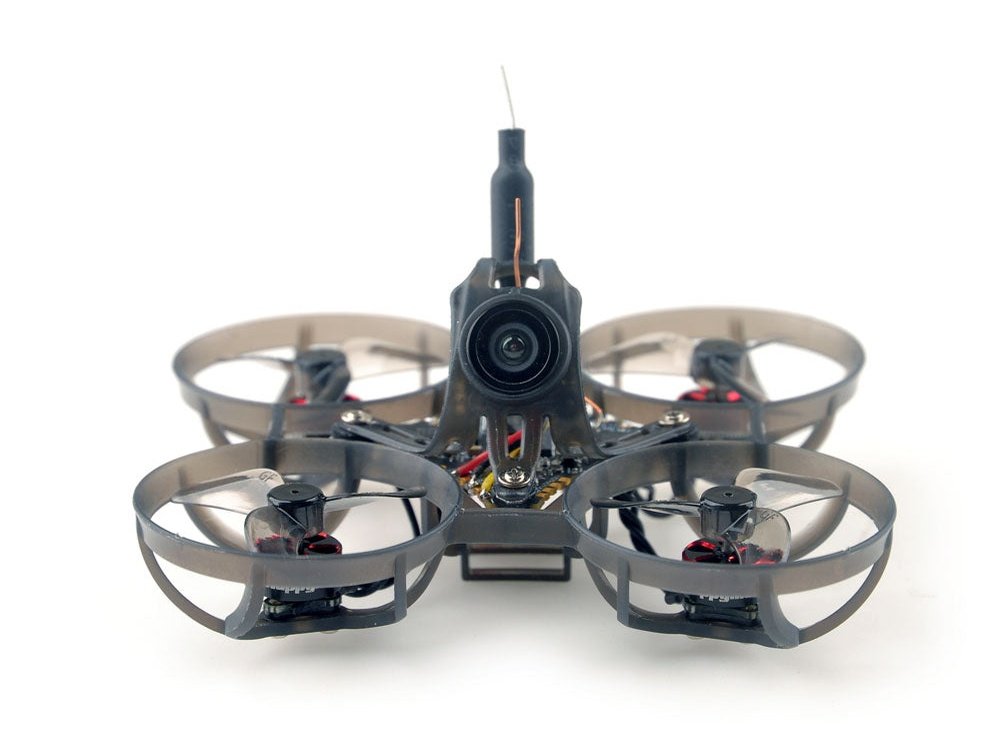

Happymodel Mobula 6 2024 V2 1S 65mm Ultra-Light Micro Whoop

The Happymodel Mobula 6 2024 V2 1S 65mm Ultra-Light Micro Whoop boasts fast acceleration and intense power, weighing in at only 17.7g. Its compact size and lightweight design make it perfect for quick, agile flights. Experience the ultimate in micro drone technology with this high-quality, powerful and strong model.

Features:

• AIO Flight controller with Serial ELRS Receiver and 5.8G Openvtx
• Super light 1S 65mm Brushless whoop only 17.7g
• Equipment with the lightest brushless motors-SE0702 only 1.46gram
• FX17-B 1/3 CMOS 800TVL Camera awesome footage
• Smooth and powerful
• Compatible with 1S Lipo/LIHV

Specifications:

• Brand Name: Happymodel
• Item Name: Mobula6 2024 1S 65mm ultra light micro FPV Whoop
• Wheelbase: 65mm
• Size: 81mm*81mm*37mm

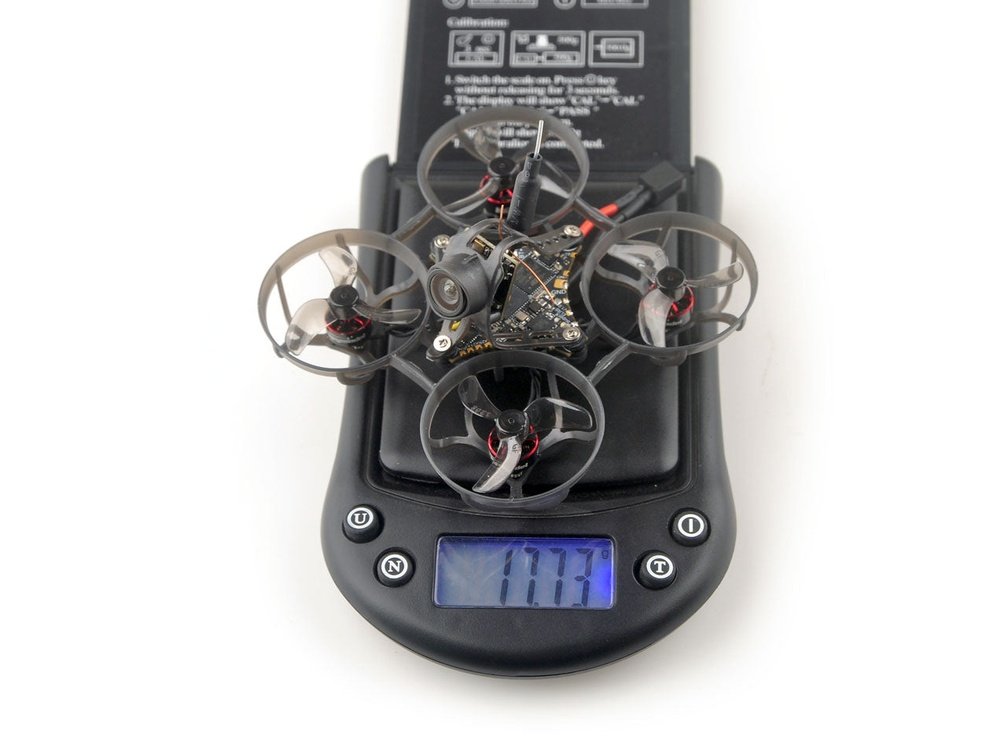

• Weight: 17.7g
• Option:
• V1 version with SuperX ELRS V1.0 AIO
• V2 version with SuperX ELRS V2.0 AIO
• The only difference is v2.0 AIO FC comes with motor plug but V1.0 AIO FC is no motor plug.

Motor:

• Mode:  SE0702 KV28000
• Configuration:  9N12P
• Stator Diameter:  7mm
• Stator Length:  2mm
• Shaft Diameter:  Φ1mm
• Motor Dimension(Dia.*Len):  Φ9.5mm*14mm
• Weight(g):  1.46g
• No.of Cells(Lipo):  1S only

Propeller:

• Material:  PC
• Length:  31mm

• Pitch:  0.8 Inch
• Weight:  0.21g
• Mount Hole Diameter:  1mm

Flight Controller:

• SuperX ELRS AIO 5-IN-1 Flight controller
• MCU:STM32F411CEU6 (100MHZ, 512K FLASH) ,ESP32-PICO-D4
• Sensor:BMI270(SPI connection)
• Mount hole size: 25.5mm*25.5mm
• Power supply: 1S battery input (DC 2.9V-4.35V)
• Built-in 5A(each) Blheli_S 4in1 ESC
• Built-in Betaflight OSD(SPI Control)
• Built-in 5.8G OpenVTX 0mw~400mw (MSP control)
• Built-in UART ExpressLRS v3.0.0
• Built-in voltage meter sensor, voltage meter scale 110
• Built-in current meter sensor, current meter scale 1175

Onboard 4-In-1 ESC:

• Power supply: 1S LiPo/LiPo HV
• Current: 5A continuous peak 6A (3 seconds)
• Support BLHeliSuite programmable
• Factory firmware: Bluejay v0.19.2
• Default protocol: DSHOT300
• Recommend ESC Startup power value to min1100/max1200

Onboard Serial ELRS RX:

• Packet Rate option: 50Hz/150Hz/250Hz/500Hz
• ExpressLRS Firmware version: V3.0
• RF Frequency: 2.4GHz
• Antenna: Enameled copper wire antenna
• Telemetry output Power: <12dBm
• Receiver protocol: Serial_based CRSF
• Compatible with ExpressLRS V3.x.x TX Module
• Could flash single ELRS receiver firmware by Wifi
• ExpressLRS firmware target: ExpressLRS firmware
• Target: HappyModel AIO 2.4GHz RX+VTX (ExpressLRS web flasher)
• Available from Expresslrs version 3.4.0 RC2

Onboard 5.8GHz VTX:

• Firmware version: OPENVTX
• MSP VTX
• PIT Mode support
• Channels: 40ch
• Transmitting Power: 0/RCE/25mw/100mw/400mw
• Power supply: DC 5V
• Current (5v): <650ma (400mw)
• Antenna connector: U.FL

FX17-B Camera:

• Model: FX17-B
• Image Sensor: 1/3″ CMOS
• Horizontal Resolution: 800TVL
• FOV 150°
• Signal System: NTSC
• Net Weight: 1.5g
• Dimensions: L14mm*W14mm*H13mm

Includes:
1x Happymodel Mobula 6 2024 V2 1S 65mm Ultra-Light Micro Whoop
1x SuperX ELRS AIO 5-In-1 Flight Controller V2.0
4x SE0702 KV28000 Brushless Motor
2x GemFan 1208-3 31mm Tri-Blade Propeller Sets
1x FX17-B 1/3 CMOS 800TVL Camera NTSC 4:3
1x Onboard 5.8GHz 25mW~400mW VTX
1x Spare Canopy
1x Propeller Disassembly Tool
1x Screw Driver
