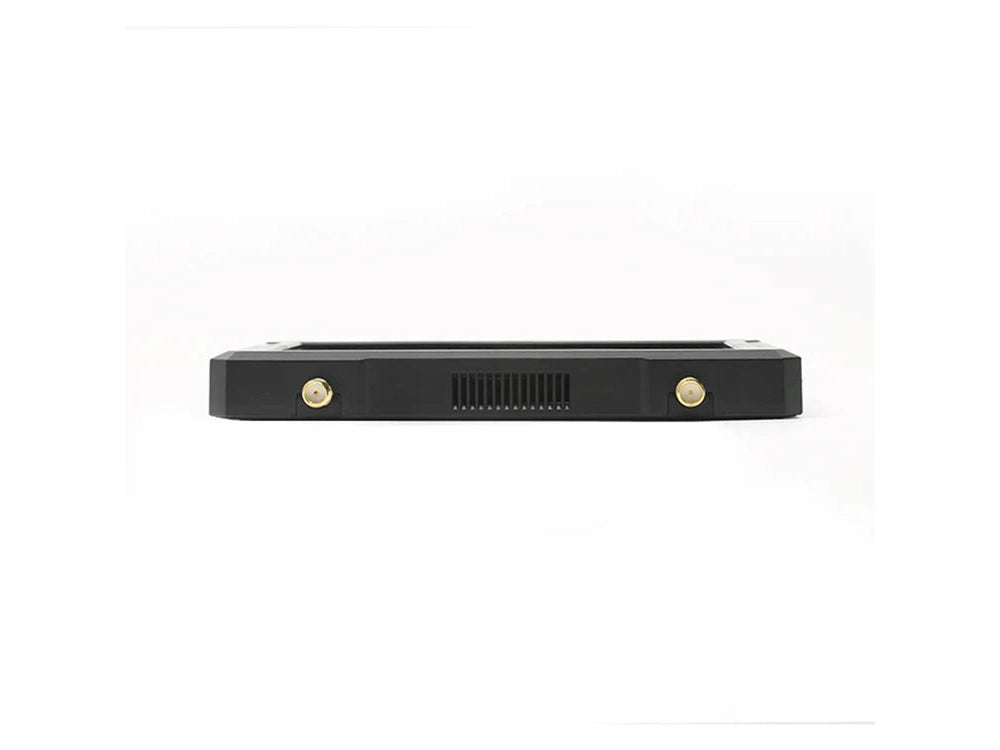

Skyzone M5F 5inch LCD 800x480 5.8GHz FPV Monitor with DVR

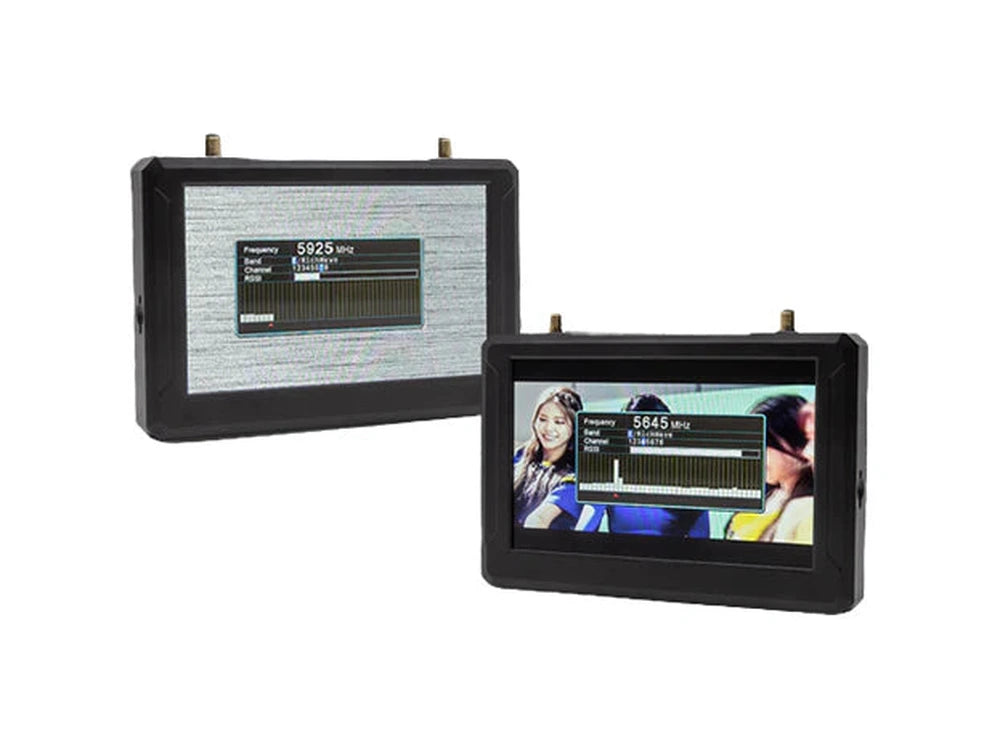

The SKYZONE M5F 5.8GHz FPV monitor with DVR is a high-brightness 5-inch monitor integrated with a 5.8Ghz 48 CH SteadyView receiver, the receiver merges two signals into one, avoids image tearing and rolling, making the image more stable and clear. The wheel with classic skyzone UI made the goggles easy to use, the monitor support 1cell 18650 battery, easy to switch battery, also support 2-6S Lipo, easy to power on the field.
Built-in Steadyview Receiver:
Diversity mode: The receiver will compare with 2 rssi, selects the strongest signal output Ifthe signal changes rapidly, the image will be tearingand rolling.
MIX mode: Two signals are processed through complex circuits and algorithms, fuse the two signal into one, caused the more stable and clear image.

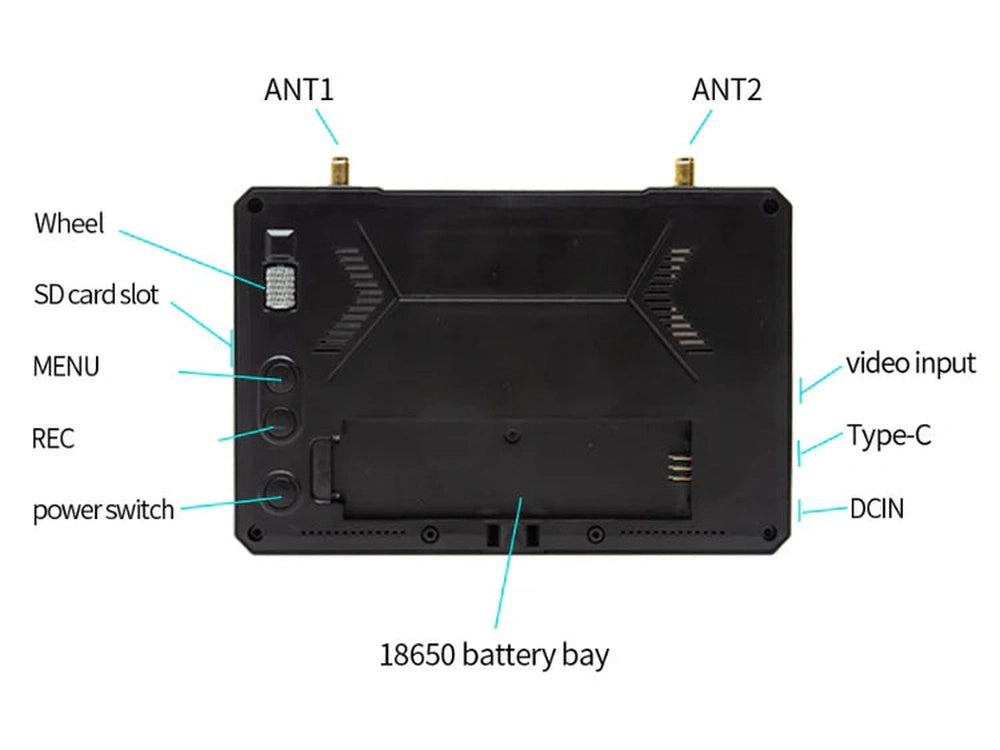

Multiple power supply:

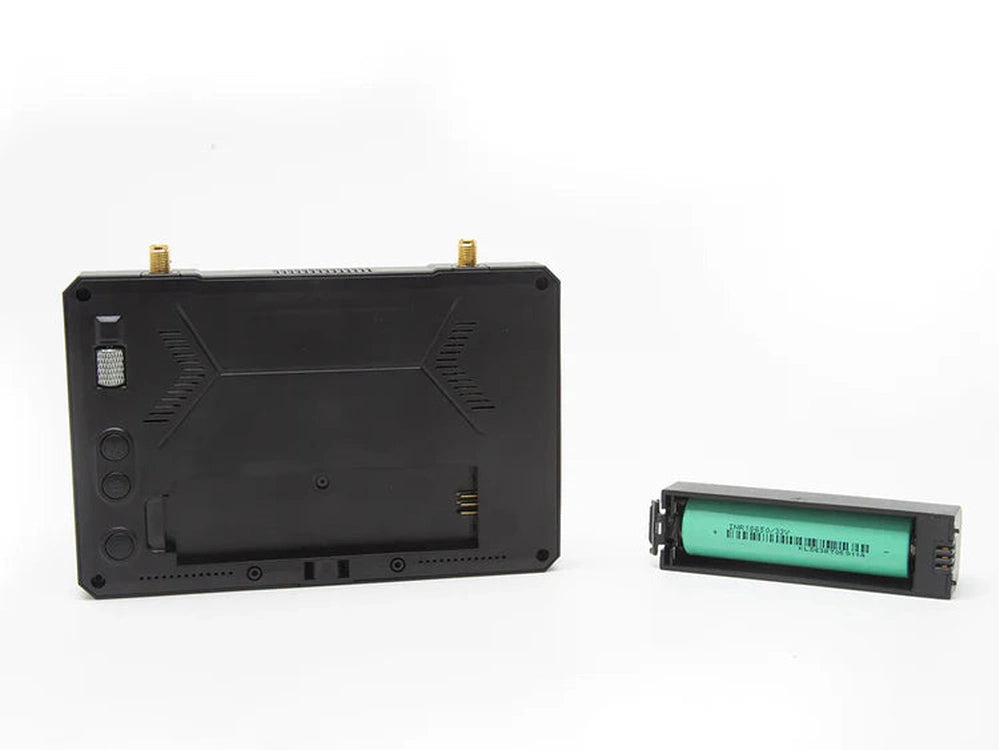

Support 18650 Lion battery replacement, Support 2-6S Lion input, SupportsType-C USB power supply.
Features:
- Display Size: 5"
- Definition: 800x480px
- Power: 2-6S DC, 18650 Liion, USB-C
- DVR: 60fps MJPEG
- Size: 135x88x16mm
- Weight: 165g
- Receiver: Steadyview

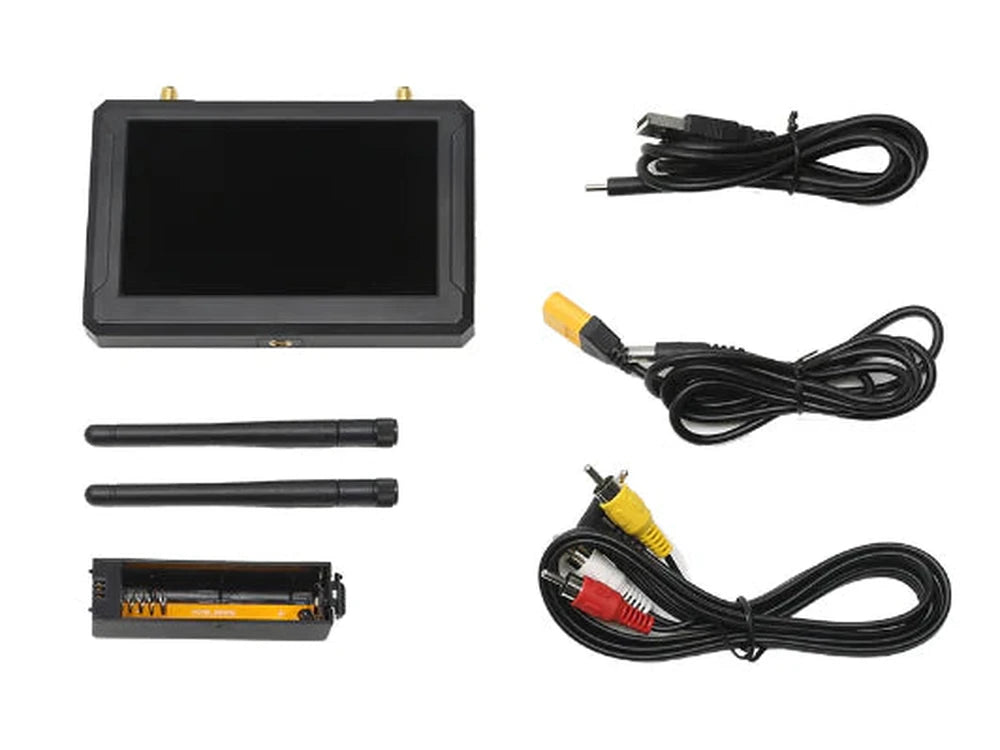

Includes:
1x M5F Monitor
1x Power cable
1x USB cable
1x Video cable
2x Linear antenna
