ToolkitRC M8AC Smart AC Charger

Introducing the ToolkitRC M8AC Smart AC Charger. With highly integrated technology, a robust 1000ma balance current, and high balance accuracy <0.005V, experience a charger made for today's high battery charging demands. It has a 65W super flash charger and a 2.4" IPS LCD display with high accuracy. Perfect for anyone looking for a charger for their hobby.

Specifications:

• Dimensions:  108x113x62mm
• Weight:  500g
• LCD:  IPS 2.4" LCD 320x240px
• Input Voltage:
  • AC 100-240V@MAX 2.5A
  • DC 7-35V@MAX 25A
• Battery Type:
  • LiPo, LiHV, LiFe, LiIon LTS @1-8S
  • NiMH @1-20S, Pb @1-12S
• Balance Current:  1000mA@4.2V
• Balance Accuracy:  <0.005V
• Charging Power:  0.1-20A@600W
• Discharge Power:
  • 0.1-20A@300W Recycle Mode
  • 0.1-3A@20W Normal Mode
• USBC:  MAX 20.0V@65W Upgrade
• Voltage:  1.0V-5.0V @1-8S
• Internal-Resistance:  0.1mΩ-99mΩ @1-8S


Measurer

• PWM:  880us-2200us@20-400Hz
• PPM:  880us-2200usx8 CH@20-50Hz
• SBUS:  880us-2200usx16 CH@20-100Hz

Output

• PWM:  500us-2500us@20-1000Hz
• PPM:  880-us-2200usx8 CH@50Hz
• SBUS:  880us-2200usx16 CH@74Hz
• Power:  0.5-15A@1-35V Mode:  CC+CV

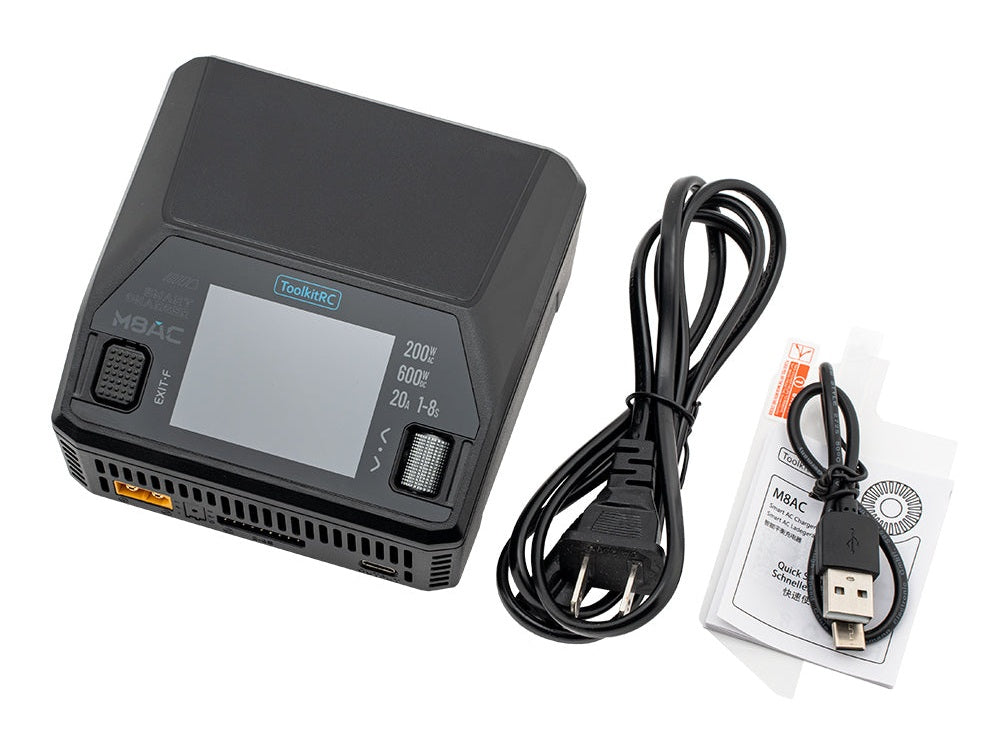

Includes:
1x ToolkitRC M8AC Smart AC Charger
