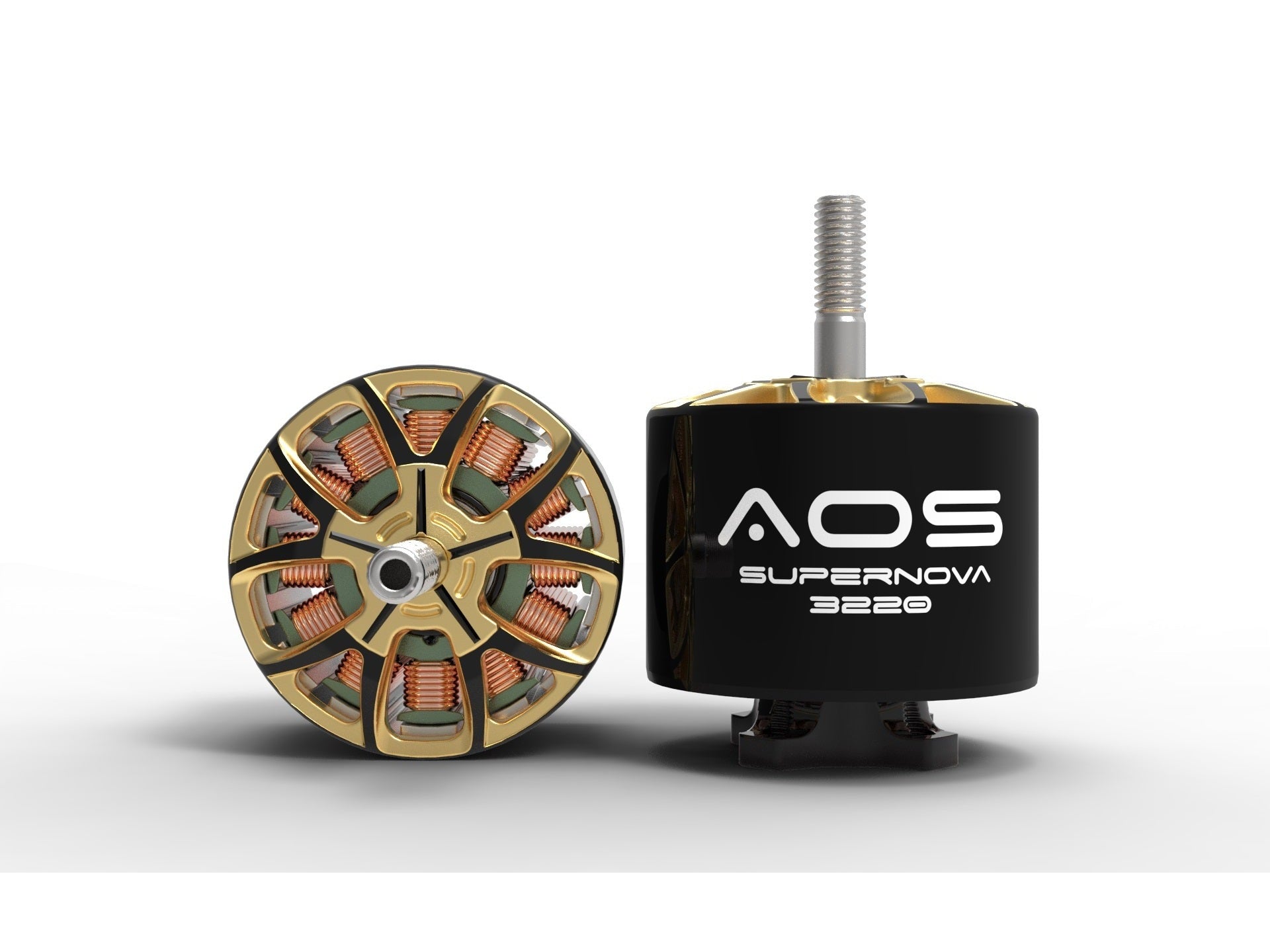

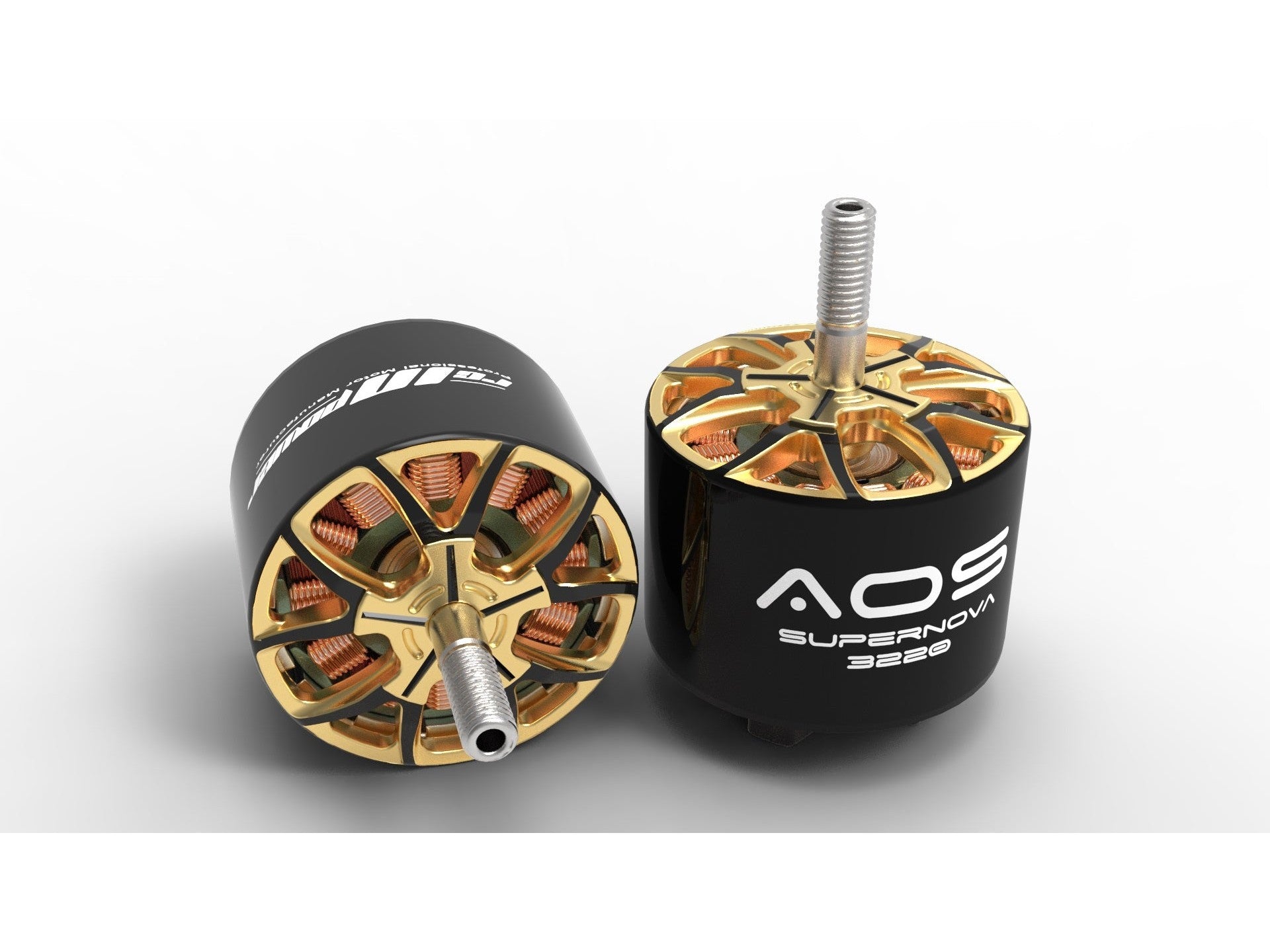

RCInPower AOS RC Supernova 3220 700KV Motor

$65.99
Unit price per

The AOS Supernova 3220 is the ultimate motor for your 10” Lifter. Engineered to deliver unparalleled power and torque, this motor's KV is optimized for driving 10” triblade props with ease on 6S (925KV) or 8S (700KV) battery voltage. On the test stand, Chris Rosser found the Supernova 3220 outperforms every other 3220 motor on the market, producing more thrust, a faster response and higher efficiency than any 3220 tested before. With the Supernova 3220, there’s no need to compromise, whether you’re cruising long range or flying the entire pack at full throttle, it delivers a breathtaking flight experience.

Built on the incredible success of the AOS Supernova 2207 and 2807, the 3220 takes the same revolutionary design philosophy and scales it up for the extreme demands of the most serious FPV wing pilots. Thanks to over 22,000 finite element simulations, the Supernova 3220 delivers an exhilarating combination of control, power, and efficiency, all optimized for the ultimate in-flight performance.

Exceptional designs require exceptional execution. That’s why the AOS Supernova 3220 is manufactured by RCinPower, a name synonymous with high-quality motors flown by top pilots, including the world’s fastest drone racer, Min Chin Kim. This partnership, coupled with AOS’s cutting-edge design approach, ensures that this motor not only meets but exceeds the expectations of the most demanding pilots. With the Supernova 3220, the sky truly is your only limit.

For smooth, precise low-throttle control and breathtaking top-end power, AOS recommends applying throttle expo in Betaflight. Start with Throttle MID = 0 and Throttle EXPO = 0.20, adjusting EXPO to fine-tune your desired throttle response. Increase EXPO for greater precision at low throttle or reduce it for a sharper, more aggressive feel.

Specifications:

Motor: AOS Supernova 3220
Configuration: 12N14P
Stator Diameter: 32 mm
Stator Height: 20 mm
Shaft diameter: 5 mm (Hollow)
External Dimensions: ⌀39.4 x 36.25 mm
Motor Weight: 165g (200mm wires)
Max Efficiency (5 - 12A): >86%
Motor KV: 700 KV
Battery Voltage: 8S
Max Continuous Power: 2214 W
Internal resistance: 35 mOhm
Max Current (for ESC rating): 69.2 A
Idle Current (10V): 1.8 A

Includes:
1x RCInPower AOS RC Supernova 3220 700KV Motor
