With the growing popularity of digital transmission, FLYWOO introduces an innovative solution for 1-2S HD Micro Drones.
This full-featured HD AIO solution integrates a Type-C interface, equipped with a high-performance F405 BGA MCU, and offers enough UARTs to meet your needs. The GOKU F405 HD V2 AIO features a built-in 9V 2A BEC module, effectively preventing power cuts in the O3 Air unit due to insufficient voltage.
Additionally, it comes with a serial ELRS 2.4G receiver, an 8MB black box, a barometer, and a current sensor, specifically designed for HD VTX. Its socket-style motor connections and plug-and-play O3 design significantly simplify the installation and debugging process, achieving a perfect blend of efficiency and convenience.
Features:
- Type-C Design: Utilizes Type-C, more convenient and reliable connections.
- New Power Supply: Features 9V 2A BEC, effectively preventing power outages in the O3 Air unit due to voltage dropping.
- Plug-and-Play O3 Port: Direct plug design for O3 air unit eliminates complex soldering steps
- Motor Socket Design: Adopts socket connections for motors to facilitate quick replacements and upgrades.
- Multifunctional Design: Integrates a serial ELRS 2.4G receiver, 8MB black box, barometer, and current sensor, reserves 2 full UARTs and 1 standard SBUS port, supporting connections with various devices like GPS, HD VTX, and external receivers.
Specifications:
- Betaflight Firmware: FLYWOOF405S_AIO
- iNav Firmware: FLYWOOF405HD
- MCU: STM32F405BGA
- BEC: 5V 2A/9V 2A
- Flash: 8M
- LED: 2*WS2812
- Barometer: DPS310/SPL06
- Gyro: MPU6000
- Motor: M1-M4 Output
- I2C: SCL/SDA
- UARTs: 6
- Connector: Type-C
- OSD: NO
- Mounting: 25.5*25.5-3mm
- Dimensions: 30*30mm

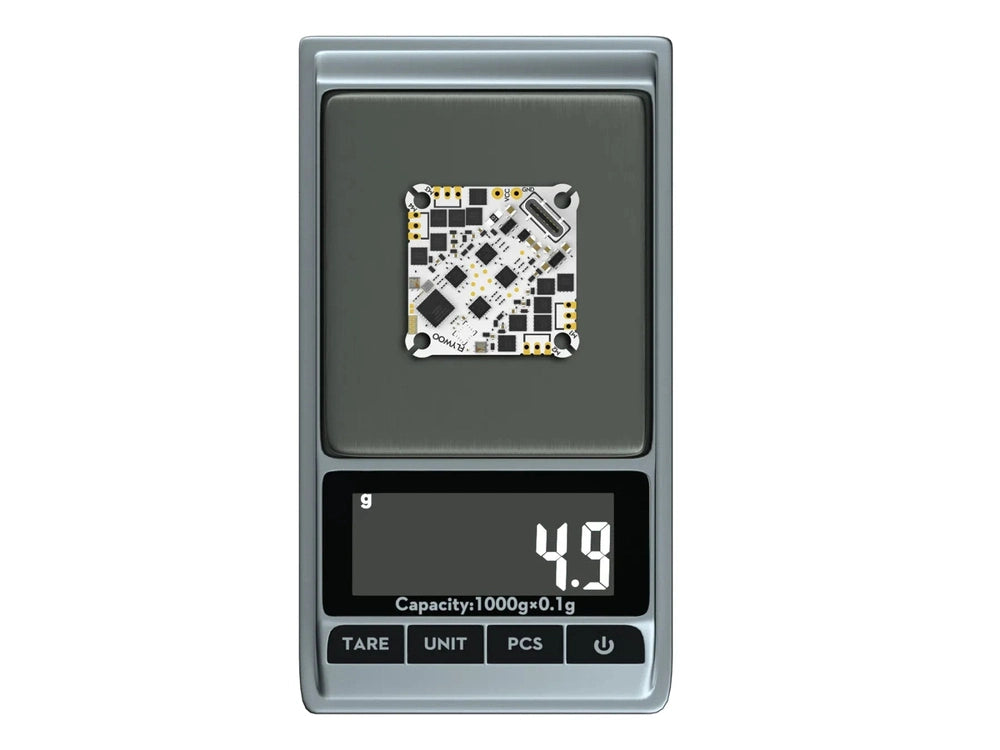

- Weight: 4.9g
Onboard 4-In-1 ESC
- Built-in 1S/2S 12A BL_S 4in1 ESC
- Support Oneshot125, Oneshot42, Multishot,
- Dshot150, Dshot300, Dshot600
- Input Voltage: 1-2S Lipo
- Firmware: BLHELI_S
- Firmware: Z_H_30_REV16.7
ELRS 2.4GHz Receiver:
- ESP8285 MCU
- SX1280IMLTRT RF Module
- Frequency Range: 2400 MHz to 2500 MHz
- Maximum receive refresh rate: 500Hz
- Minimum receiver refresh rate: 25Hz Seiral:
- UART 1
- Firmware: Flywoo EL24P 2400 RX
- Version: 3.X.X
![Flywoo Goku F405 HD 1-2S 12A ELRS AIO V2](https://cdn.shopify.com/s/files/1/1349/4827/files/20240317-105851.webp?v=1721844496)
![Flywoo Goku F405 HD 1-2S 12A ELRS AIO V2](https://cdn.shopify.com/s/files/1/1349/4827/files/P2-2.webp?v=1721844521)
![Flywoo Goku F405 HD 1-2S 12A ELRS AIO V2](https://cdn.shopify.com/s/files/1/1349/4827/files/P3-1.webp?v=1721844557)
![Flywoo Goku F405 HD 1-2S 12A ELRS AIO V2](https://cdn.shopify.com/s/files/1/1349/4827/files/20240708-143921.webp?v=1721844588)
![Flywoo Goku F405 HD 1-2S 12A ELRS AIO V2](https://cdn.shopify.com/s/files/1/1349/4827/files/lay-out-en.webp?v=1721844610)
![Flywoo Goku F405 HD 1-2S 12A ELRS AIO V2](https://cdn.shopify.com/s/files/1/1349/4827/files/F405-HD-AIO-7_1800x_a20630c7-fa54-4af7-9cb4-756a34747db3.webp?v=1721844739)
![Flywoo Goku F405 HD 1-2S 12A ELRS AIO V2](https://cdn.shopify.com/s/files/1/1349/4827/files/img-v3-02am-b02e1d21-1235-4b1f-b741-f38c1df432eg.webp?v=1721844636)
![Flywoo Goku F405 HD 1-2S 12A ELRS AIO V2](https://cdn.shopify.com/s/files/1/1349/4827/files/20240329-180429_1800x_86b8fc45-0e5a-48e4-9989-ba576ec4fca2.webp?v=1721844757)
Includes:
1x Flywoo Goku F405 HD 1-2S 12A ELRS AIO V2
1x Flywoo ELRS 2.4GHz Minimortal PCB T Antenna UFL
1x DJI O3 Connection Cable
1x PH 2.0 Battery Lead
1x Capacitor
4x JST Straight Socket
4x M2*10 Screws
4x M2 Nuts
4x M2 Shock-Absorbing Balls
