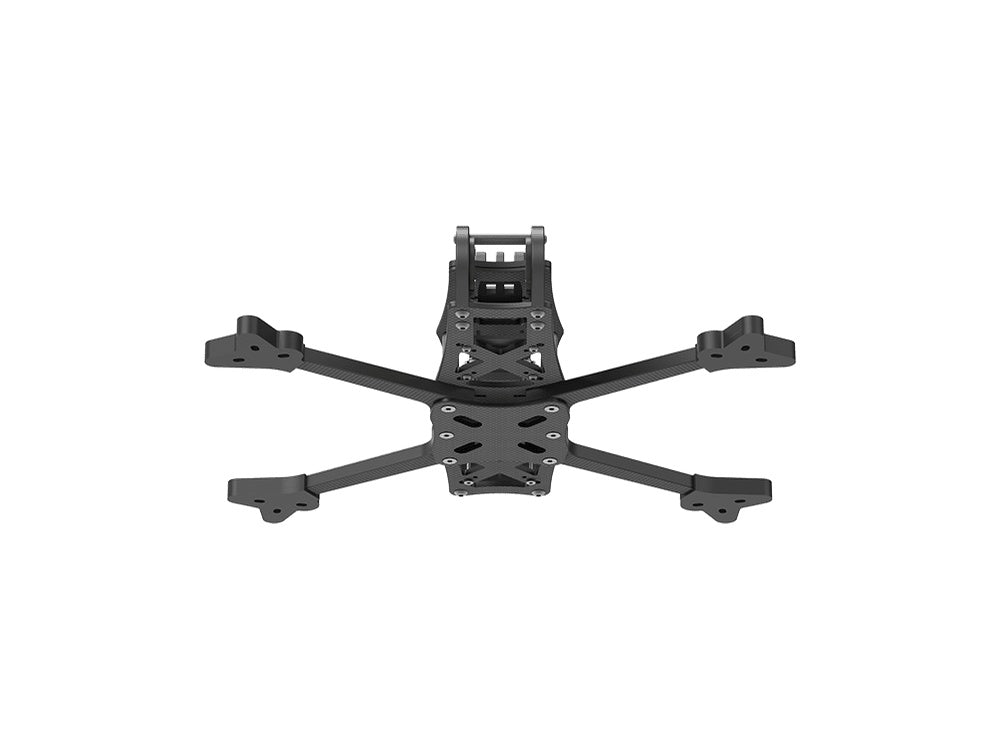

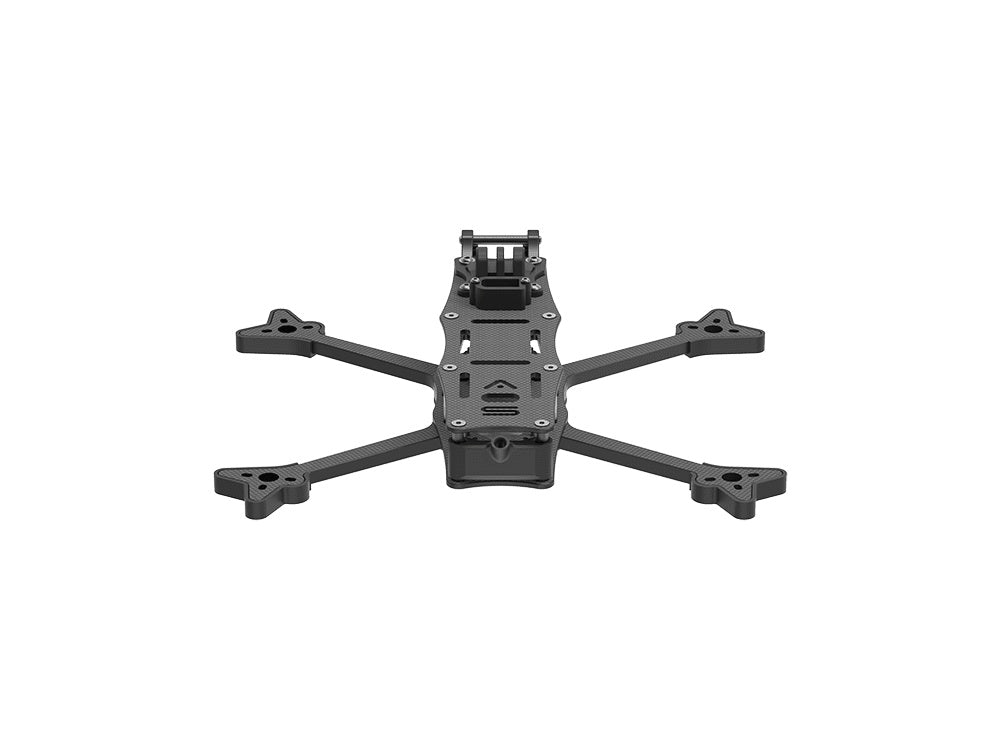

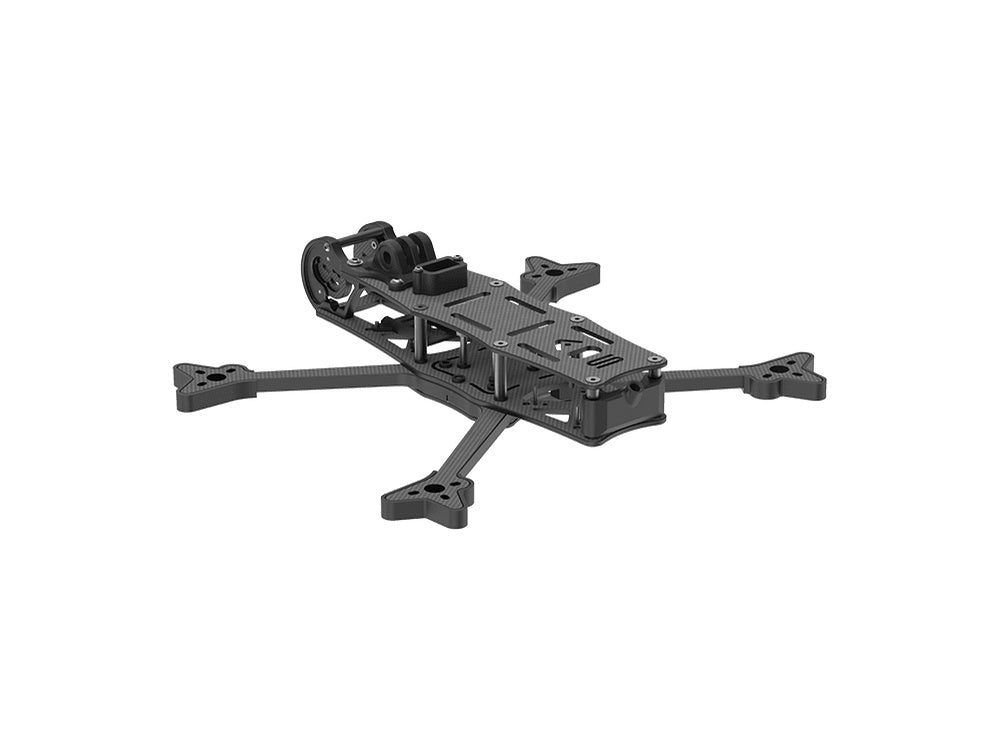

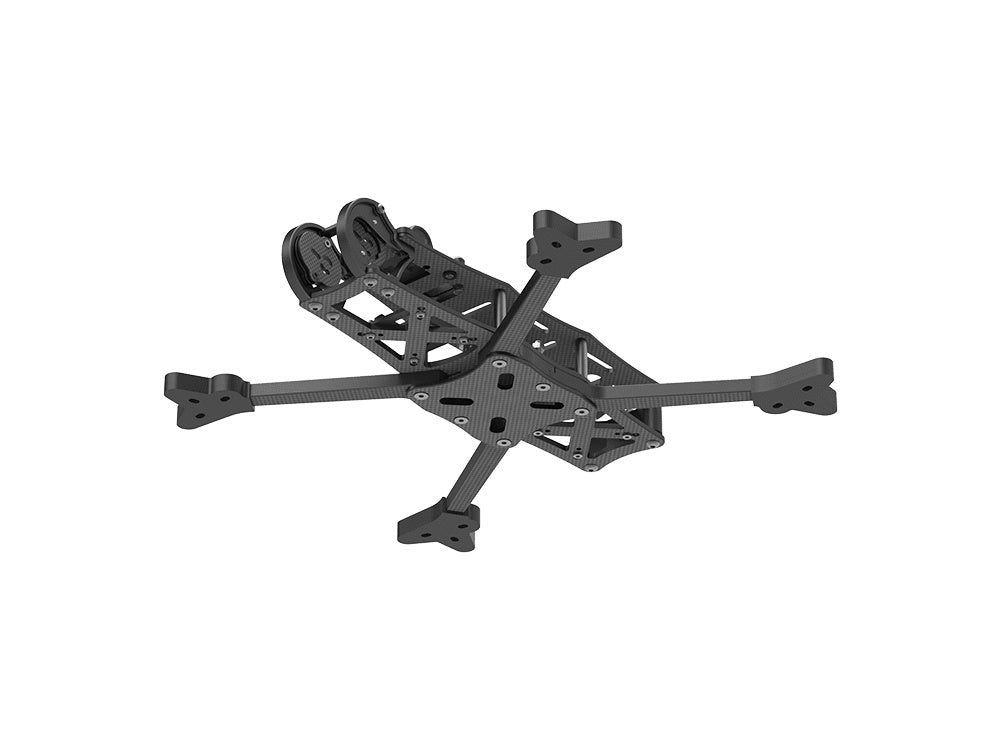

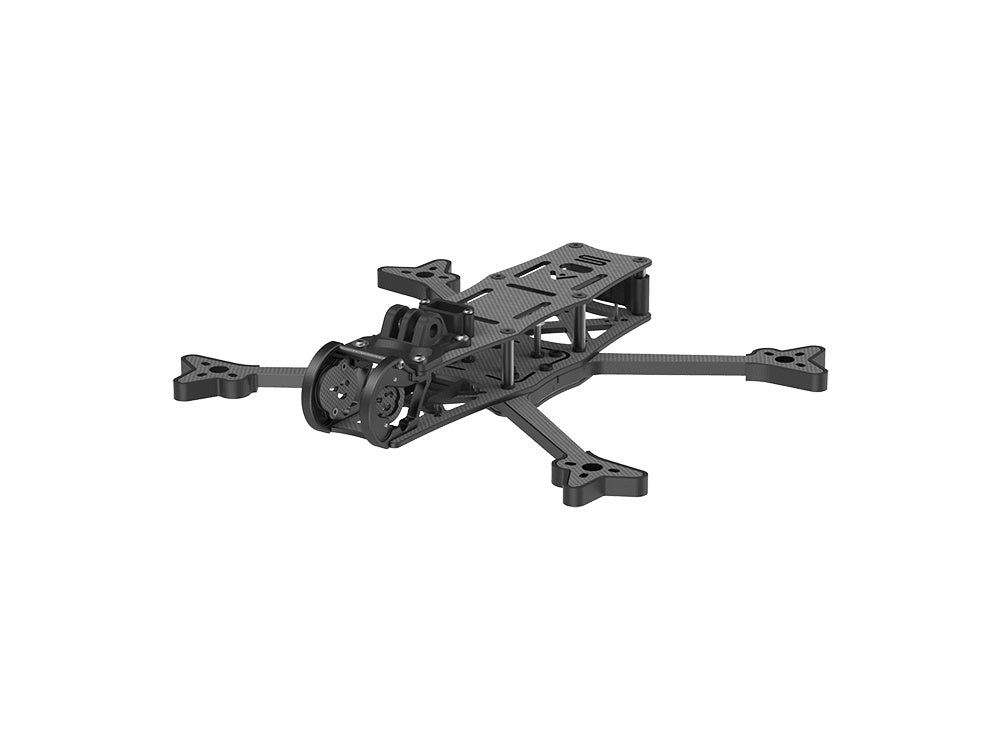

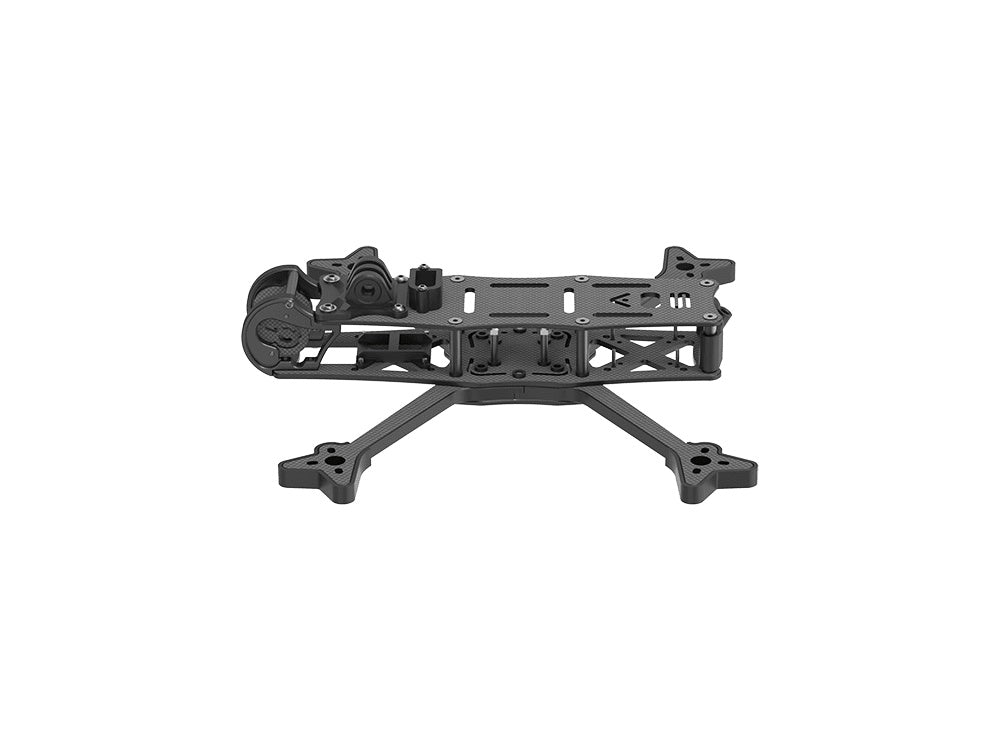

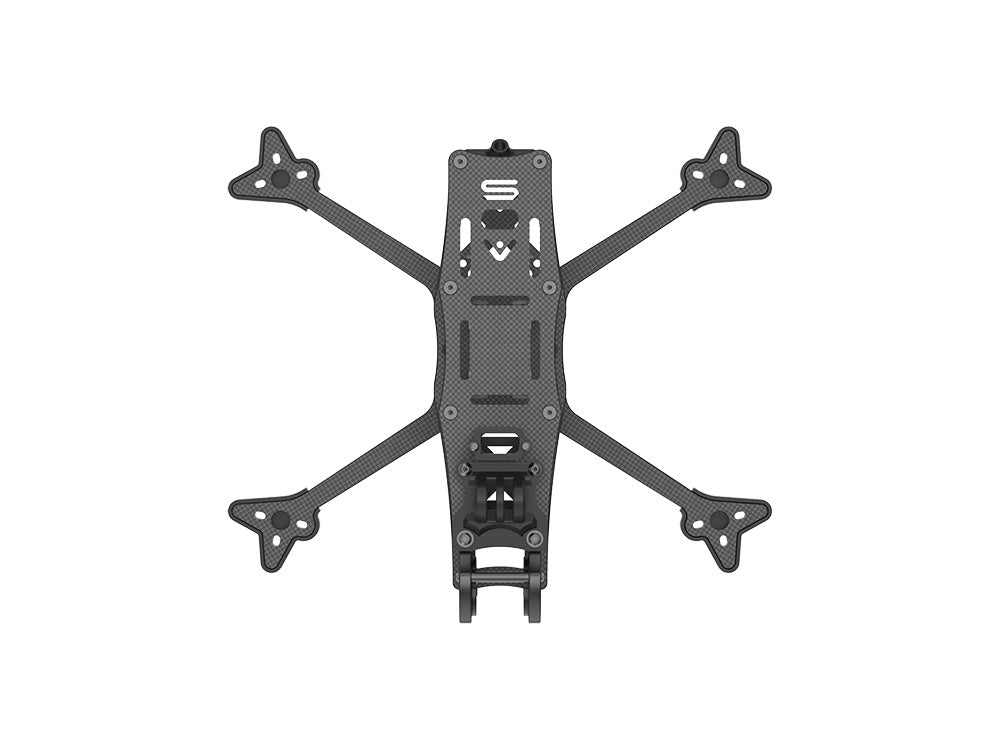

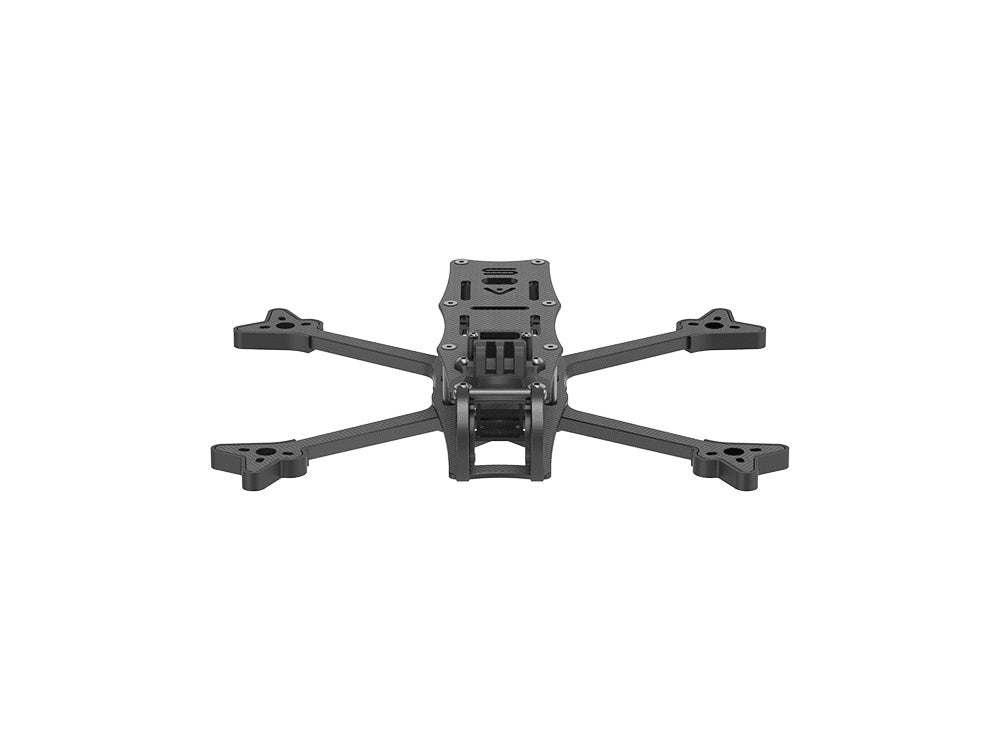

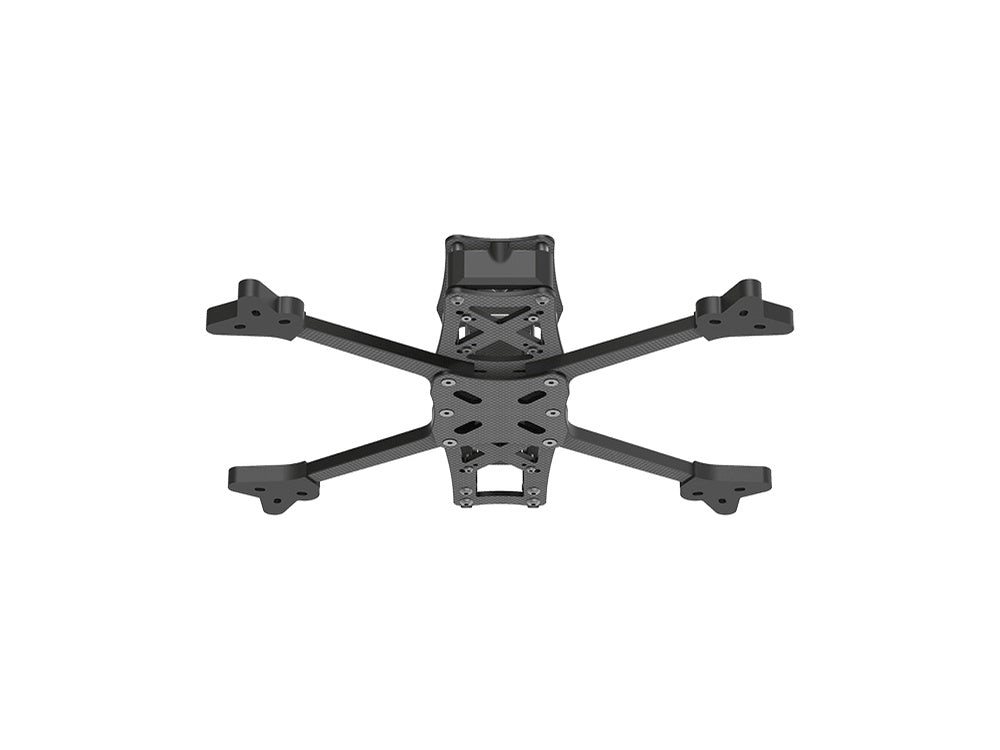

AOS RC AOS 5 V5 Frame Kit
Discover the future of 5" FPV with the AOS 5 V5, engineered to revolutionize your freestyle experience. Designed with cutting-edge patent-pending technology and premium materials, the AOS 5 V5 is the ultimate choice for drone enthusiasts.
Elevate your FPV game with the AOS 5 V5. Designed to deliver the ultimate in 5" performance, durability, and customization, it's the perfect choice for professionals, enthusiasts, and beginners alike. Unleash your creativity and push the boundaries of what's possible in your freestyle flying. Upgrade to the AOS 5 V5 and take your FPV experience to the next level.
NOTE: This frame requires a ~200mm Camera Cable
Easy to build
- The AOS 5 V5 is designed to be the easiest and most user-friendly FPV frame to build. It's perfect for beginners with plenty of space, easy access to every stack screw and even fewer parts than the user-friendly AOS 5 EVO!
Advanced Patent Pending Anti-Vibration Technology
- Say goodbye to unwanted vibrations that can hinder your drone's performance. The AOS 5 V5 boasts the new patent pending AOS X-Cell anti-vibration mount for the flight control stack, reducing vibrations by up to 50% (compared to AOS 5 EVO). This groundbreaking feature enables you to run lower filtering, dial in higher PID gains, and achieve unparalleled flight performance.
Durable and Versatile 7075 Aluminium Camera Cage
- The AOS 5 V5 is equipped with an ultra-durable 7075 Aluminium Camera Cage that accommodates all 19-20mm cameras, ensuring perfect compatibility with a wide range of camera systems. It includes an integrated soft mount specifically designed for the DJI O3 camera, with full support for ND filters. If you use a different FPV system, the frame also allows for hard mounting of all popular camera systems including Analog, WS Avatar, HDZero, and DJI. 14mm cameras are supported using a 3D printed mount (not supplied, STL file on aos-rc.com).
Immersive 155° FPV Experience
- Immerse yourself in the action with a full 155-degree field of view (FOV) for the FPV camera with no props in view. This expansive view is perfect for DJI O3 users and guarantees an immersive flight experience for both professionals and enthusiasts.
Unrivaled Stack and VTX Compatibility
- With three stack positions, each supporting 30.5x30.5mm, 25.5x25.5mm, and 20x20mm mounting the AOS 5 V5 ensures complete compatibility with a huge range of flight controllers, ESCs, and other electronics (including DJI V1 Air Unit and HDZero Freestyle V1 VTX), giving you the freedom to customize your drone to your heart's content.
Reinforced arm and stack mounting
- Say goodbye to stripping threads! The arm and stack mounts on the AOS 5 V5 are reinforced with steel press-nuts for easy assembly, rock-solid mounting, and enhanced durability.
Flexible Battery Mounting
- Experiment with different battery configurations by choosing between lengthwise or toilet tank battery mounting options. This flexibility allows you to optimize your drone's balance and performance based on your flying style and preferences.
Specifications:
- Supports up to 5.2" Props
- AOS X-Cell Anti-Vibration Technology
- Three 30.5x30.5, 25.5x25.5, or 20x20 mm stacks
- 155° FOV no props in view
- Fully DJI O3 compatible (soft mount + ND filters)
- Supports 19-20mm cameras (hard or soft mounted)
- Reinforced 7075 Aluminium Camera Cage
- Supports Lengthwise or Toilet Tank battery mounting
- ⌀16 - ⌀19mm motor mounting (supports all standard 5" motors)
- 127g (6mm arms) 119g (5mm arms)
- 28x28mm M3 GoPro Mounting Pattern
- 32mm Rear Standoff Spacing (compatible with all AOS 5 antenna mounts)
Includes:
1x AOS RC AOS 5 V5 Frame Kit
1x TPU Parts
1x Screw Bag
2x Battery Straps
2x Battery Pads
