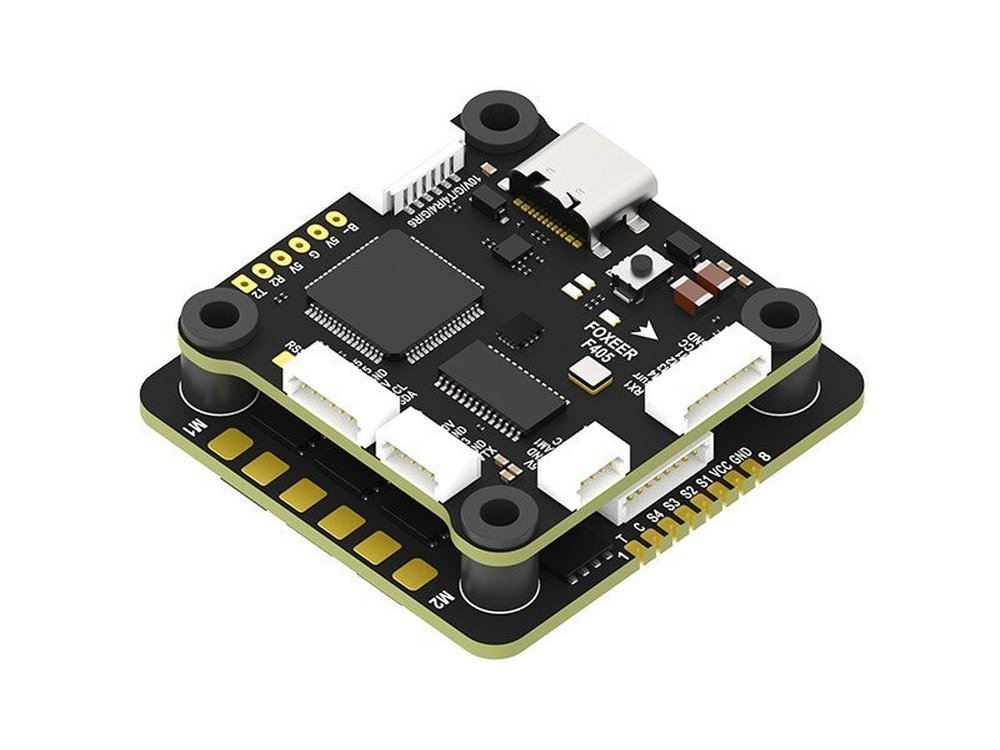

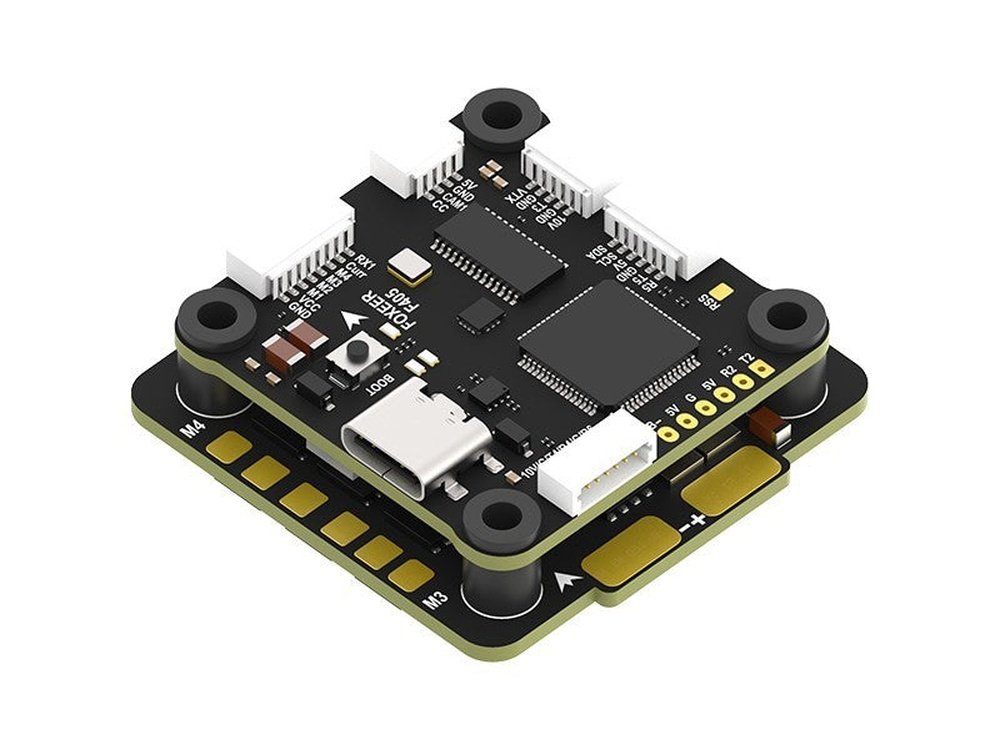

Foxeer F405 V2 Flight Controller Reaper 55A ESC 8S Stack

** Pre-Order - More Arriving Soon **

Introducing the Foxeer F405 V2 Flight Controller Reaper 55A ESC 8S Stack. Get high-performance and feature-rich capabilities at an unbeatable price. With BLHeli_32 firmware, the Reaper 55A 4-in-1 ESC can handle up to 8S voltage input, 8 motors, and 55A continuous and 80A burst. The F405 V2 Flight controller features the powerful STM32F405RGT6 MCU, making it perfect for analog or HD digital setups running Betaflight or Ardupilot. Upgrade your flight experience today.

Specifications:

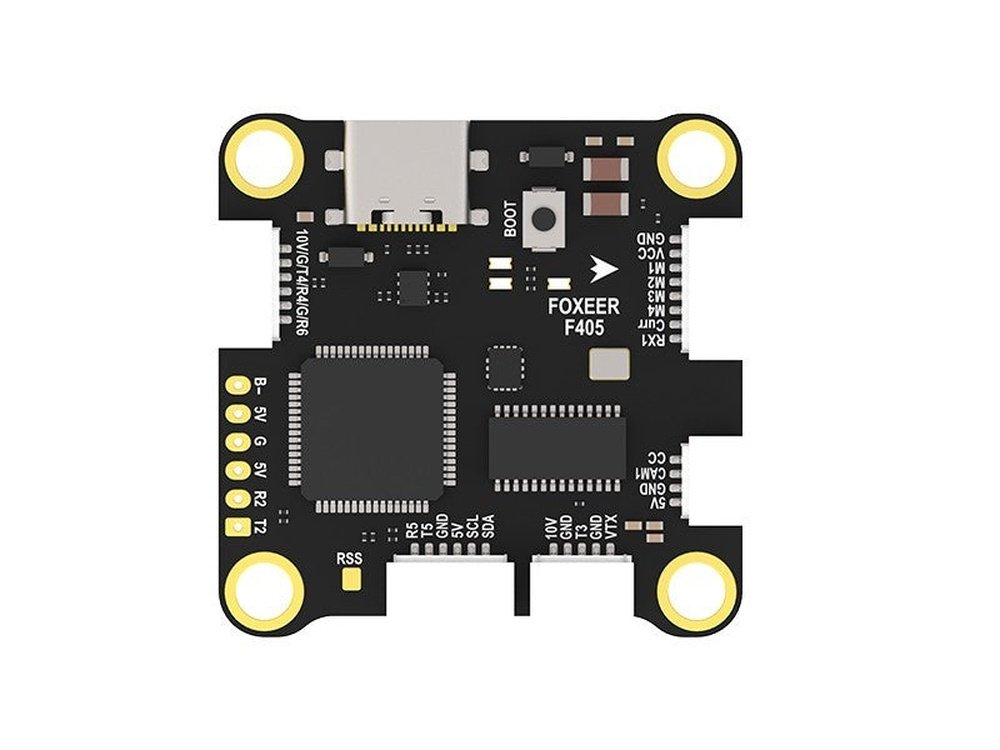

Foxeer F405 V2 Flight Controller

• CPU: STM32F405RGT6
• Gyro: ICM42688-P
• Borameter: DPS310
• Power Supply: 4~8S Lipo
• BEC Output: DC5V/3A; 10V/3A
• OSD: BF OSD
• Black Box: 64M Flash Memory
• UART: 6 Sets
• Connector: DJI; GPS/Compass; 2 Camera Switch; VTX
• ESC Telemetry: RX1
• X8: Supported
• ADC: X3
• PWM: 1CH
• Buzzer: YES
• Smart Audio: YES
• LED: 1 Set 2812 LED
• USB: Type-C
• Firmware: FOXEERF405V2(BetaFlight); F405V2(Ardupilot)
• Dimensions: 37x37mm
• Mounting Hole: 30*30mm,Φ4mm
• Weight: 8.4g
• Working Temperature: -20℃ ~ +55℃
• Working Humidity: 20～95%
• Storage Temperature: -20℃ ~ +70℃

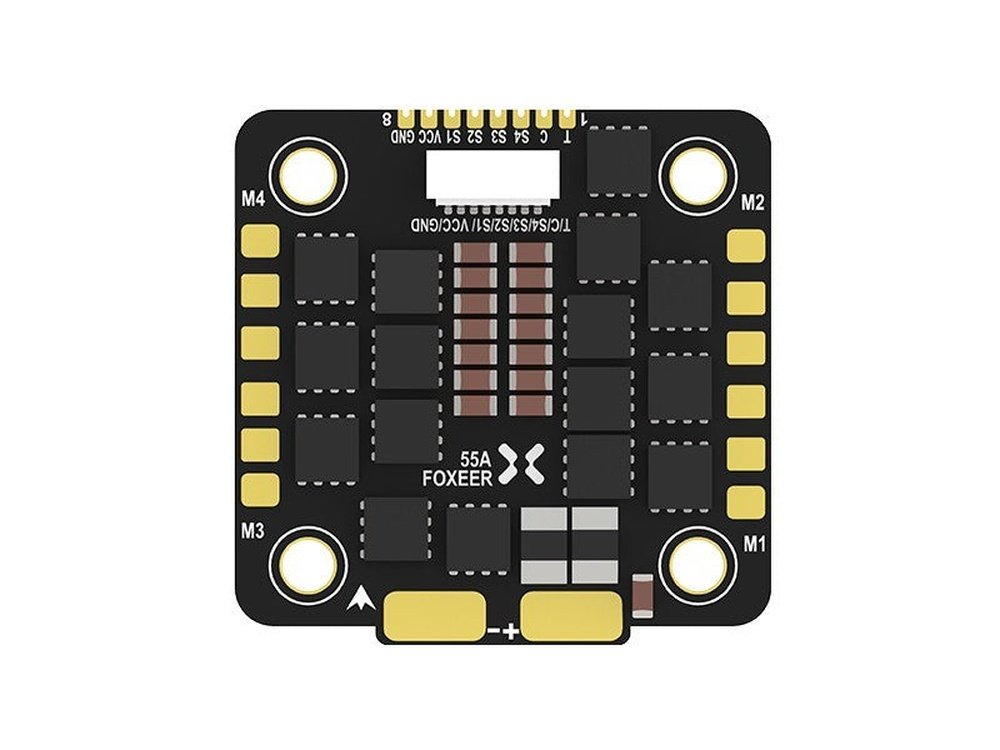

Foxeer Reaper 55A ESC

• Firmware: FOXEER_Reaper4IN1_F4_55A_128_Multi_32_9
• Continuous /Burst Current: 55A*4 / 80A*4
• Input Voltage: DC 9V~36V (3-8S Lipo)
• BEC: No
• Telemetry: Supported
• ESC Programming: BLHeli_32
• Current Scaling: 70
• Input Signal: DShot 150/ 300/ 600/ 1200 /MultiShot/ OneShot etc.
• Working Temperature: -20℃ ~ +55℃
• Working Humidity: 20～95%
• Storage Temperature: -20℃ ~ +70℃
• Mounting Hole: 30.5x30.5mm,Φ4mm/M3
• Dimensions: 42.5x42x5.5mm
• Weight: 14.6g

Includes:
1x Foxeer F405 V2 Flight Controller
1x Foxeere Reaper 55A BLHeli_32 4-In-1 ESC
8x M3x8mm silicone grommets
1x Capacitor
5x M3 nylon nuts
1x 120mm camera cable
1x 90mm DJI cable
1x 120mm GPS/Compass cable
1x FC-ESC cable
1x 90mm VTx cable
1x XT60 cable
