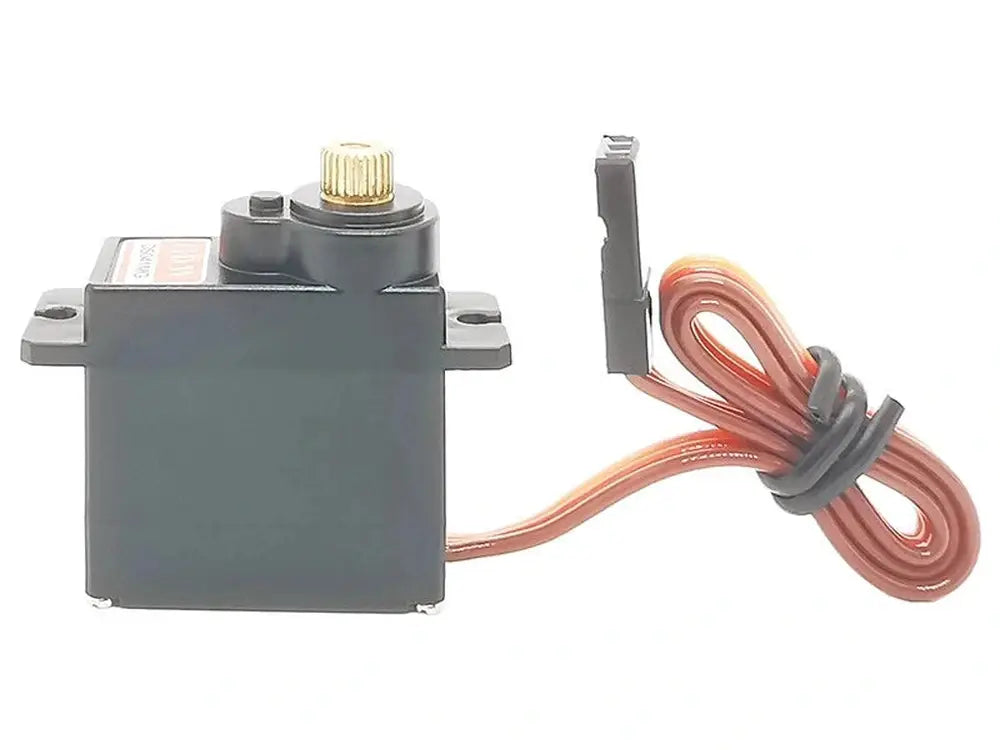

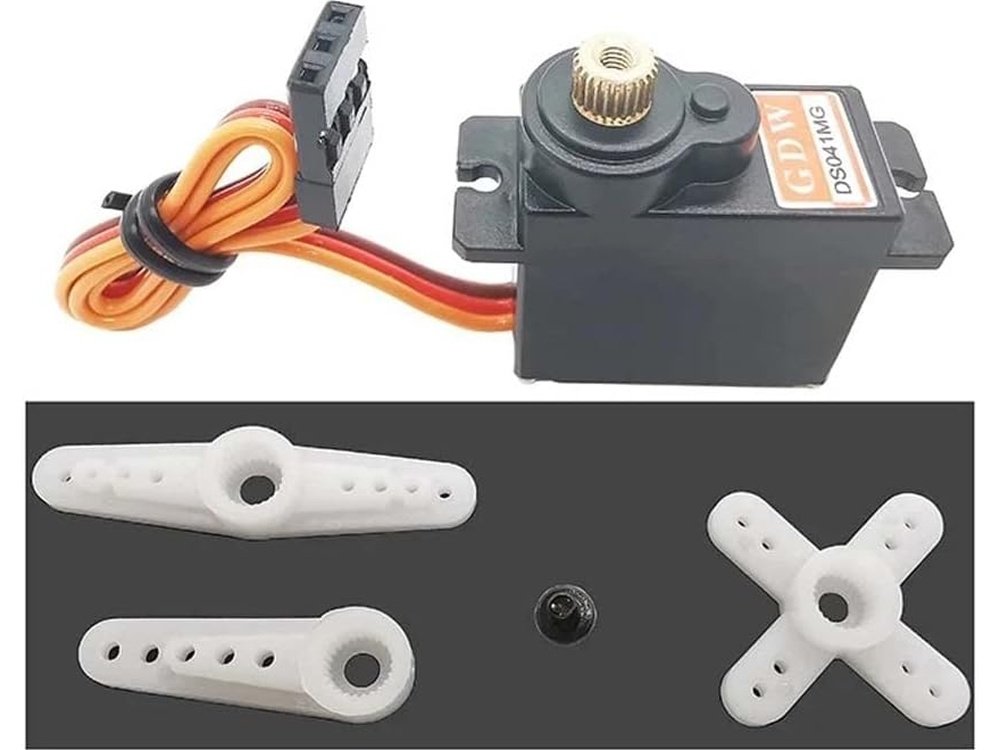

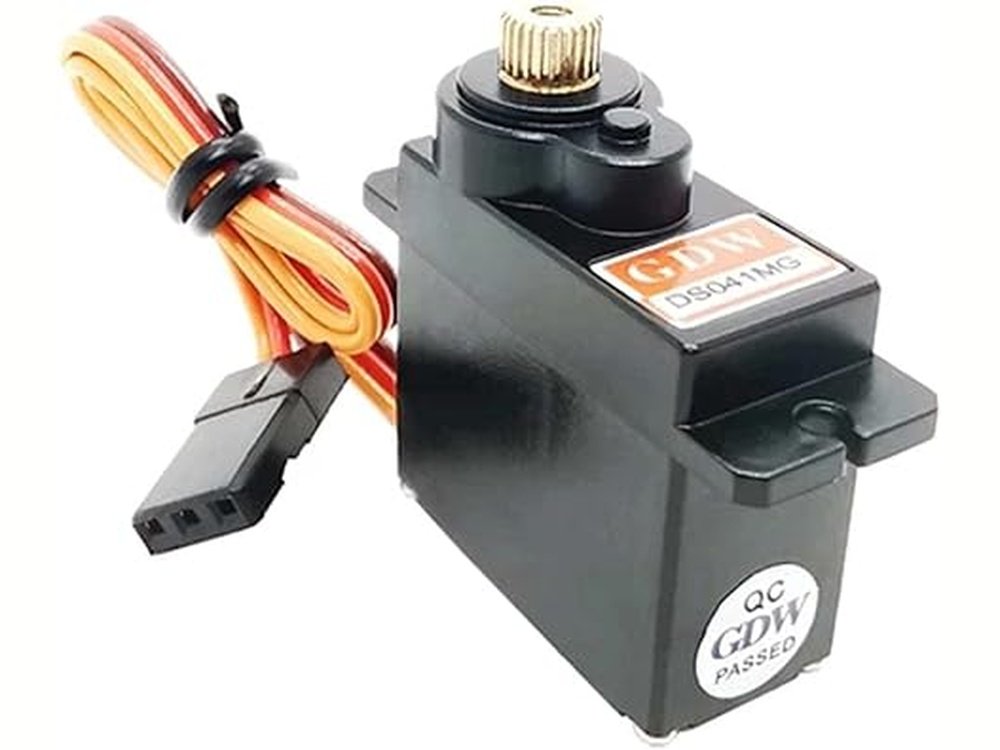

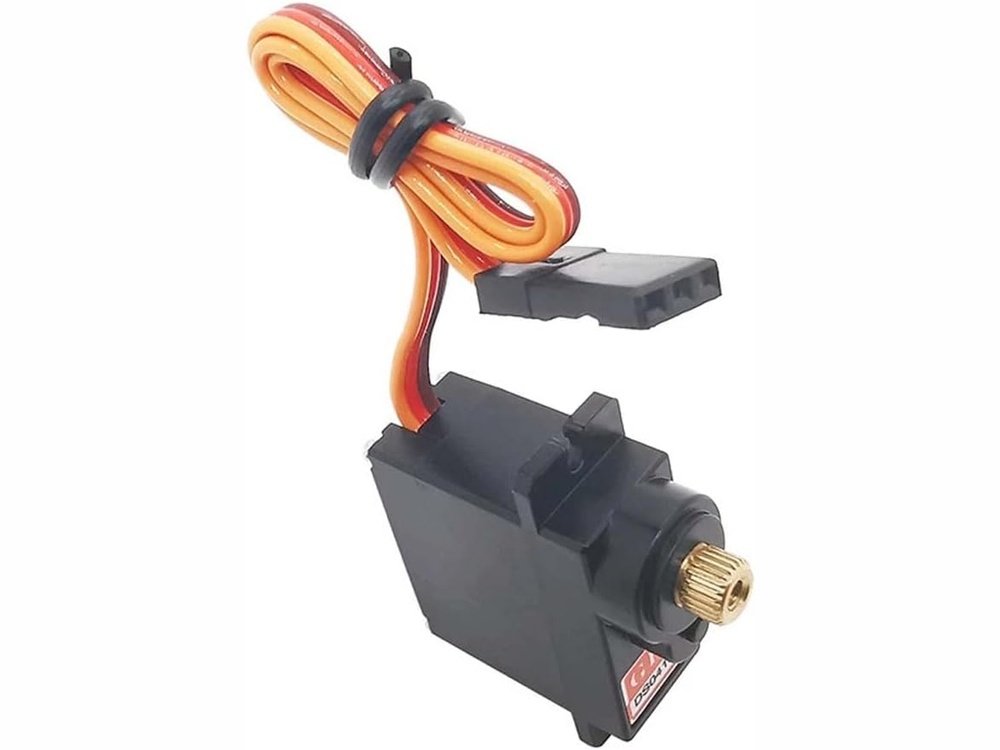

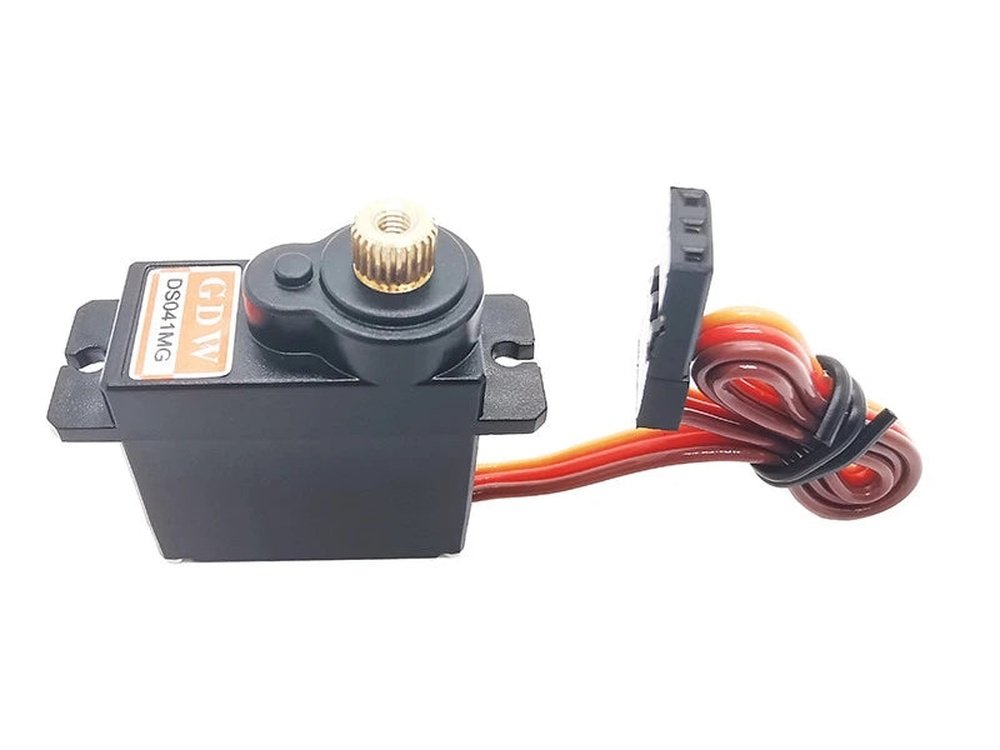

GDW DS041MG 5KG Torque Metal Gear Micro Mini Digital Servo

The GDW DS041MG is a 5KG torque metal gear micro mini digital servo that is perfect for various applications, including FPV aircraft, drones, 450 Helicopters, fixed-wing RC models, and auto robot arms. High-quality coreless motor and meta copper gears for high precision and long lifespan.

Specifications:

• Pulse width 1000-2000us controllable 90°
• Plastic shell, metal gear, coreless motor.
• Can be used for helicopters, small fixed wing, robot development, vehicles, etc.
• 1000us-2000 corresponds to an angle of 90 degrees, the default signal range is 500-2500us-corresponding to 180 degrees
• 3.5kg.cm/0.14sec/60°@6.0V
• 4kg.cm/0.12sec/60°@7.4V
• 5kg.cm/0.1sec/60°@8.4V
• Size: 11.9×32.3×25.4mm
• Weight: 13g
• Stall Torque: 3.1 kg-cm (43 oz-in) @ 4.8V, 3.8 kg-cm (53 oz-in) @ 6.0V, 4.0 kg-cm (56 oz-in) @ 7.4V, 5.0 kg-cm (69 oz-in) @ 8.4V

\
