Happymodel Mobula 6 Race HD Whoop Built-in HDZero AIO5

The Happymodel Mobula6 Race HD BNF is the first 65mm HD brushless tiny whoop that weighs less than 19.4g. With tiny whoops, every gram makes a large difference in flight performance. To achieve such a low weight, HDZero has developed the AIO5, the world's first 5-in-1 AIO that contains an HDZero VTX, FC, ESC, ELRS RX, and 5V1A BEC. Using a single thick PCB rather than a stack of 2 improves durability and simplicity – get ready for a new era of no-compromise tiny whooping in clear digital video!

To keep weight and cost to a minimum, the Race HD BNF features the lightweight HDZero Eco camera. The camera outputs HD composite video (720p) via a single wire instead of a MIPI cable, reducing footprint, cost, and increasing durability. The digital video signal has stable color reproduction and 720p progressive scan video with the stable near-zero latency HDZero is known for.

In order to achieve the goal of extreme weight reduction, HAPPYMODEL used original Japanese RENY screws at all costs and also designed a lighter 5.8G VTX antenna. All these improvements are to make this HD BNF weigh less than 20 grams. We hope you like it.

Specifications:

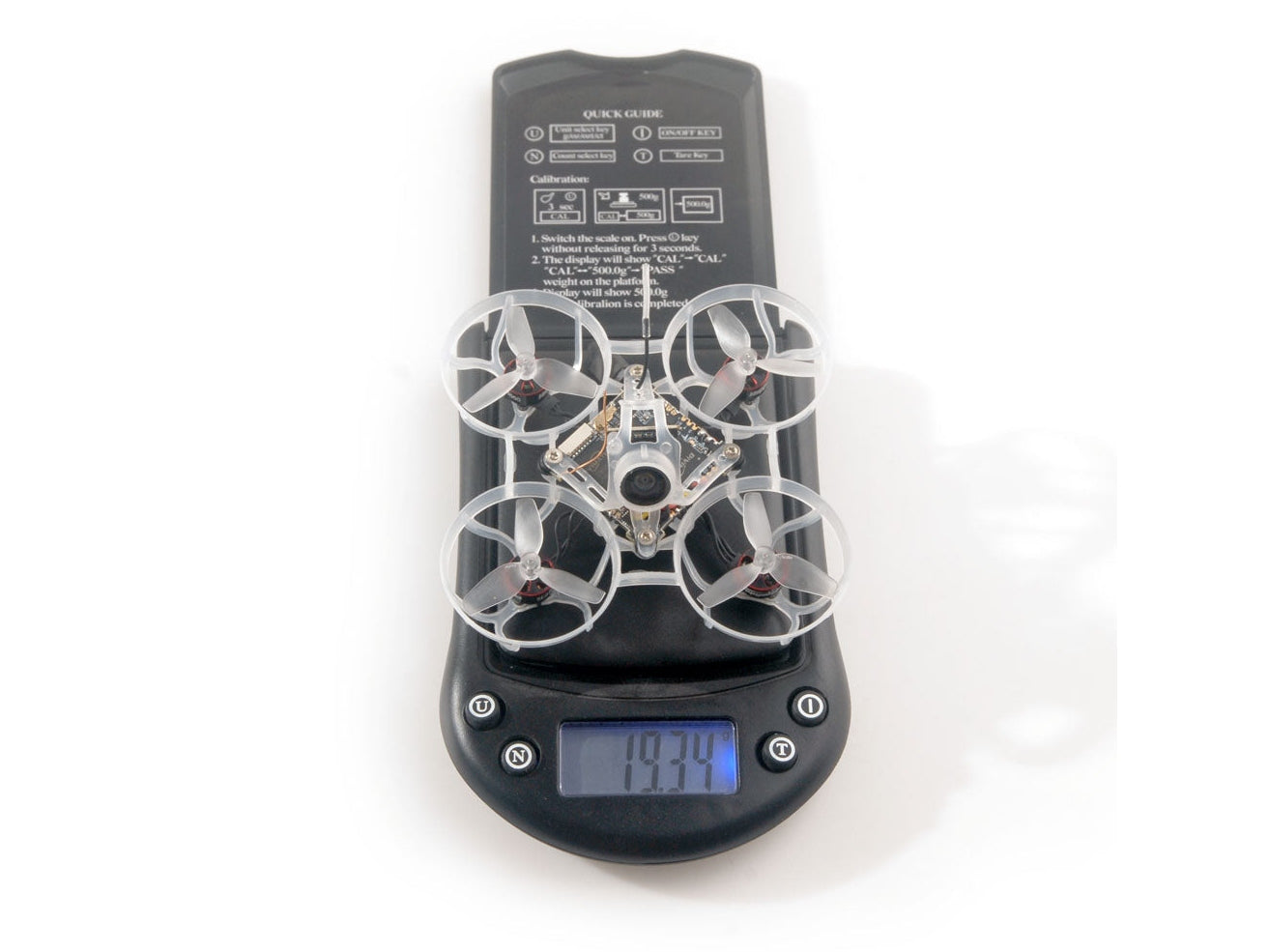

• Weight: 19.3g
• Recommended Battery: 1S 300mAh
• Propeller Size: 31mm
• AIO Flight controller
  • MCU: STM32F411 (100MHz, 512K Flash)
  • Gyro: BMI270
  • Onboard voltage and amperage meters
  • Built-in 5A(each) BLHeli_S 4-in-1 ESC
  • Built-in 5.8G HDZero VTX
  • Built-in SPI ExpressLRS 2.4GHz receiver
  • Built-in 5V 1A BEC
  • Board size:28.5×28.5mm with a 25.5×25.5 mounting hole size
  • Firmware target: CRAZYBEEF4SX1280

HDZero Eco Camera

• Sensor size: 1/3 inch
• Resolution: 720p60 4:3
• FOV: D:150° H:120° V:98°

Motors

• Kv:28000
• Stator diameter: 7mm
• Stator length:2mm
• Shaft diameter: Φ1mm
• Weight:1.5g

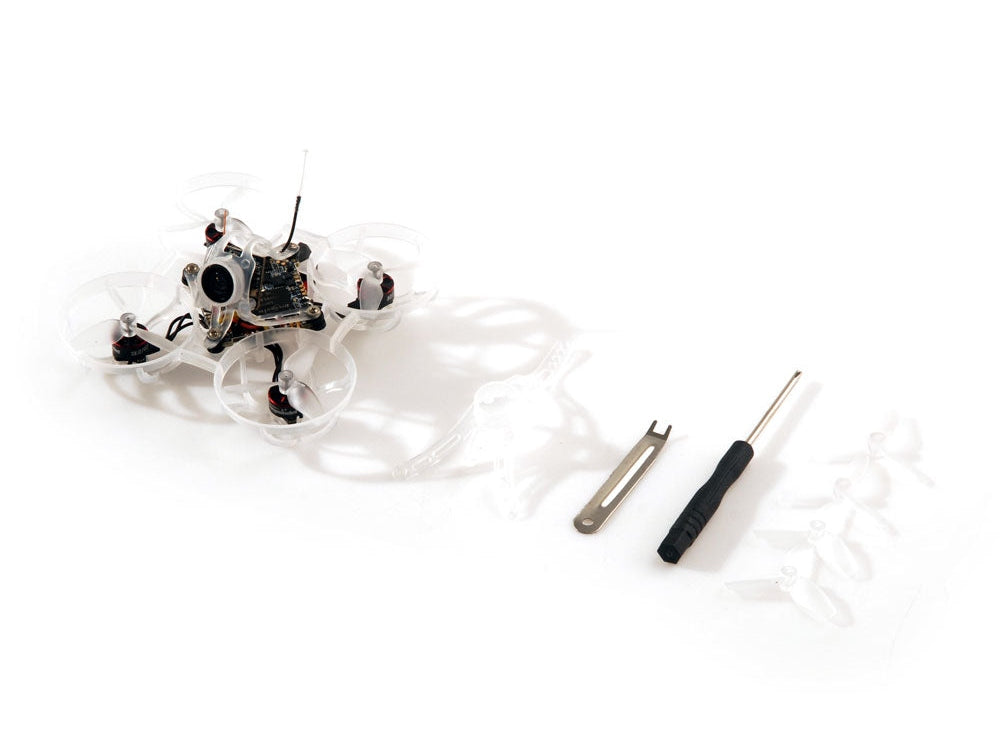

Includes:
1x Happymodel Mobula 6 Race HD Whoop Built-in HDZero AIO5
1x Spare canopy
1x Spare propeller(set)
1x Screwdriver
1x Propeller Disassemble Tool
