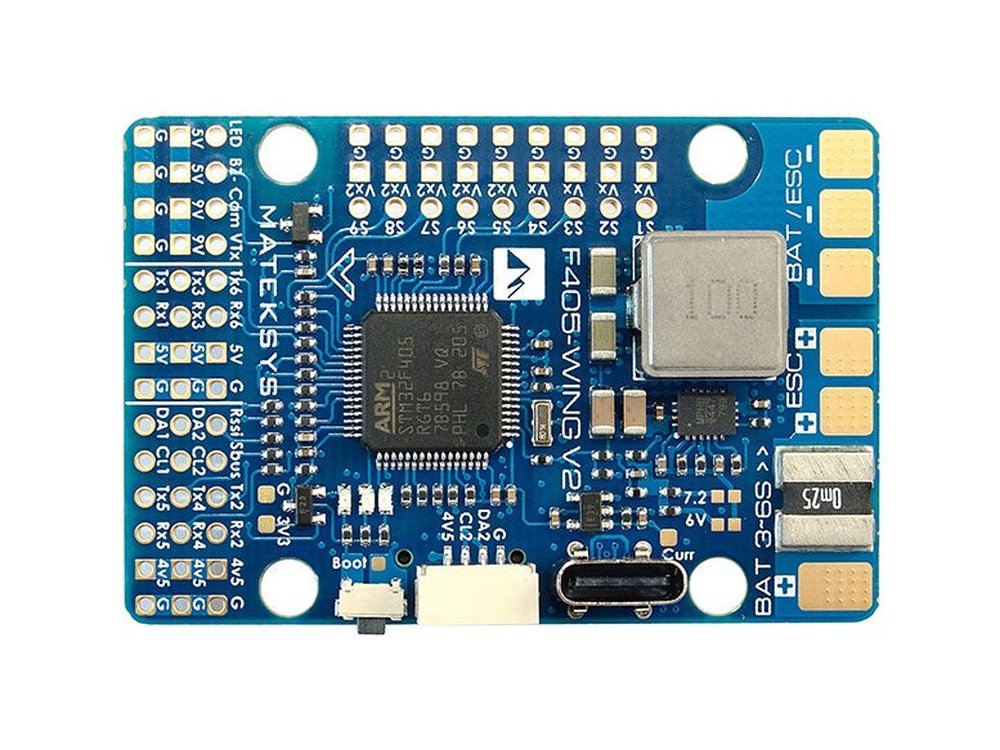

Matek F405-Wing-V2 Fixed Wing Flight Controller
The Matek F405-Wing-V2 is back! This flight controller for fixed-wing planes features the powerful STM32F405RGT6 MCU, ICM426880P IMU, DPS310 Barometer, 6 UARTs, and 10 PWM outputs. With its wide 9-30V DC input range, it can easily handle 3-6s LiPo. Now compatible with both iNav and Ardupilot.
Specifications:
- MCU: STM32F405RGT6, 168MHz , 1MB Flash
- IMU: ICM42688-P
- Baro: DPS310
- OSD: AT7456E

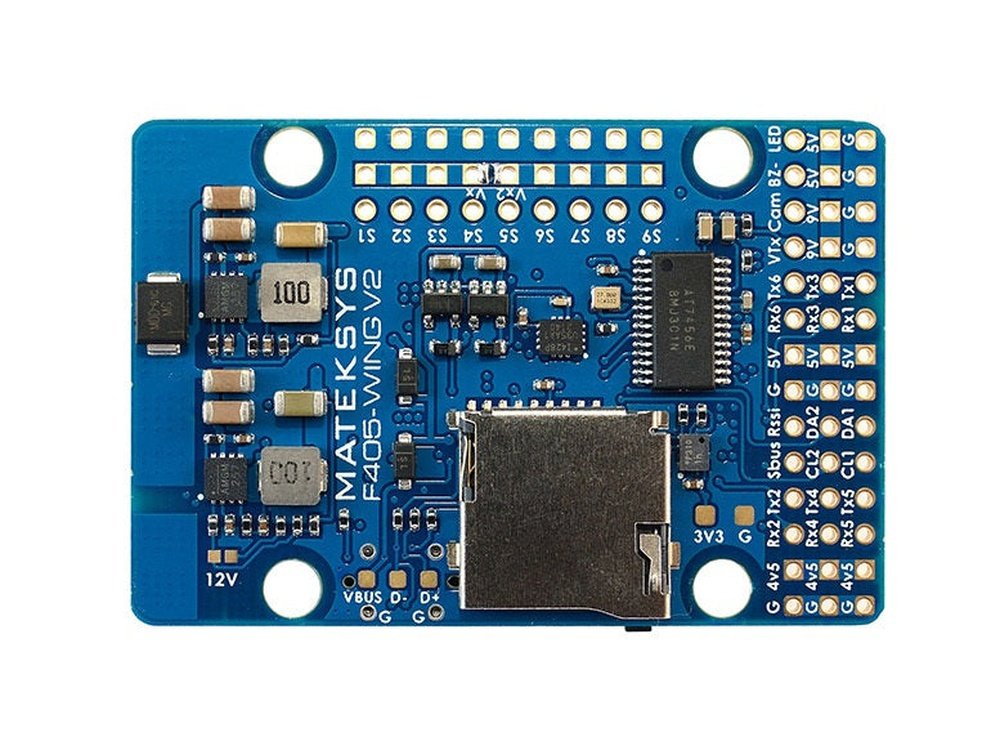

- Blackbox: MicroSD card slot
- 6x UARTs, 1x Softserial_Tx option(INAV)
- 10x PWM outputs
- 2x I2C
- 3x ADC (VBAT, Current, RSSI)
- Built-in inverter for SBUS input
- USB Type-C(USB2.0)

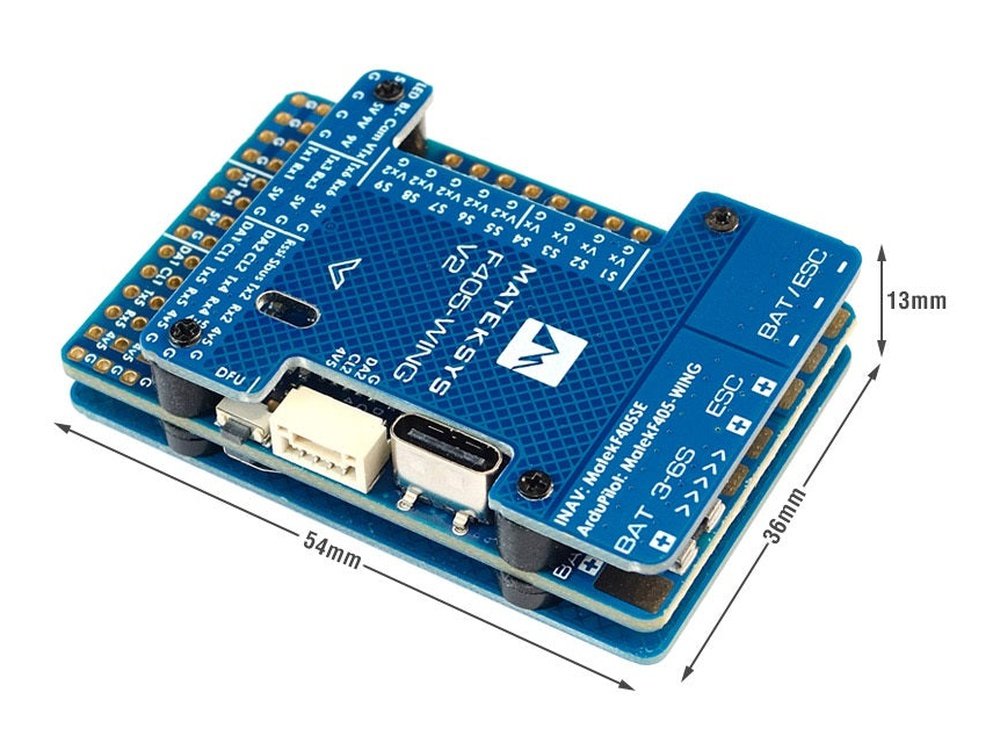

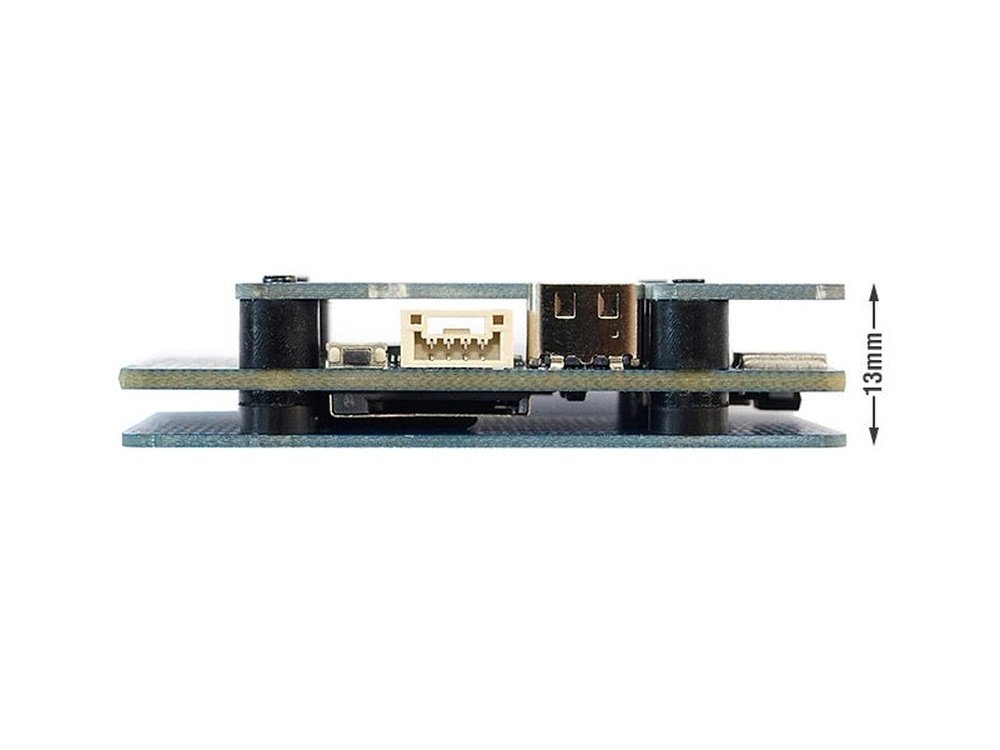

- Dimensions: 54 x 36 x 13 mm
- Mounting: 30.5 x 30.5mm, Φ4mm with Grommets Φ3mm
- Weight: 25g
- ArduPilot: MatekF405-Wing (4.4 or newer)
- iNav: MATEKF405SE (6.0 or newer)
PDB
- Input voltage range: 9~30V (3~6S LiPo) w/TVS protection
- Current Senor: 220A, 3.3V ADC (INAV scale 150, ArduPilot 66.7A/V)
- Sense resistor: 100A continuous, 220A peak
- Battery Voltage divider 1K:10K (Scale 1100 in INAV, BATT_VOLT_MULT 11.0 in ArduPilot)
BEC 5V output
- Designed for Flight controller, Receiver, OSD, Camera, Buzzer, 2812 LED_Strip, Buzzer, GPS module, AirSpeed
- Continuous current: 2 Amps
- Designed for Video Transmitter, Camera, Gimbal ect.
- Continuous current: 2 Amps
- 12V option with Jumper pad
- For stable 9V/12V output, input voltage should > output voltage +1V
BEC Vx output
- Designed for Servos
- Voltage adjustable, 5V Default, 6V or 7.2V options
- Continuous current: 5 Amps, 6A Peak
- For stable Vx output, input voltage should > Vx voltage +1V
BEC 3.3V output
- Designed for external 3.3V peripherals
- Linear Regulator
- Continuous current: 200mA
Includes:
1x Matek F405-Wing-V2 Fixed Wing Flight Controller
1x 20cm JST-GH-4P to JST-GH-4P cable for I2C Port

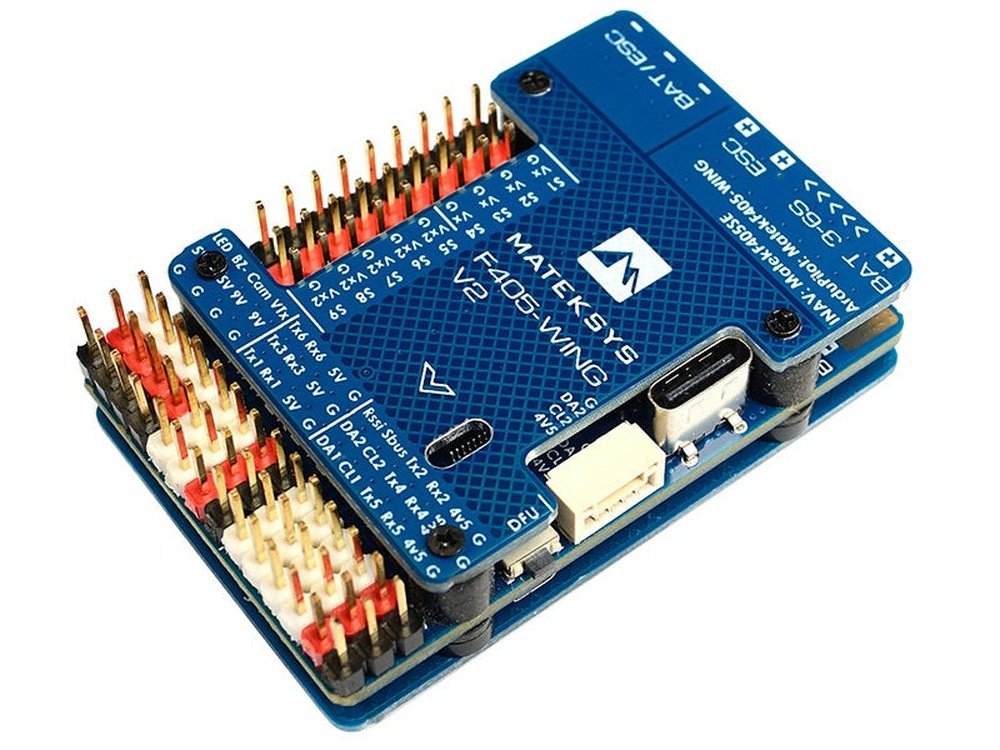

Dupont 2.54 Pins (Board is shipped unsoldered)
