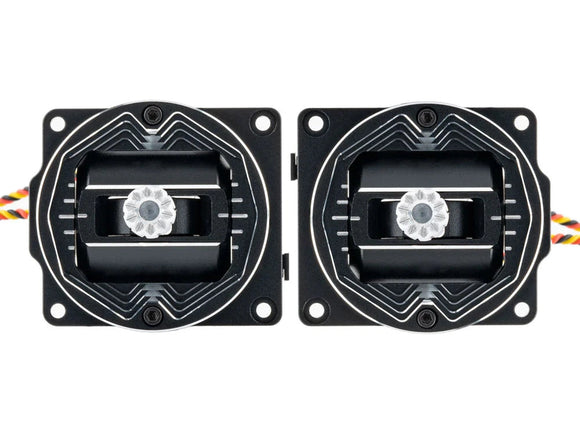

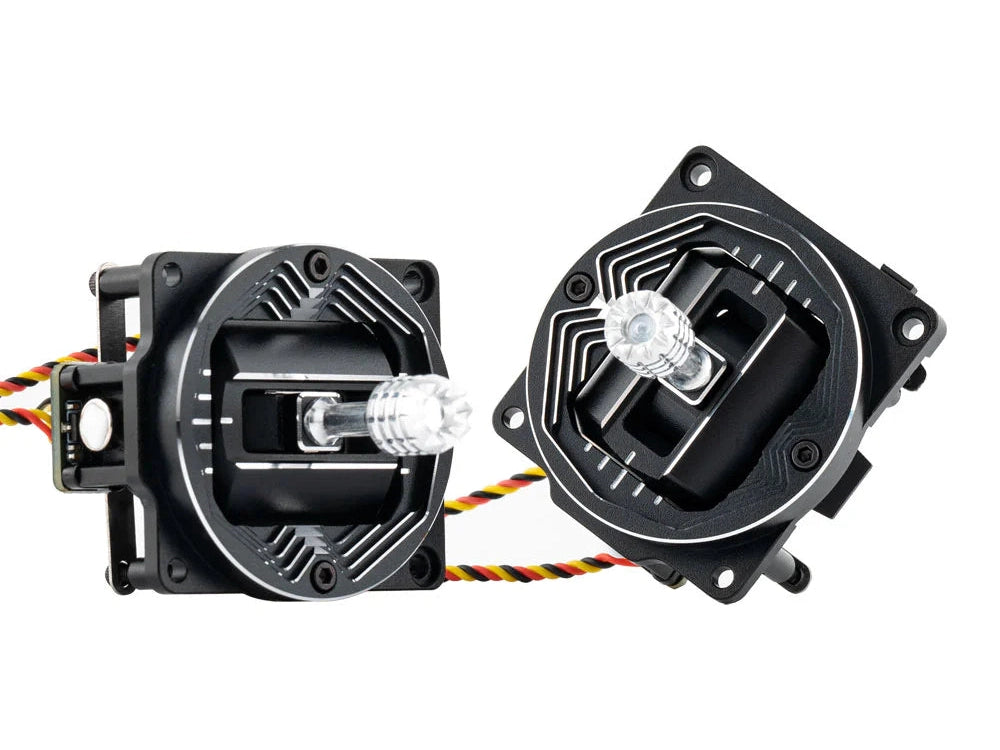

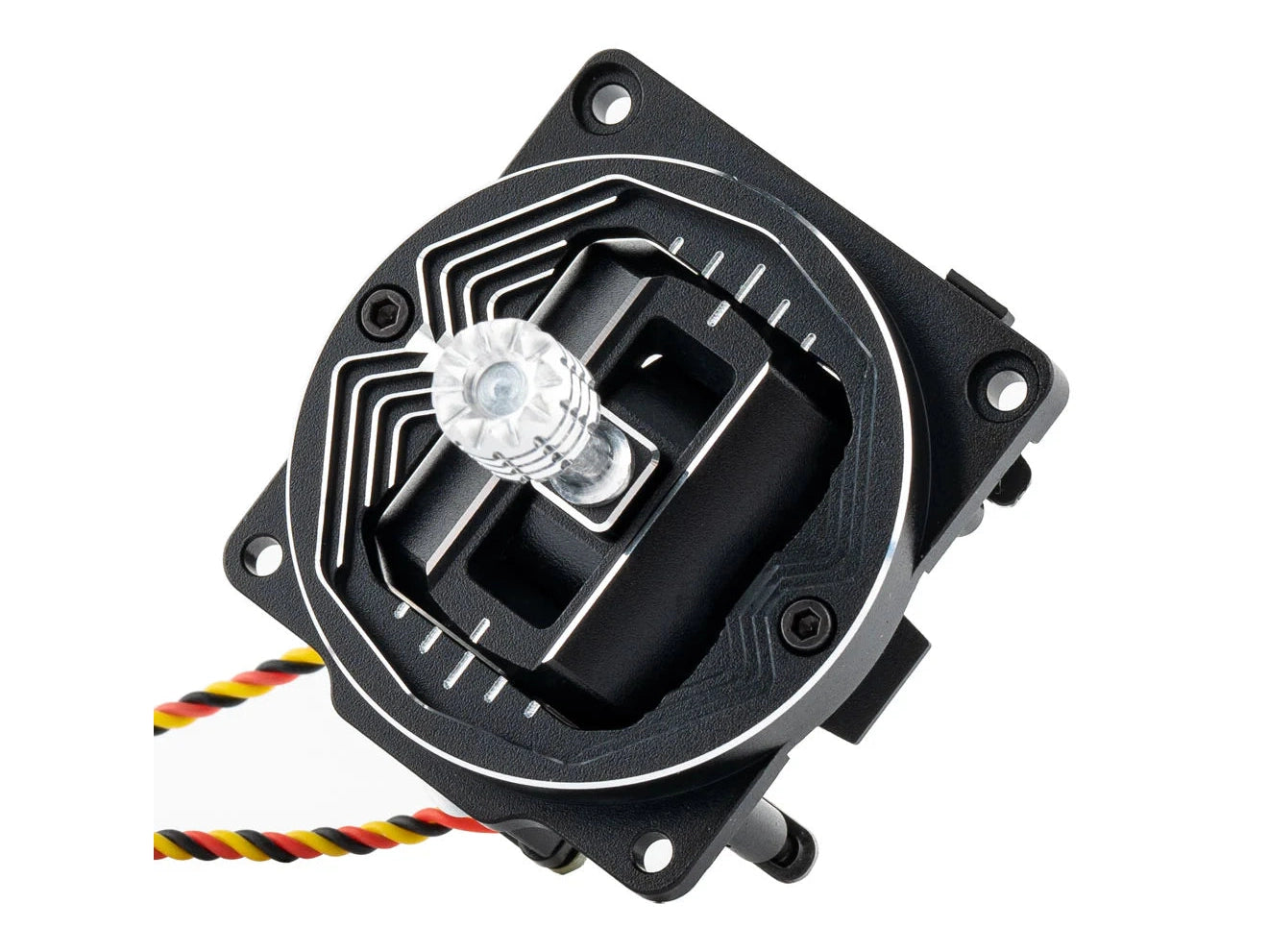

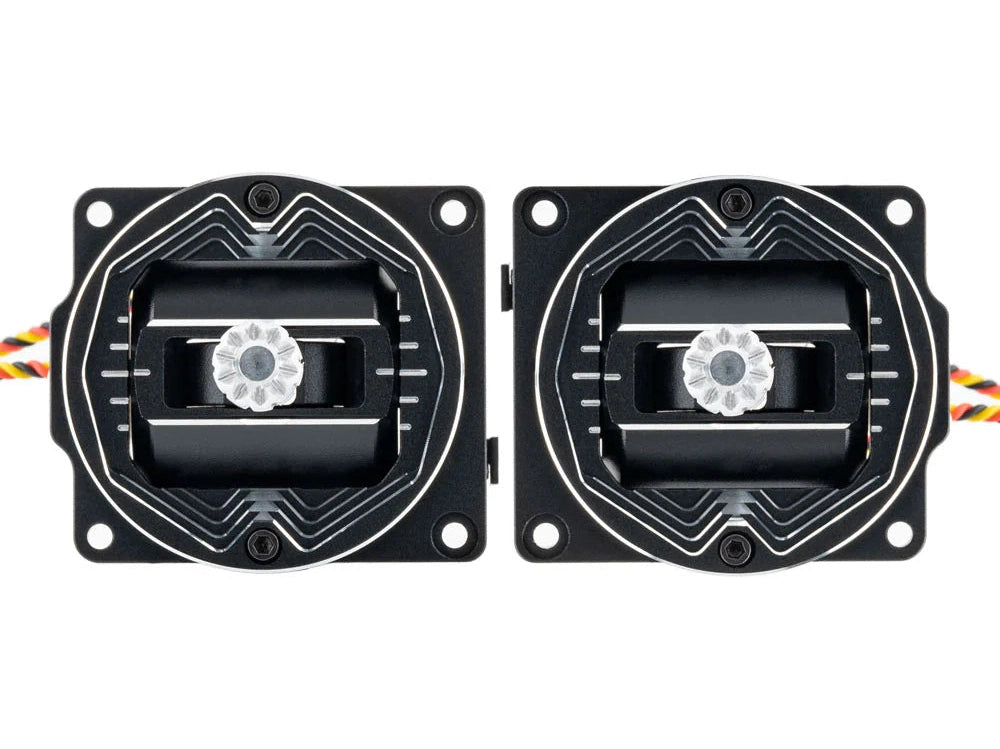

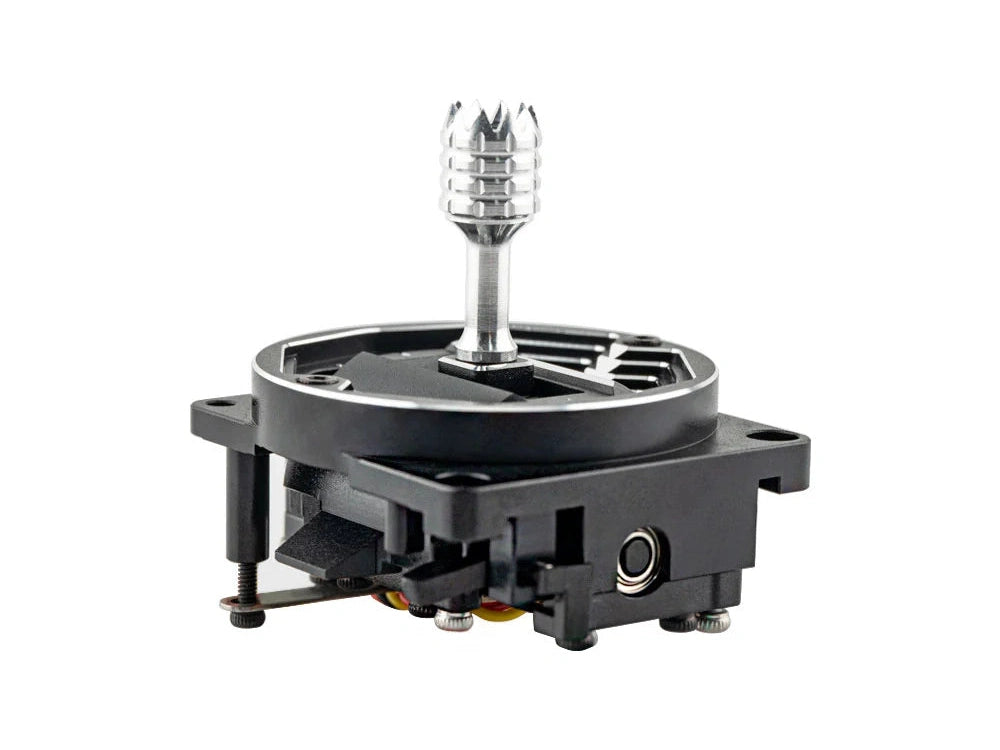

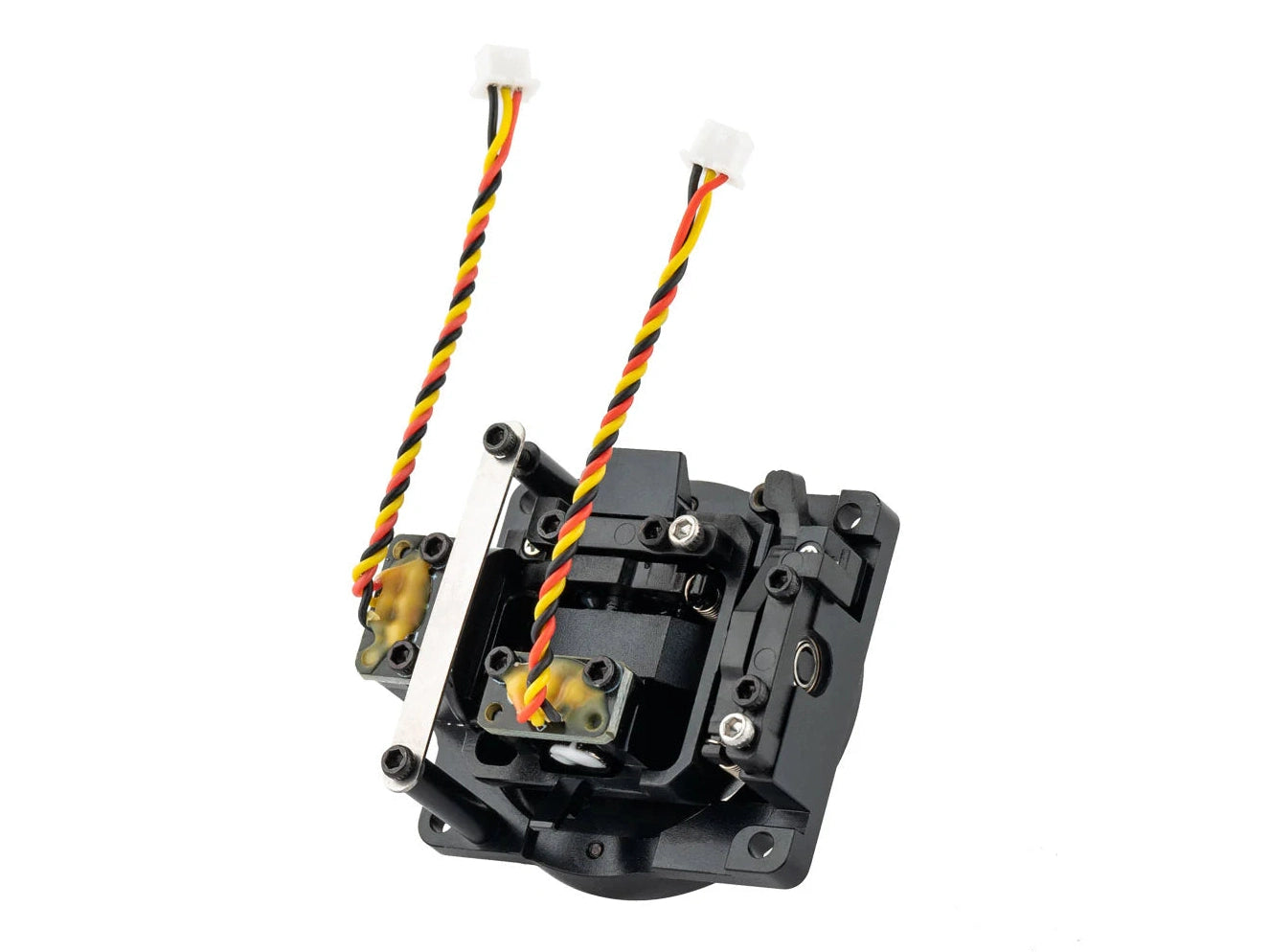

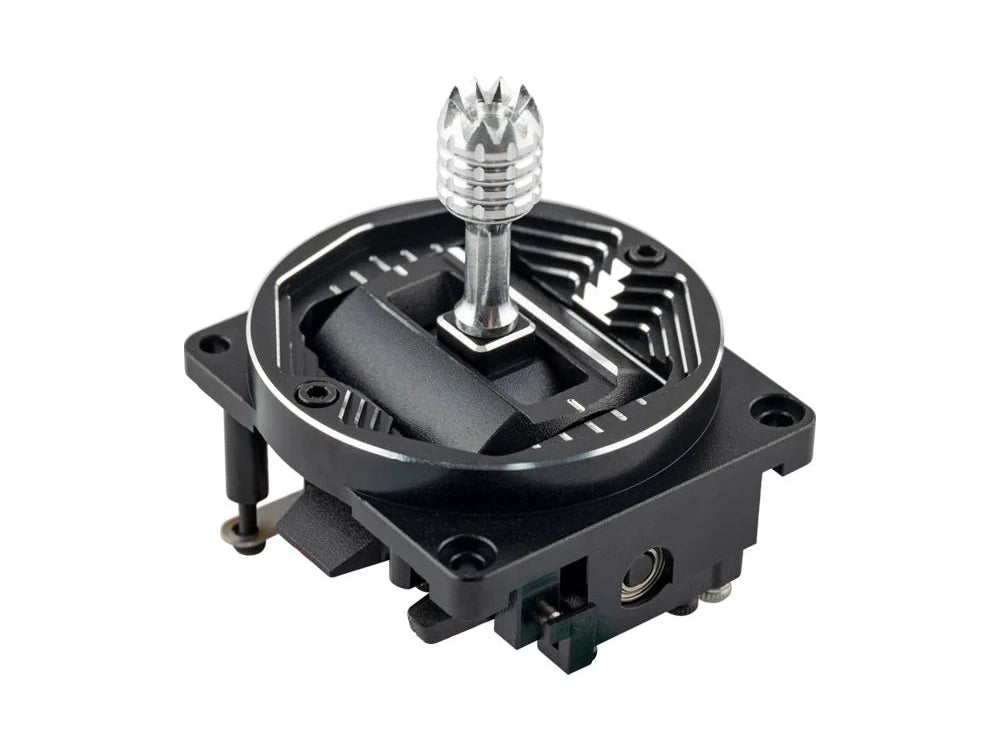

Radiomaster AG01 Nano CNC Hall Gimbals
** Pre-Order - Arriving in October **
Unleash Unrivalled Precision and Control: Introducing the AG01-Nano Hall Effect Gimbals! Your RadioMaster Pocket just got a game-changing upgrade option! RadioMaster, renowned for elevating your RC experience, has shattered expectations once again. By popular demand, the AG01 series of gimbals now has a Nano Option for the popular Pocket controller.
- Made with billet CNC aviation grade aluminum for superior durability and outstanding looks
- Non contact hall sensors with precise centering for accurate control
- Quad precision bearings for unparalleled feel
- Adjustable vertical travel angle (Min. 38°, Max. 54°)
- AG01 NANO Gimbal is specifically designed for the smaller POCKET radio
Specifications:
- Item: AG01 NANO CNC Hall Effect Gimbal
- Sensor type: Non-contact hall effect
- Working voltage: DC 3.3V
- Linearity: Real-time (No latency)
- Adjustable vertical travel range: 38°- 54°
- Self-centering adjustment: Yes
- Mode adjustment: Yes
- Adjustable tension: Yes
- Bearing: Quad precision bearings
- Temperature range: -20°C-85°C
- Size: 42*37*43mm

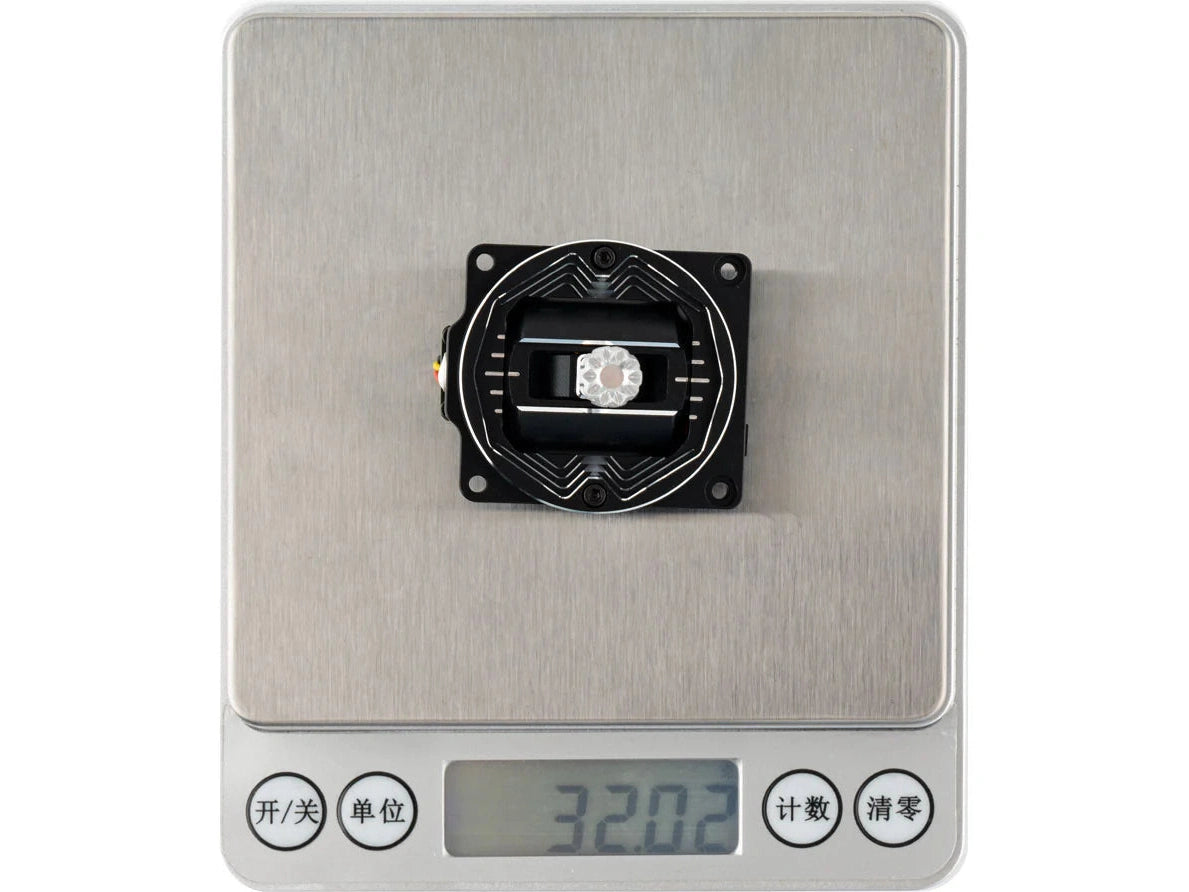

- Weight: 32g(±0.3g)
Precision Engineering Meets Unparalleled Control!
Crafted from billet CNC aviation-grade aluminum and equipped with quad precision ball bearings, the AG01 Nano gimbals deliver unparalleled performance and customization. Experience effortless maneuverability with customizable movement angles ranging from 38° to 54°. Sense the Pinpoint Accuracy with High-speed, high-precision, no-contact Hall effect sensors ensures razor-sharp accuracy and effortless centering. Feel the butter-smooth action from the quad precision ball bearings delivering silky-smooth operation for a truly intuitive flying experience.
Adjustable Gimbals
Dimensions:
Associated Products:
- Radiomaster Pocket Radio
- Radiomaster Pocket Crush ELRS 2.4GHz Radio
- Radiomaster 18650 3200mAh Lithium-Ion Batteries
Includes:
2x Radiomaster AG01 Nano CNC Hall Gimbal
2x L-Shaped Hexagon Socket Screwdriver
4x Hard Tension Springs
8x PB2*6 Screws
2x CM1.6*3 Screws
2x Manual
