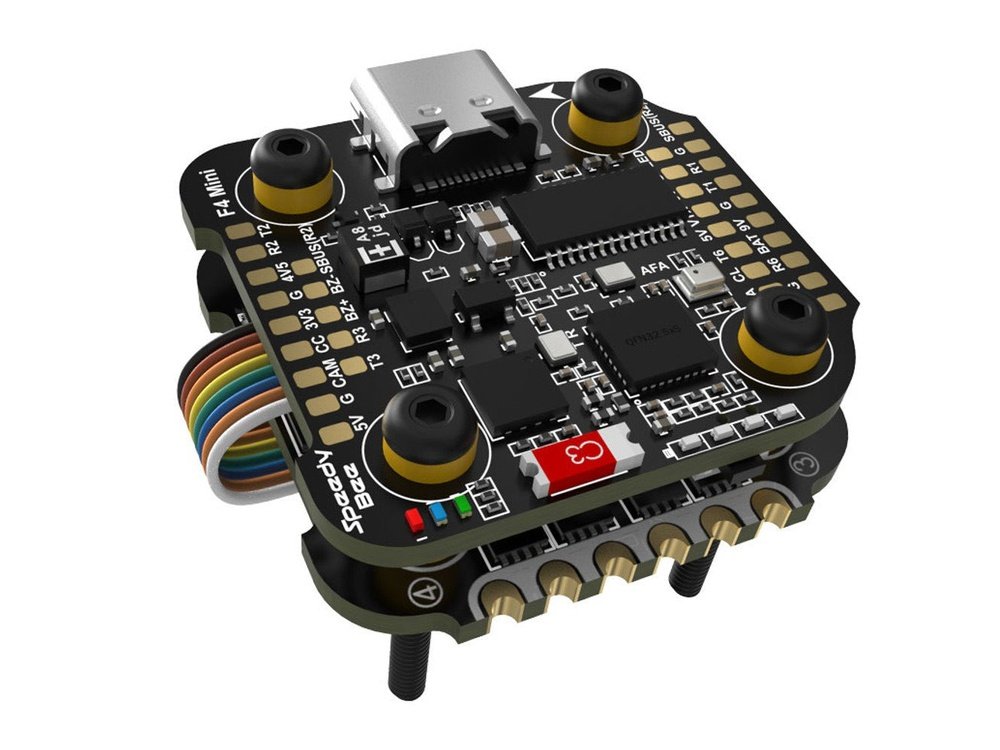

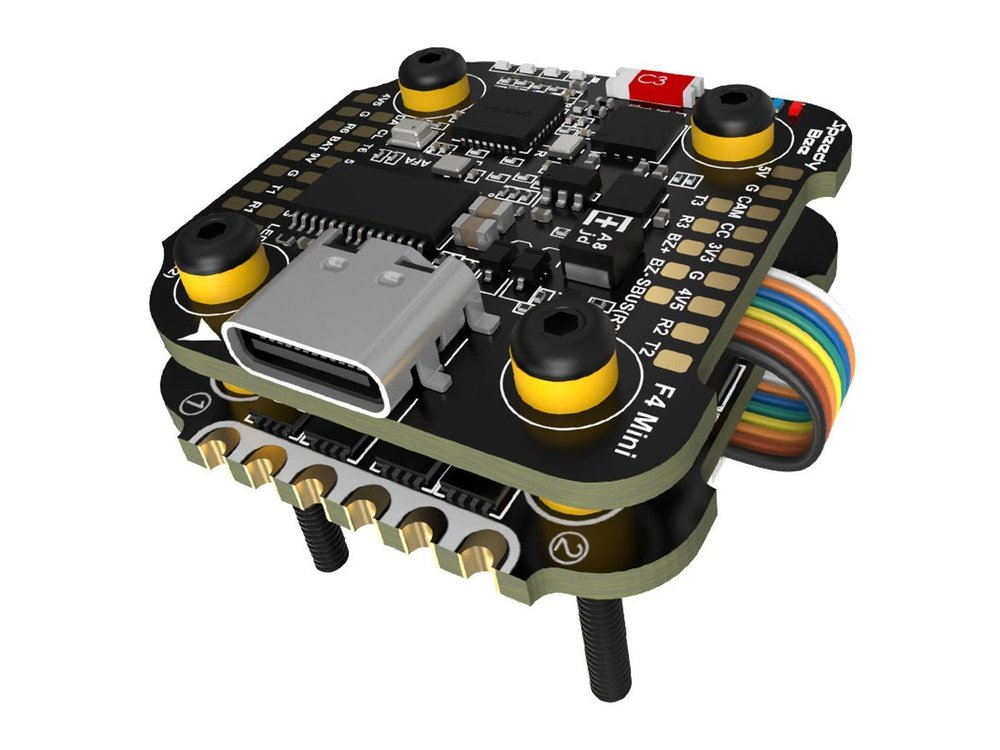

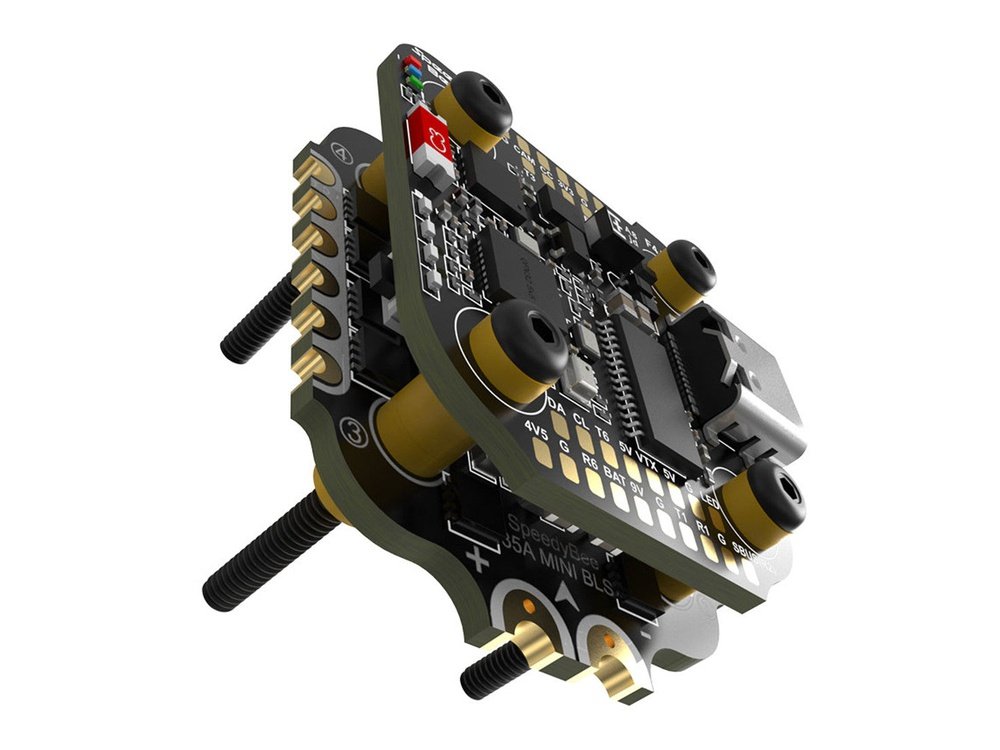

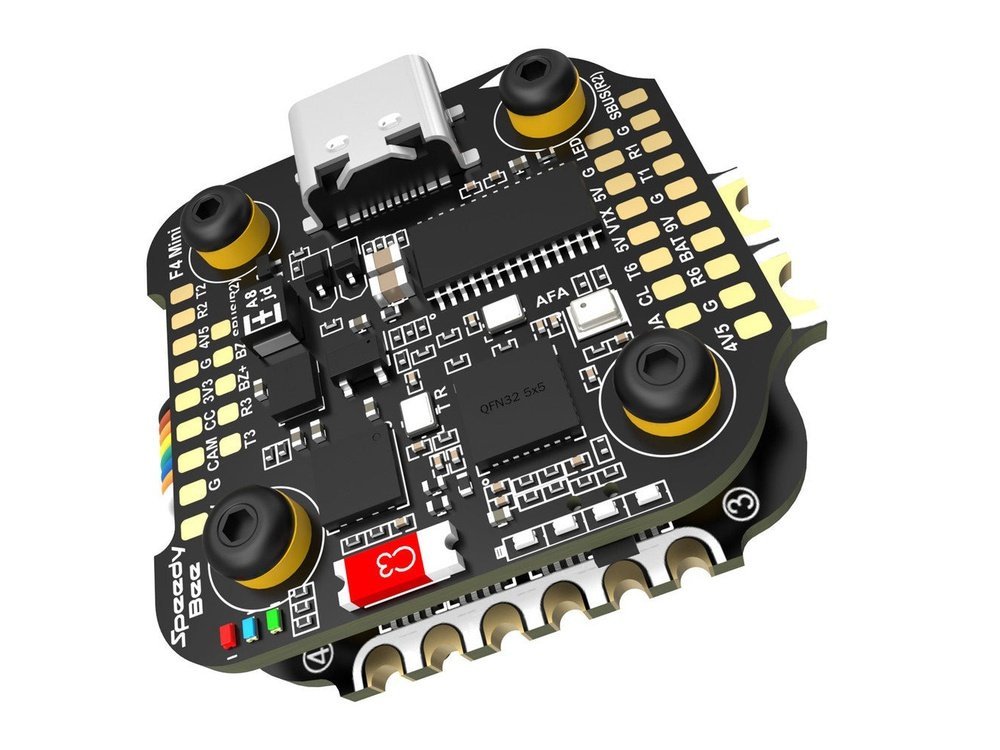

Speedy Bee F405 Mini BLHeli_S 35A 20x20 Stack
The Speedy Bee F405 Mini BLHeli_S 35A 20x20 Stack is the perfect combination for a powerful and reliable build, with its flight controller, 4-In-1 ESC, Bluetooth wireless Betaflight tuning, mini size, and TVS transient suppression diode. Boasting a robust, high-quality build, this stack provides excellent performance and value.
Also available separately:
Specifications:

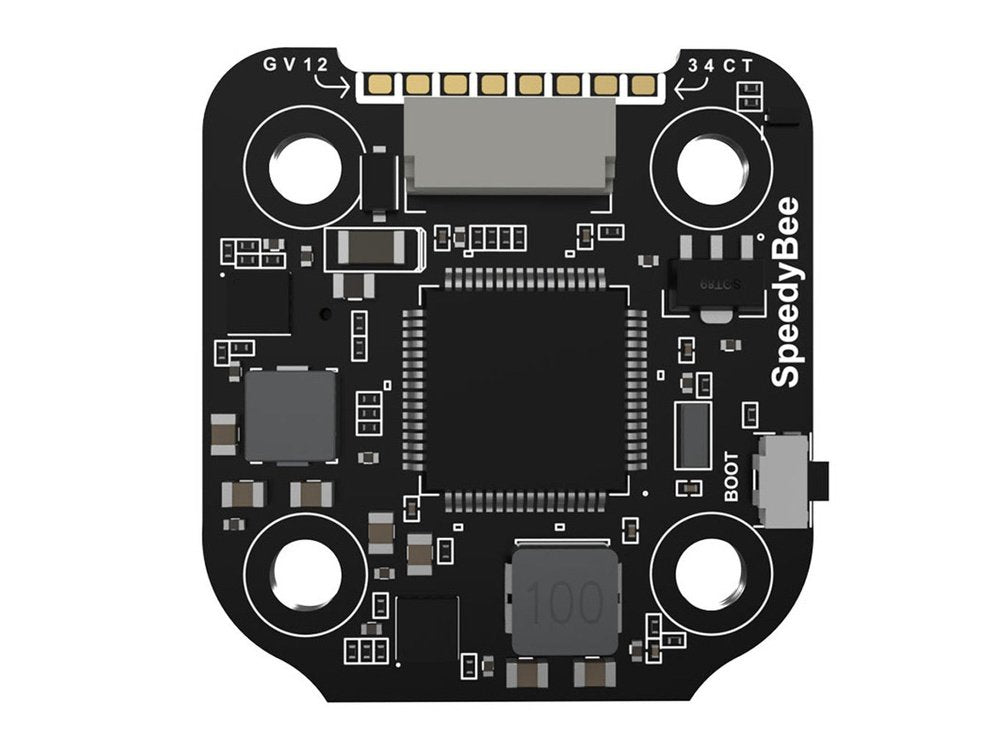

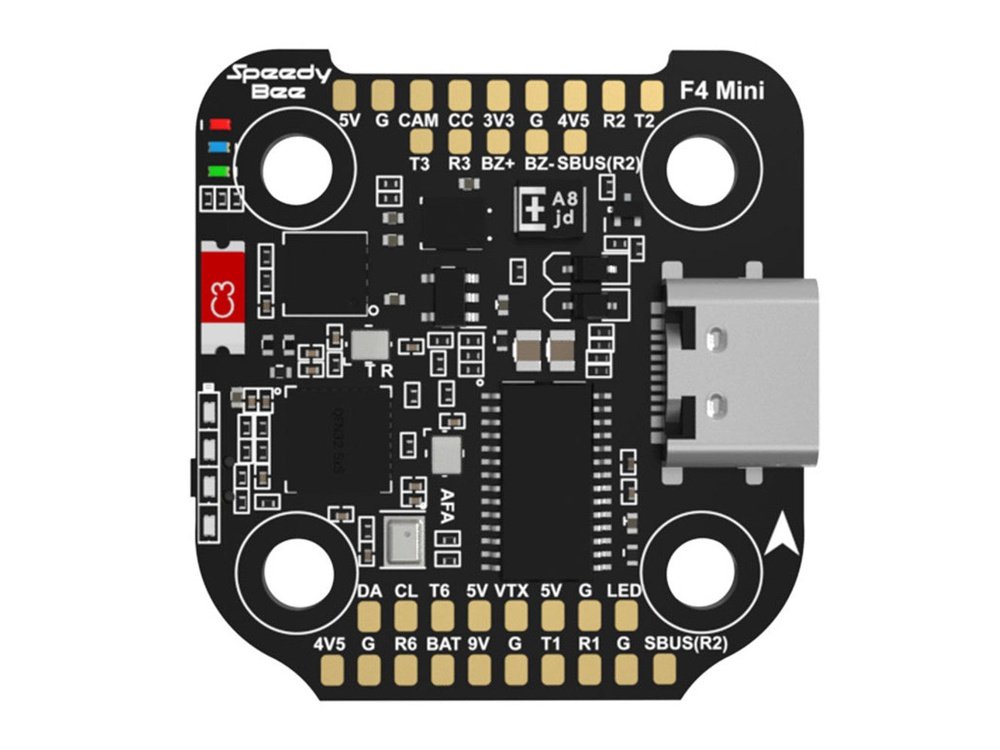

FLIGHT CONTROLLER- MCU: STM32F405
- IMU(Gyro): ICM42688P
- USB Port: Type-C
- Barometer: Built-in
- OSD Chip: AT7456E
- BLE Bluetooth: Supported through Speedy Bee App
- Wireless FC Flashing: Not Supported
- WiFi: Not Supported
- Blackbox: 8MB Onboard Flash
- Power Input: 3-6S LiPo
- 5V Output: 2A
- 9V Output: 3A
- 3.3V and 4.5V Output
- UART: 6 Sets
- I2C: Supported
- LED: Supported
- Buzzer: Supported
- Firmware: Betaflight and iNav
- Target: SPEEDYBEEF405MINI
- Mounting: 20x20mm 3.5mm hole diameter
- Dimensions: 30x32x7.8mm
- Weight: 9.6g

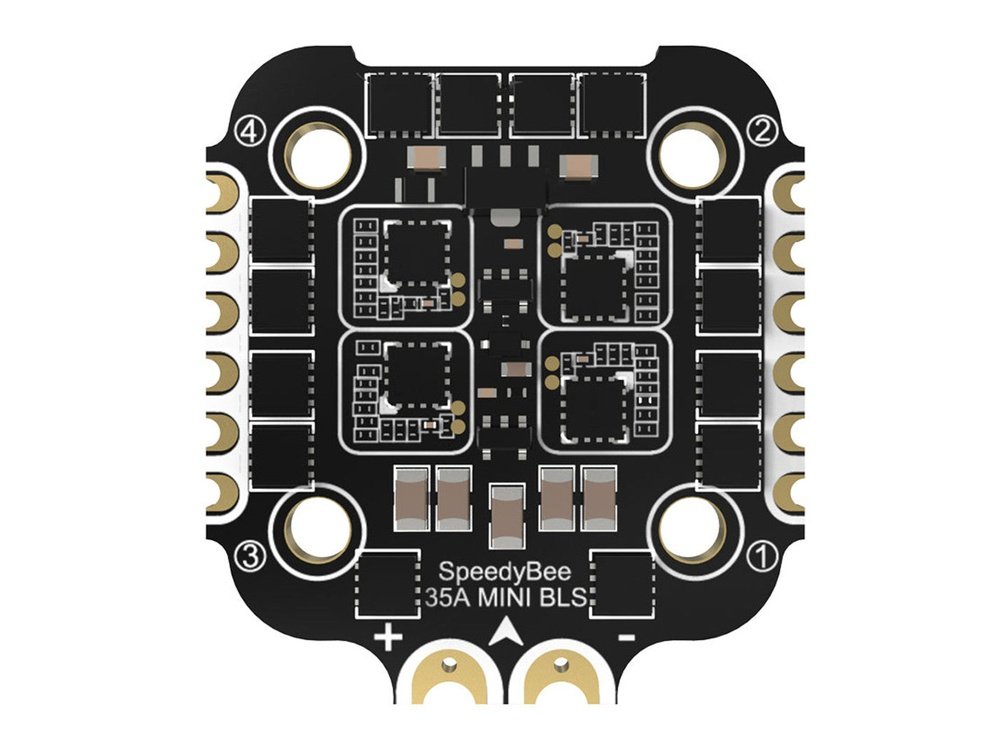

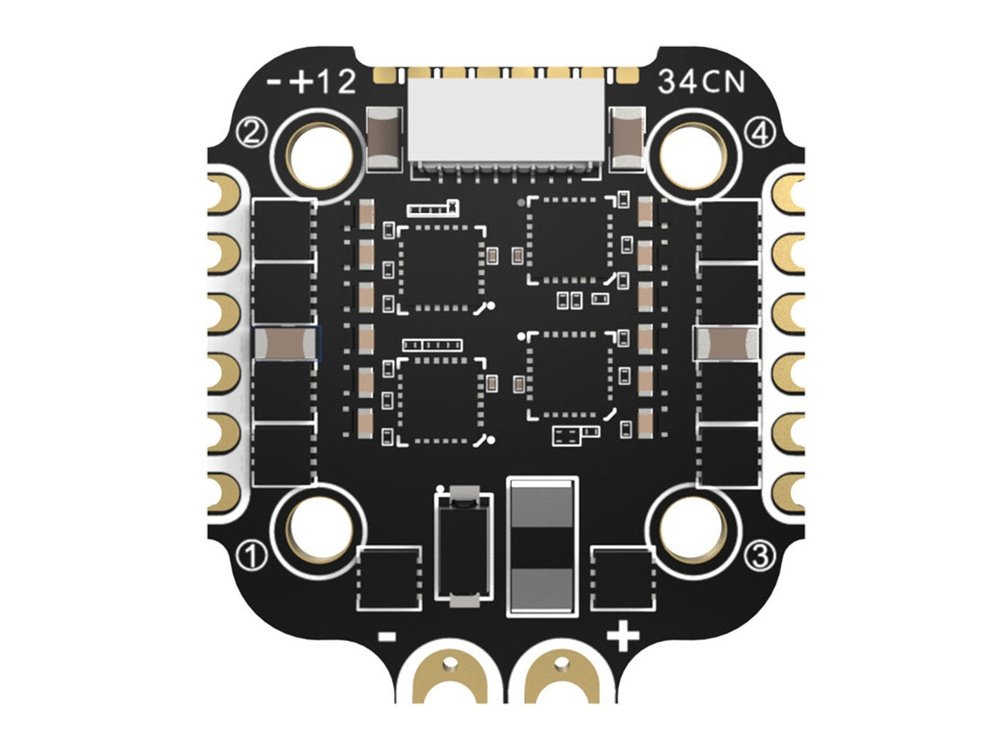

35A BLHELI_S 4-IN-1 ESC
- Firmware: BLHeli_S J-H-40
- Continuous Current: 35A * 4
- Burst Current: 45A (5 Seconds)
- ESC Protocol: DSHOT300/600
- Power Input: 3-6S LiPo
- BEC: No
- Current Sensor: Scale=250 Offset=-500
- Mounting: 20x20mm 3.5mm hole diameter
- Dimensions: 35x35x5.5mm
- Weight: 7.2g
Includes:
1x Speedy Bee F405 Mini BLHeli_S 35A 20x20 Stack
