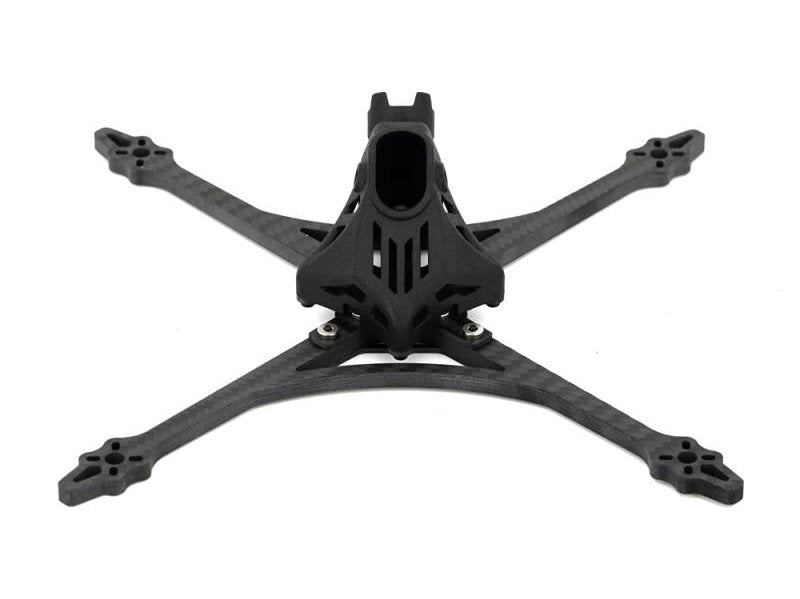

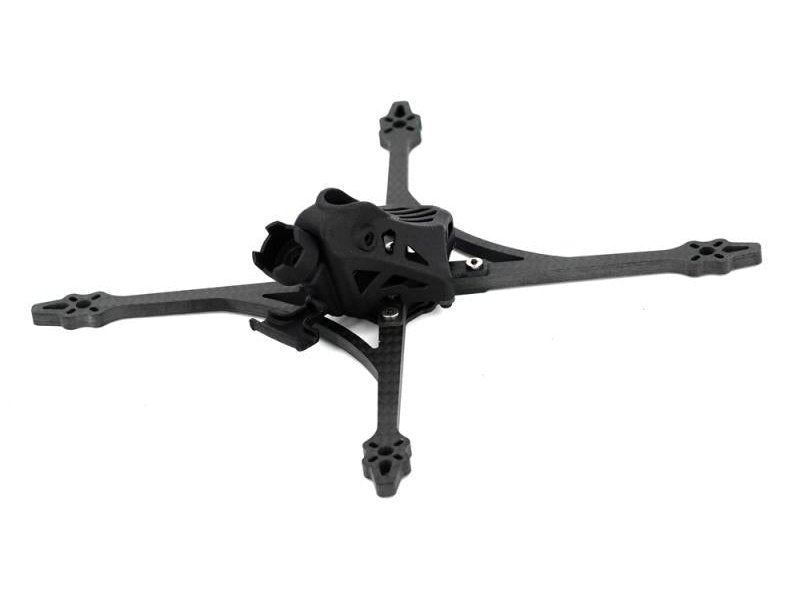

TBS Source PodRacer 5" Frame
The SOURCE PODRACER is an ultralight racing frame, made for speed addicts and grassroots fpv racers. It is designed to maximize speed and minimize drag. It fits and protects all the current toothpick-style FPV components and is optimized for light weight. The SOURCE PODRACER is your perfect race winner and is recommended for pro racing pilots only.
ABOUT THE PROJECT
The SOURCE PODRACER project is a collaborative FPV frame project initiated by Team BlackSheep. The frame is donated to the community to empower creators and makers and integrate best practices and current trends faster into a continuously manufactured product. In return, it allows the local distribution network to have cheap and direct access to a good frame in order to allow them to compete in an increasingly predatory marketplace.
The hope is for this frame to enable broad access to FPV thanks to a low price point, great documentation, and wide availability of compatible parts and accessories, without violating other people’s intellectual property.
GET INVOLVED!- Project discussion: https://github.com/ps915/source_podracer
- Project files: Coming Soon
- 3D Printed files on Thingiverse: Pod
- 3D Printed Parts (STL) Coming Soon
- Wheelbase: 200mm
- Stacking Mounting Plate: 1.5mm
- Bottom Plate: 1.5mm
- Arms: 5mm thick
- Stack Mout: 19 x19mm, 26x26mm, 20x20mm
- Motor Mount: 12 x 12mm & 9 x 9mm
- Frame weight: 47g
- 8 x M2x10mm Countersunk screws
- 4 x M2x12mm Countersunk screws
- 2 x M2x6mm Socket head screws
- 24 x M2x10mm Socket screws

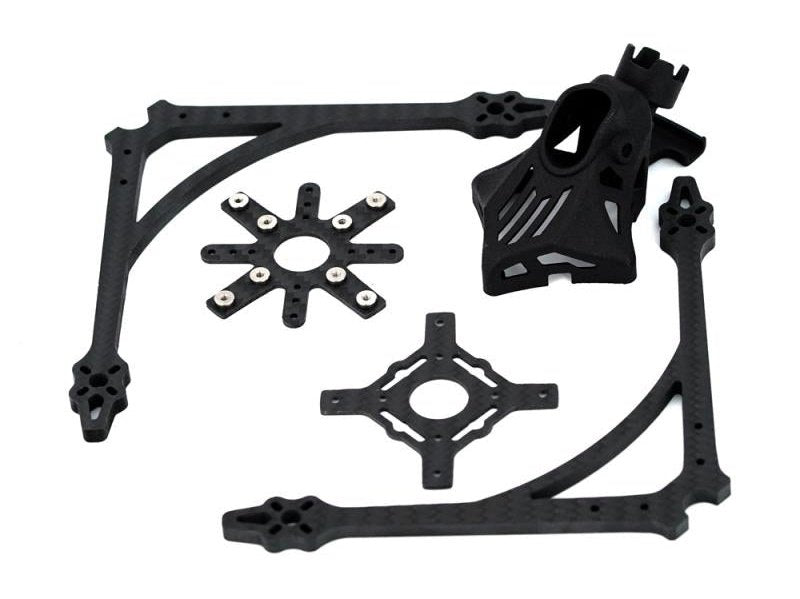

- 1 x 1.5mm Carbon Fiber Top Plate
- 1 x 1.5mm Carbon Fiber Bottom Plate
- 2 x 5mm Carbon Fiber Arms

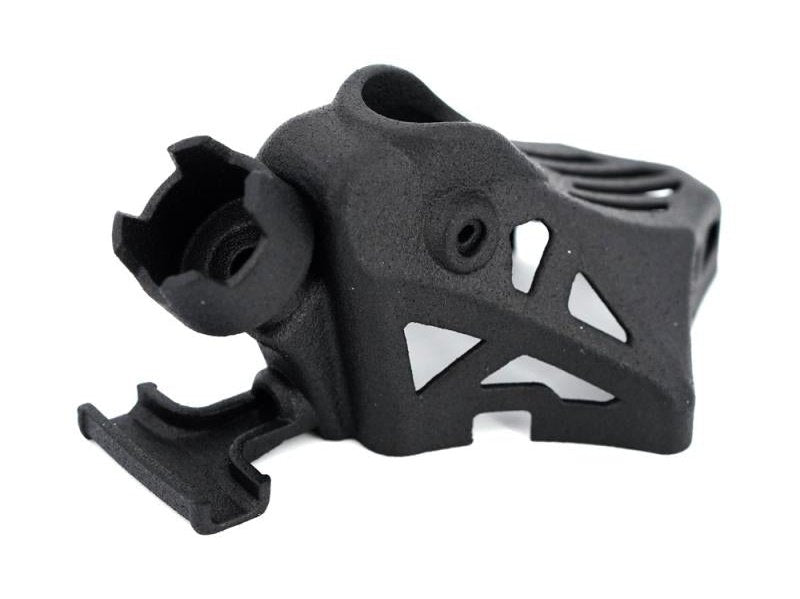

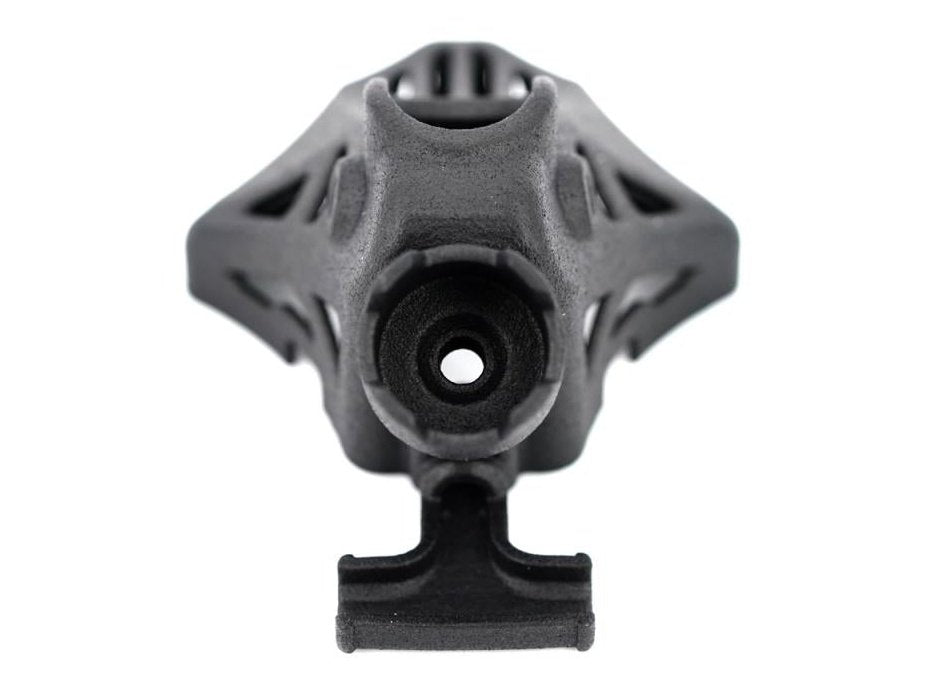

- Black Nylon 3D printed canopy
Includes:
1x TBS Source PodRacer Frame Set
1x Nylon SLS Printed Pod
1x Hardware/screw Set
