Walksnail Avatar HD Pro Kit Dual Antenna Version

Introducing the Walksnail Avatar HD Pro Kit with Dual Antennas. Offers improved low-light image and dual antennas ensure smoother, more stable transmission.  With built-in 32G storage, capture all the action in stunning 1080P at 120FPS. Improved versatility with 20x20 and 25x25 mounting holes for the VTX unit and quality and durability enhancements of the PCB board and shell.

Features:

• Dual Antennas
• Compatible 4K
• FOV160°
• 6V-25.2V
• 4km range
• 22ms low latency
• Built-in 32G storage
• High frame starlight
• 1080P 120fps compatibility
• Sony Starvis Ⅱ Technology

Specifications:

CAMERA

• Model Avatar HD Pro Camera
• Image Sensor 1/1.8-Inch Sony Starvis Ⅱ Sensor
• Resolution 1080P/60fps;720P/120fps,720P/60fps;1080P/120fps compatibility;
• Ratio 16/9; 4/3
• Lens 8Mp
• FOV 160°
• Aperture F1.6
• Shutter Rolling shutter
• Min.Illumination 0.00001Lux
• Weight 9.5g
• Dimensions 19*19*24mm
• Coaxial Cable 140mm

VIDEO TRANSMITTER

• Model Avatar V2 Pro Module(Dual Antenna)
• Communication Frequency 5.725-5.850GHz
• Transmitter Power (EIRP) FCC:<30dBm; CE:<14dBm; SRRC:<20dBm; MIC:<25dBm
• 1/O Interface JST1.0*4(Power in)JST0.8*6(USB)
• Mounting Holes 25.5*25.5mm; 20*20mm
• Dimensions 33.5*33.5*10.5mm
• Storage 32G
• Recording 1080p/720p
• Weight 15.4g
• Operating Temperature -20-40℃
• Channels 8
• Wide Power Input 6V-25.2V
• Supported FC System Betaflight; Inav; Fettec; ArduPilot;Kiss
• OSD Canvas mode
• Latency Average delay 22ms

AVATAR V2 ANTENNA

• Polarization LHCP
• Frequency range 5600MHz-6000MHz
• Gain 1.9dBi
• VSWR ≤1.5
• Input Impedance 50Ω
• Interface IPEX-1
• Size R15 X 45mm(without cable)
• Weight 2g

• The Avatar HD system uses H.265 code, an industry-leading technology, to provide 1080p FPV image quality with low latency. Support 1080P/60FPS, 720P/120FPS.

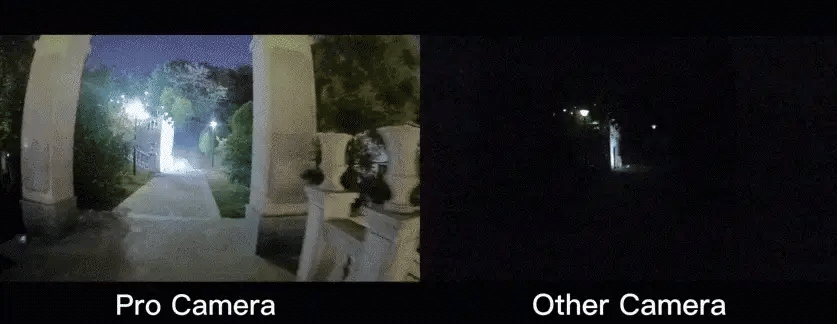

• Featuring a 1/1.8 inch Sony Starvis >Ⅱ sensor, this camera delivers excellent night vision that's just as clear as day.

• The camera supports Gyroflow for smooth and stable video quality.

• The kit includes 20mm x 20mm and 25mm x 25mm mounting holes for greater compatibility with a wider range of FPV drone models.
• Updated the design of PCB board and shell, improved the quality of VTX, more durable.
• Optimized the installation place of the antenna, so as to better protect the VTX.
• The position of the frequency binding button has been changed to make the frequency binding operation more convenient.
• A spare pad is added to provide two power connection modes.

• New VTX with enhanced TVS protection and support for up to 6S. With a wide input voltage range of 6V to 25.2V, our VTX delivers unmatched stability. Enjoy unparalleled performance and take your FPV adventures to new heights with our cutting-edge technology.

• The Avatar VTX comes with 32g built-in storage it can record 1080p or 720p HD flight videos without interference. 32G built-in storage, recording video time increased by 4 times.

• It supports high frame rate and standard frame rate at the same time. Under high frame rate, the average delay is 22ms.

• Designed to carry dual antennas to achieve more stable and powerful signals. The quality of the antenna is upgraded, and the working performance of the whole frequency band is more stable.

Includes:
1x Walksnail Avatar HD Pro Camera
1x Walksnail Avatar HD Pro V2 VTX Dual Antennas
1x USB Transfer Extension Cable
1x 4-Pin Silicone Cable
8x M2*4mm Screws
4x M2*5mm Screws
4x M2*6mm Screws
4x M2*14mm Screws
4x M2*5*0.5mm Gasket
