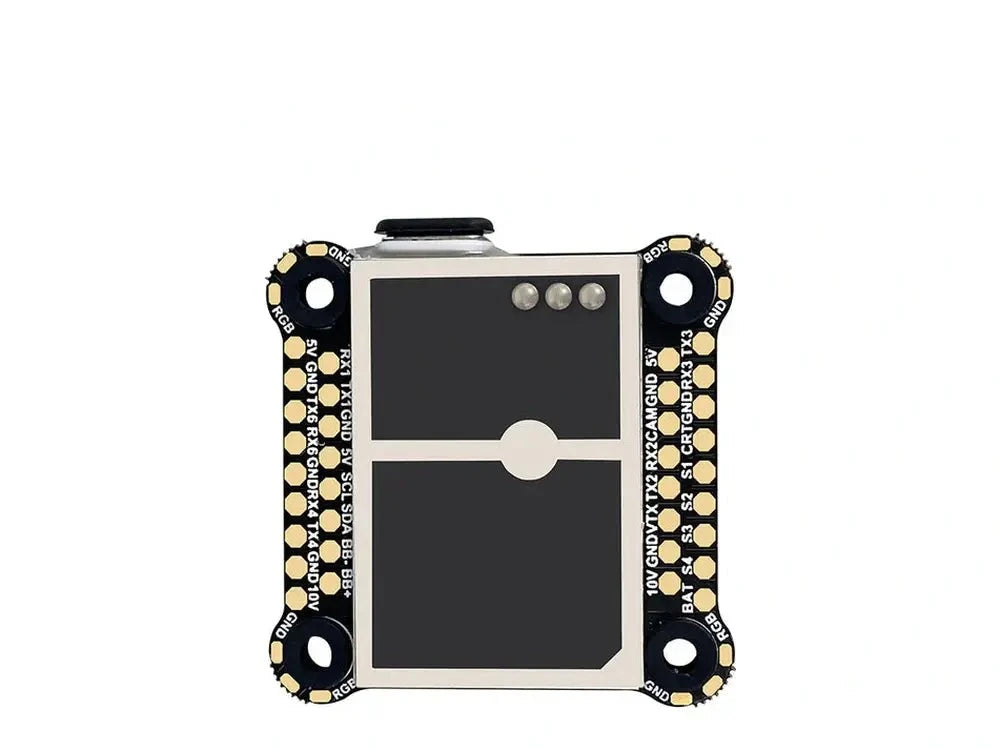

DarwinFPV Cement Ultra Durable F7 Waterproof Flight Controller
DarwinFPV Cement Ultra Durable F7 Waterproof Flight Controller is the top flight controller launched by the Darwin team for professional pilots. It completely solves the industry problem of poor reliability of FPV drones, allowing you to fly in any environment and greatly improving the fun of flying. Satisfy your various creative inspirations!
Includes many novel features such as high thermal conductivity heat dissipation shell, glue filling inside for waterproof and impact-resistance, ultra-high current MOS bus technology with multiple hardware protections. This ensures stability and reliability in extreme environments.
Features:
- IP67 dust and waterproof rating, capable of withstanding immersion in 0.5 meters of water for 30 minutes without harm.
- Crafted using the highest-grade components, providing you with an unparalleled experience and top-tier enjoyment.
- F722 main control chip boasts incredibly strong computing power, allowing for unrestricted full configuration operation.
- Multiple protections including soft-start protection, reverse connection protection, short circuit overcurrent protection, and over-temperature protection ensure double the safety.
- MPU6000 and ICM42688 gyroscopes optional
- Onboard 4G massive black box storage
- Onboard Pit Switch module
- Onboard multi-level LED indicator lights for quick inspection of flight controller operation status.
Specifications:
- MCU: STM32F722
- Blackbox: 4G
- Motor Ports: M1 - M8
- Serial Ports: UART1 - UART6
- Firmware: DARWINF&22HDV2 (BetaFlight)
- Gyro: MPU6000/ICM42688
- OSD: AT7456E
- Input Voltage: 3-8S LiPo
- BEC: 10V/3A 5V/3A
- USB: Waterproof USB-C
- I2C: YES
- RGB: 4x RGB Pads
- Buzzer: Yes
- Mounting: 30.5x30.5mm
- Dimensions: 39.5x39.5x4mm
- Weight: 10.1g
Includes:
1x DarwinFPV Cement Ultra Durable F7 Waterproof Flight Controller
1x 30mm ESC Cable (8P)
1x 65mm Analog VTX Cable (4P)
1x 65mm GPS Cable (6P)
1x 65mm Receiver Cable (4P)
1x 65mm HD VTX Cable (6P)
4x M3*4.5mm Shock-Absorbing Balls (Installed on FC)
1x Sticker
