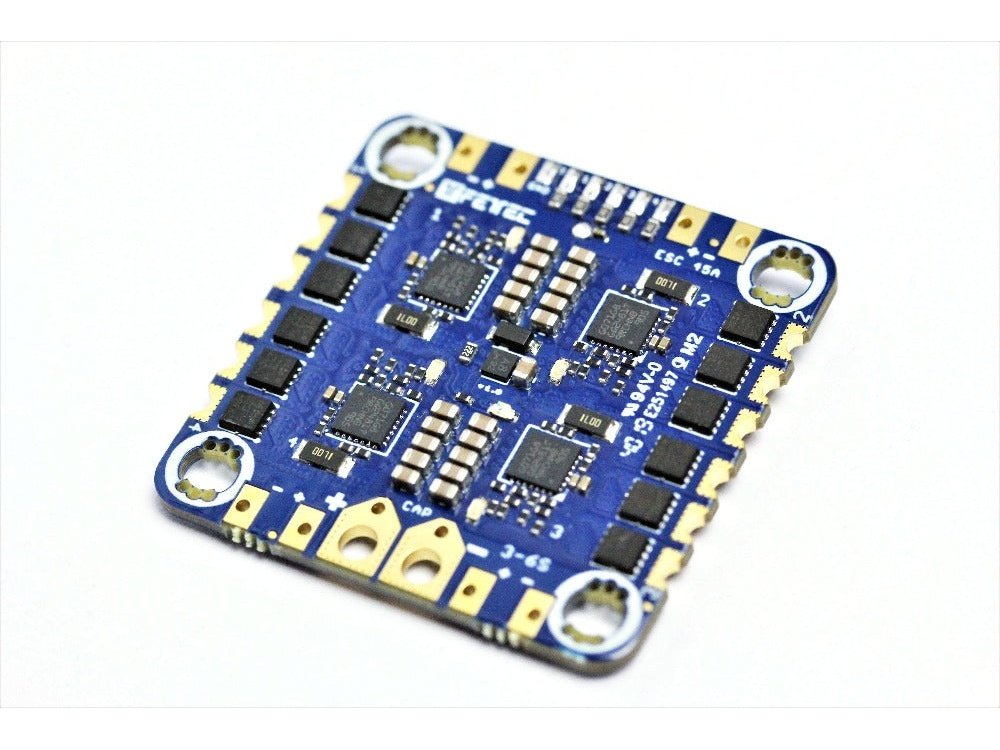

FETtec 4-In-1 45A DShot 2400 ESC

  • $84.99
    Unit price per



Now shipping V1.2

FETtec has released a 4-In-1 6S 45A DShot 2400 ESC to complement the FETtec KISS FC and KISS FC.  With full sine wave control and all the latest features, this is the perfect ESC to pair with the new flight controller.

Specifications:

  • Active current limiting @ 45A
  • Input voltage: 3S-6S
  • High-quality 40V MOSFETs
  • STM32G071 @ 64MHz
  • 128 kHz Motor PWM
  • Full sine wave control
  • Soldering holes for up to 5 additional capacitors
  • KISS FC Passthrough
  • Betaflight Passthrough (available in 4.1)
  • Automatic input signal detection:
    • Dshot 300-2400
    • PWM
    • OneShot 42/125
    • OneWire BUS with up to 8kHz looptime (one cable for all Motorsignals and Telemetry)
    • In development: Crossfire, SBUS

For 6S LiPos we recommend using a FETtec Spike Absorber

Dimensions:

FETtec 45A 4-In-1 ESC

Includes:
1x FETtec 4-In-1 45A ESC V1.2
1x Capacitor 50V, ESC < 1ohm (477CKE050M)
1x JST-SH 8 Pin Cable

Download Manual

Download FETtec ESC Configurator

Download Betaflight Passthrough Guide
