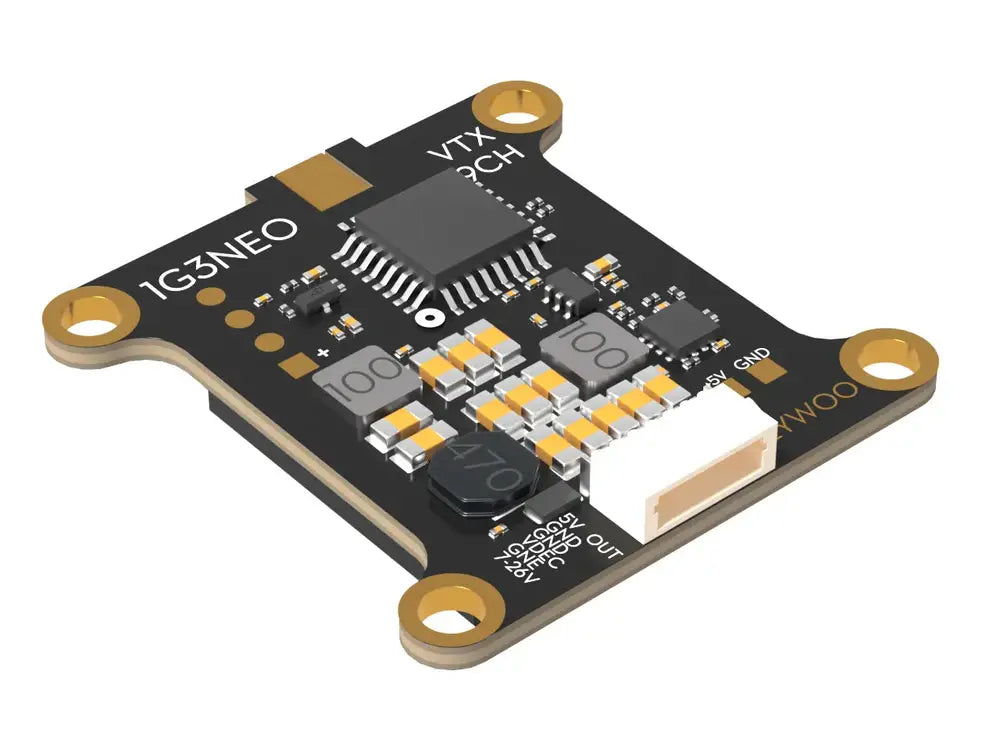

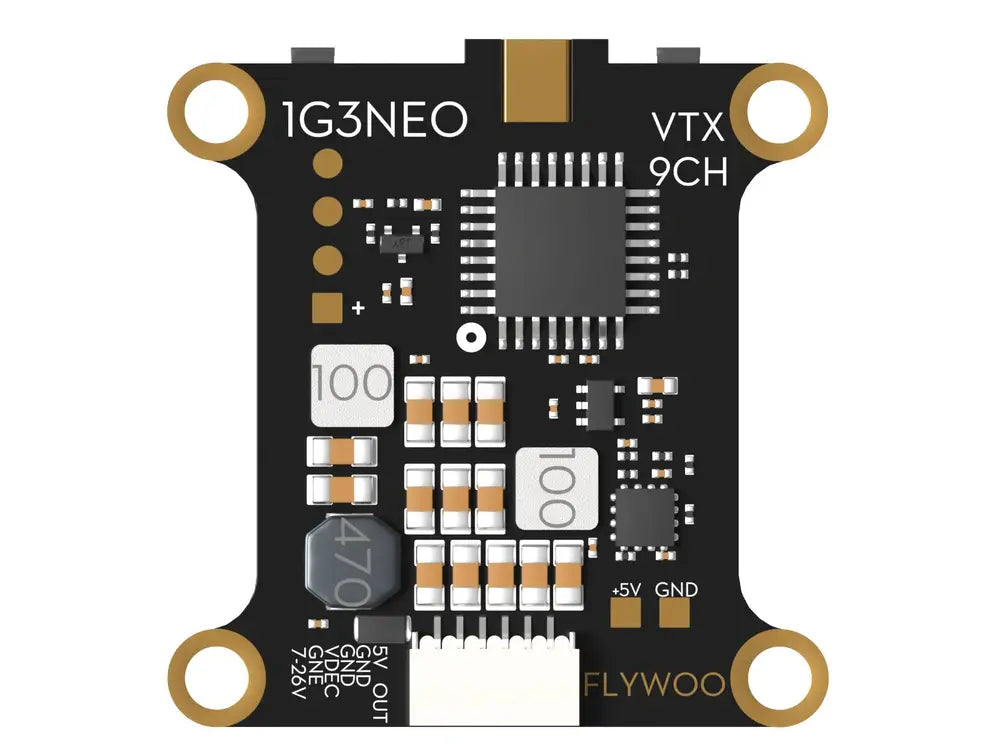

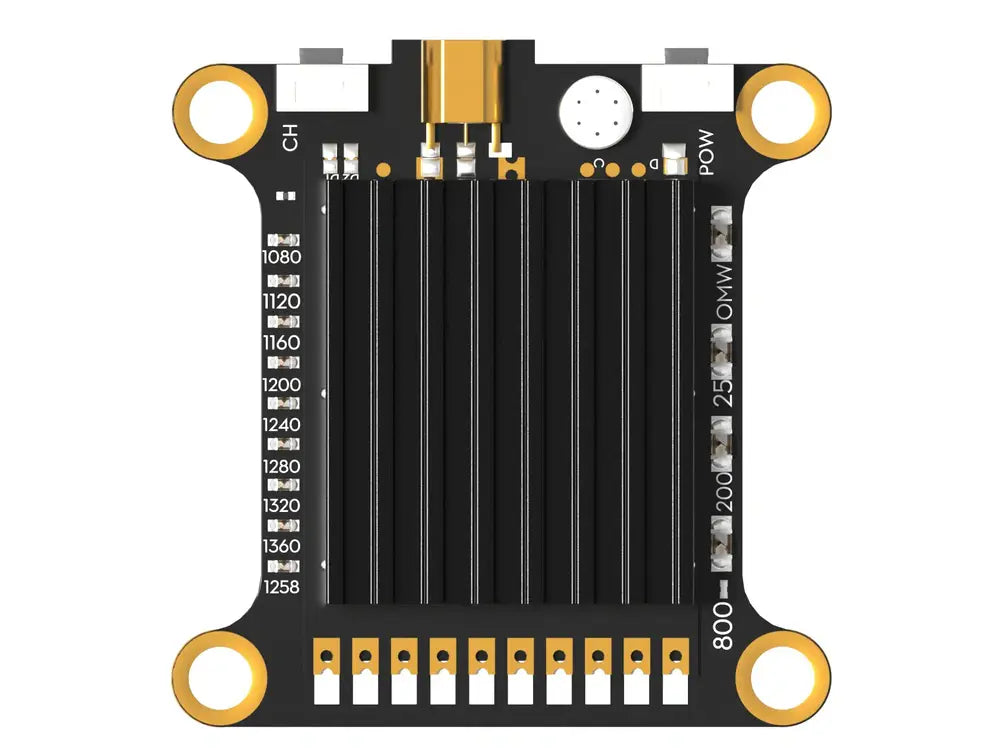

Flywoo 1G3NEO 1.2GHz/1.3GHz 800mW Video Transmitter

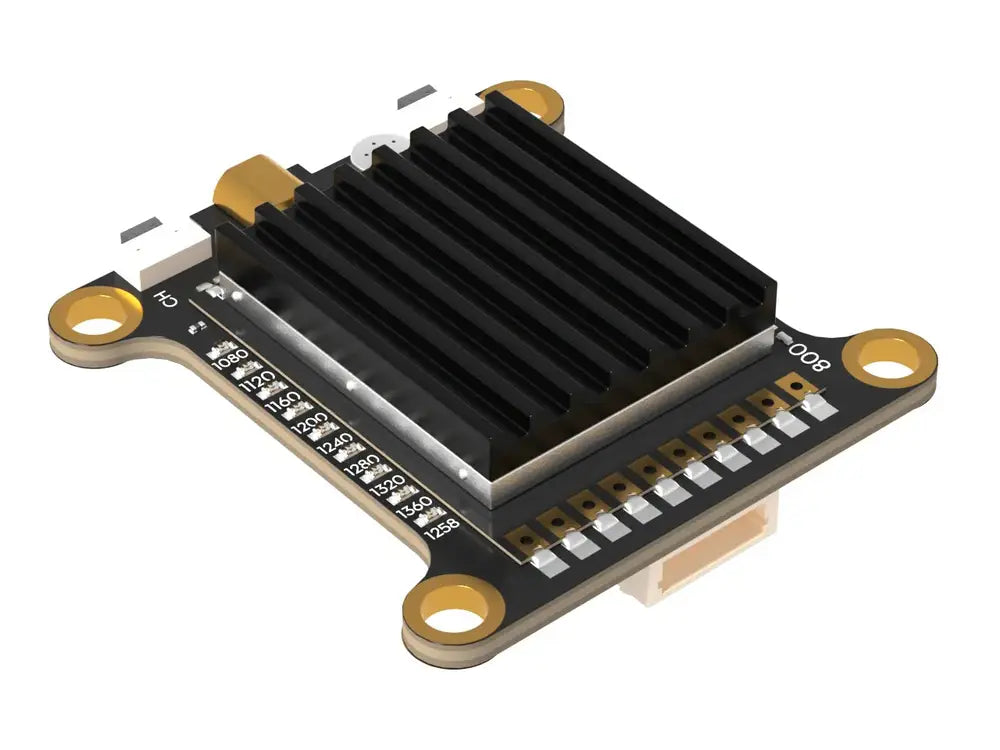

The Flywoo 1G3NEO Video Transmitter offers exceptional long-range analog performance and impressive power up to 800mW. The included heatsink ensures your transmitter stays cool, plus the Y-antenna and improved circuitry provide the smoothest, most reliable signal. The 7-26V DC input provides convenience and the built-in microphone gives the user the option of receiving audio. A modern 1.3GHz VTX.
Specifications:
- 9CH (1080,1120,1160,1200,1240,1280,1320,1360,1258MHz)
- US is limited to 1280MHz and 1258MHz
- RF power output: 0.1mw(0, pit mode), 25mw(1), 200mw(2), 800mw(3)
- Button control and LED indicators
- Built-in AGC microphone
- 7-26V DC IN (2-6S LiPo)
- Power Consumption: 40mA(0.1mw), 110mA(25mw), 150mA(200mw), 250mA(800mw) @12V IN
- Video format: NTSC or PAL
- Audio Subcarrier: 6.5 MHz & 6.0MHz, onboard microphone on 6.5MHz
- RF Connector: MMCX
- Weight: 12.2g
- Size: board 35*35mm
Settings:
- Press button-power(red led) to select RF output levels, 0 = 0.1mw pitmode, 1=25mw. 2=200mw, 3=800mw
- Press button-CH(blue led) frequency setting 1-9CH

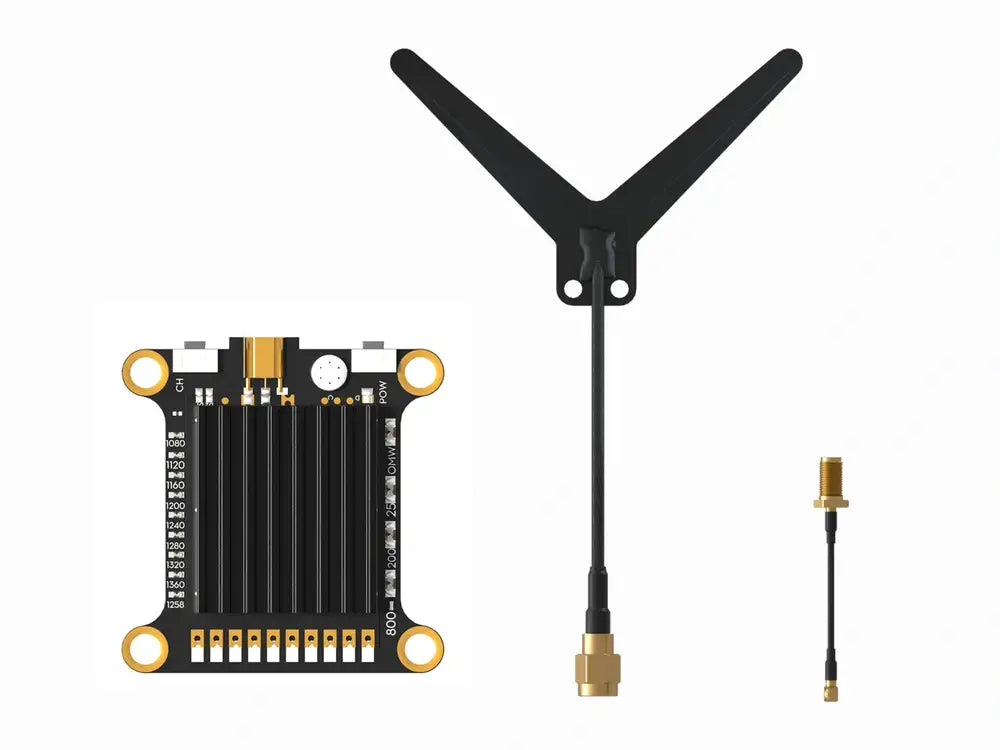

Includes:
1x Flywoo 1G3NEO 1.2GHz/1.3GHz 800mW Video Transmitter USA VERSION
1x Dipole Antenna
1x MMCX to SMA Cable
|
REGULATORY NOTICE The use and operation of this type of product in the USA and many other countries may require a license and some countries may forbid its use entirely. In the USA, you will need a "HAM" amateur radio license. Find a HAM license exam session in your area. It is your responsibility to ensure that the use of this product meets the requirements imposed by your government's rules and regulations for RF devices. Do not purchase this product if you are unsure of the government requirements or are not able to comply with them. Defiance RC, Inc cannot be held responsible for your actions if you purchase and/or use this product in violation of your government's regulations. By agreeing to our terms and conditions during the check-out process, you also agree to have read and to understand this notice. |
