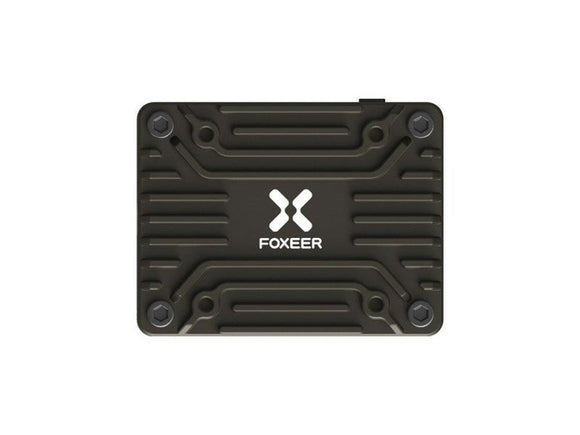

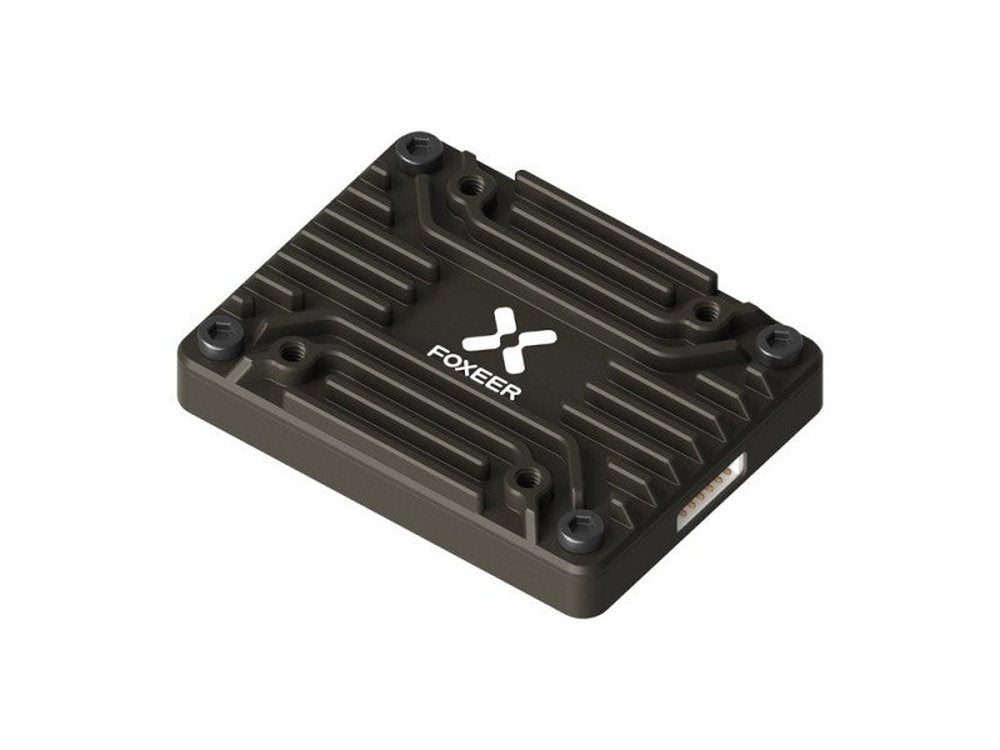

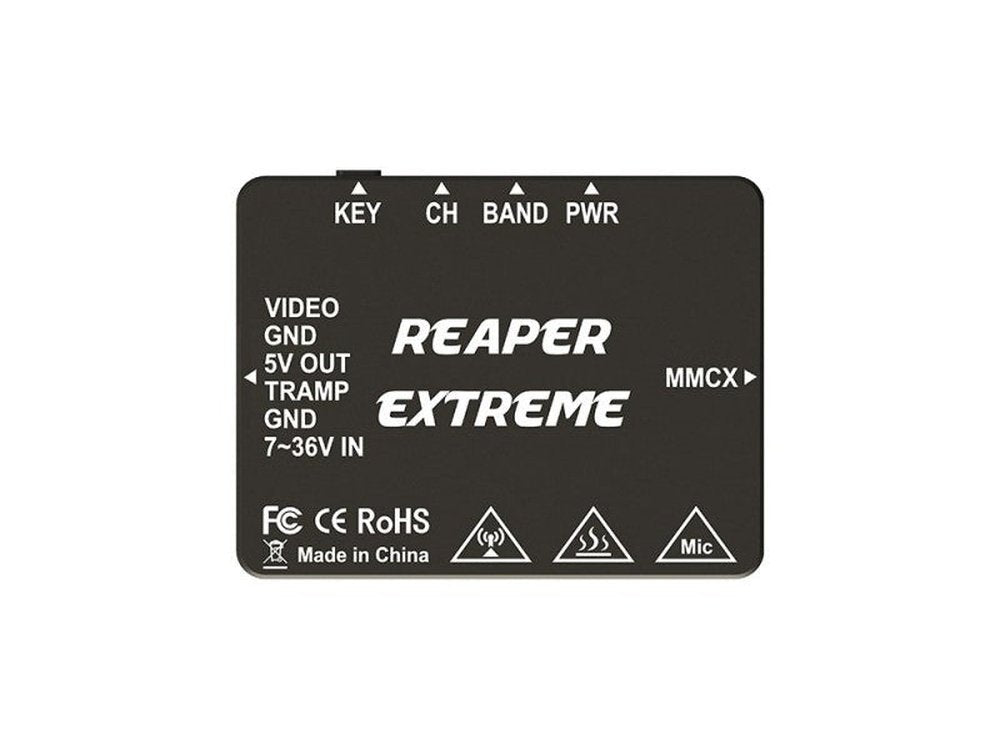

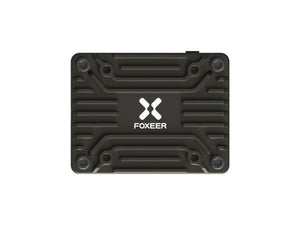

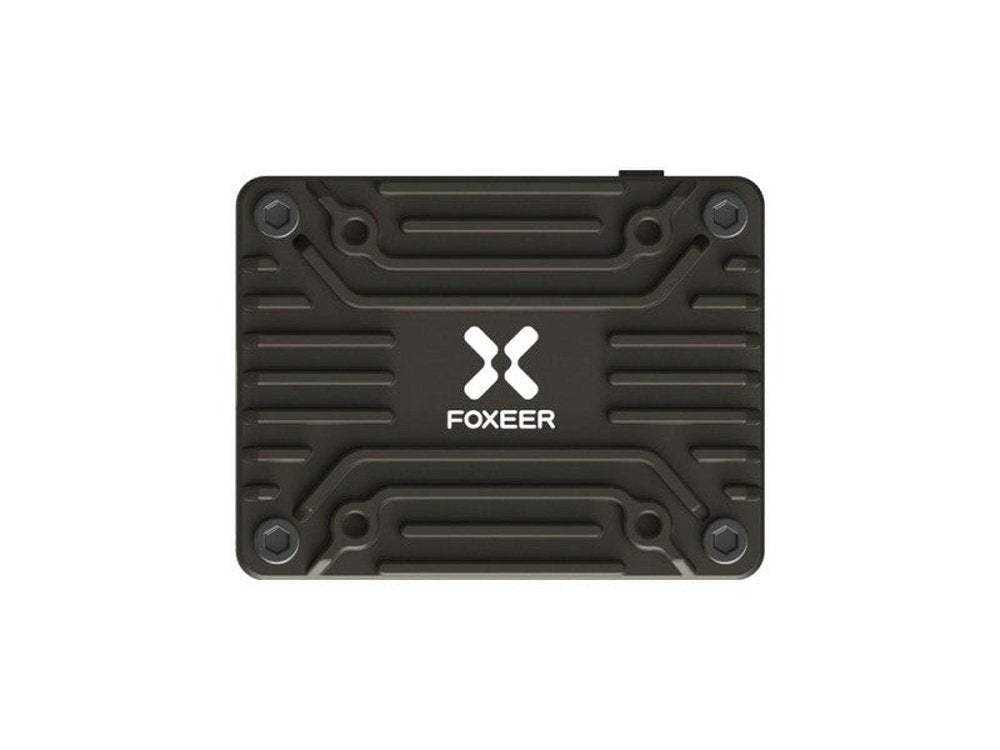

Foxeer Reaper Extreme V2 72Ch 5.8GHz VTX

  • $59.90
    Unit price per



The Foxeer Reaper Extreme V2 5.8GHz VTX is a high-output analog video transmitter.  Ideal for pilots flying in difficult RF areas or needing extra power for long-range.  Comes encased in a heat-dissipating shell.

Must Pair with Good Antennas to Avoid Self-Oscillation to Kill VTx

All Forbidden Frequency and Power Are Locked by Default

Specifications:

  • Input Voltage:  9~36V
  • Output Voltage:  5V
  • Channels:  72CH
  • Power:  25mW/200mW/500mW/1.5W/2.5W
  • Red LED light flash 1/2/3/4/5 times correspondingly
  • Pit: Double-click to enter
  • Weight:  13g
  • Mounting Hole:  20*20mm M2 2.8mm depth
  • Size:  36*27.5*8mm
  • Consumption:  1.2A/9V

Foxeer Reaper Extreme V2 72Ch 5.8GHz VTX

Includes:
1x Foxeer Reaper Extreme V2 72Ch 5.8GHz VTX
1x Silicone Cable

Download Frequency Table

Download Manual



REGULATORY NOTICE

The use and operation of this type of product in the USA and many other countries may require a license and some countries may forbid its use entirely. In the USA, you will need a "HAM" amateur radio license. Learn more about HAM licenses, and find a HAM license exam session in your area. It is your responsibility to ensure that the use of this product meets the requirements imposed by your government's rules and regulations for RF devices. Do not purchase this product if you are unsure of the government requirements or are not able to comply with them. Defiance RC, Inc cannot be held responsible for your actions if you purchase and/or use this product in violation of your government's regulations. By agreeing to our terms and conditions during the check-out process, you also agree to have read and to understand this notice.
