Hobbywing XRotor F7 Convertible Flight Controller 60A 4-In-1 ESC Stack

$129.99
Unit price per

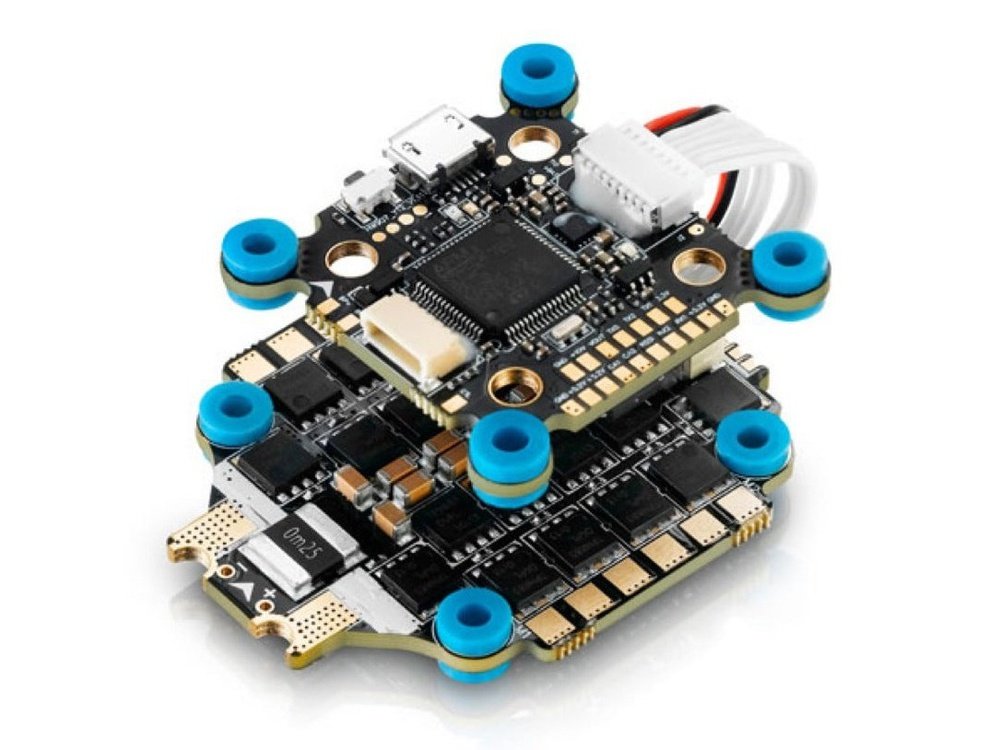

The Hobbywing XRotor 60A Stack includes the F7 Convertible Flight Controller and the popular XRotor 60A 4-In-1 BLHeli_32 ESC. Both products feature the latest in hardware and software support for the absolute best performance in any build.

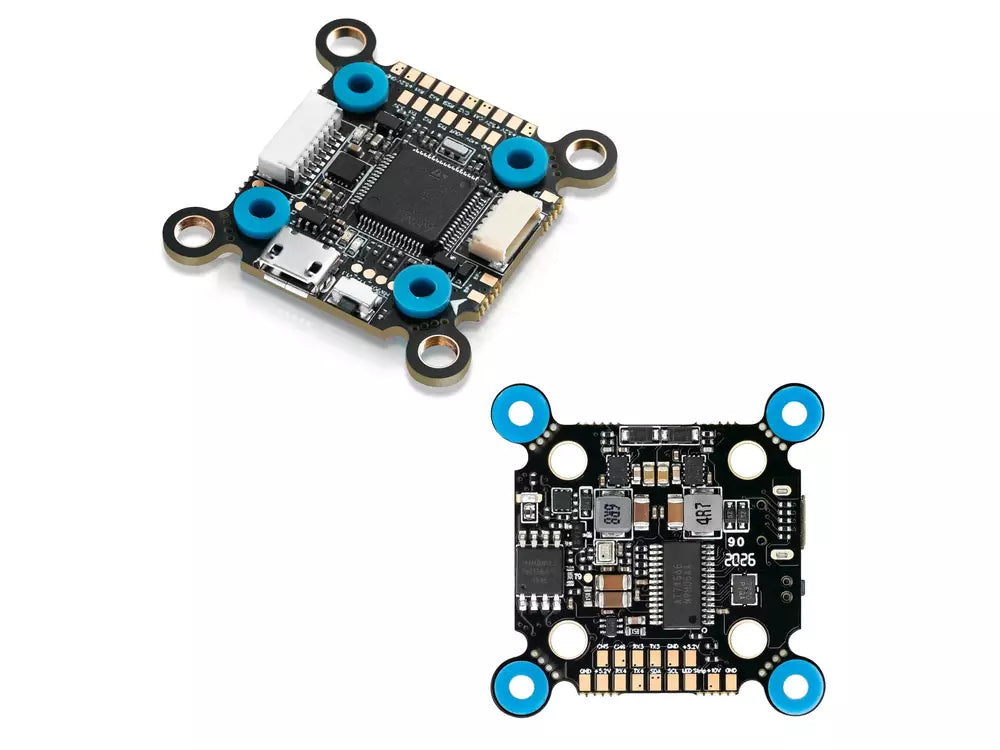

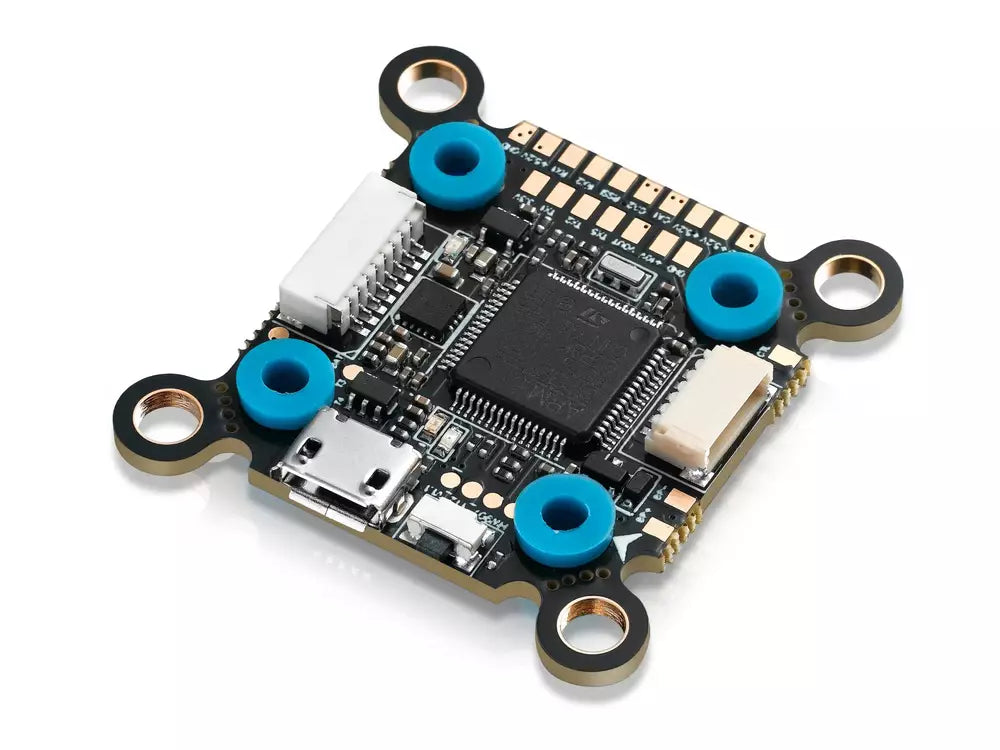

Hobbywing's XRotor F7 Flight Controller features a unique ability to convert from a 30x30 mm mounting to 20x20mm. You can snip off the holes on the corners. This flight controller features the powerful STM32F722 MCU, dual 5V & 12V BEC, built-in OSD chip, plug and play with DJI Digital FPV, and on-board flash memory for blackbox logging. This board was designed with the user in mind, it is easy to work on and stabilized with anti-vibration grommets and convenient plugs for connecting to Hobbywing XRotor 60A 4-In-1 ESC.

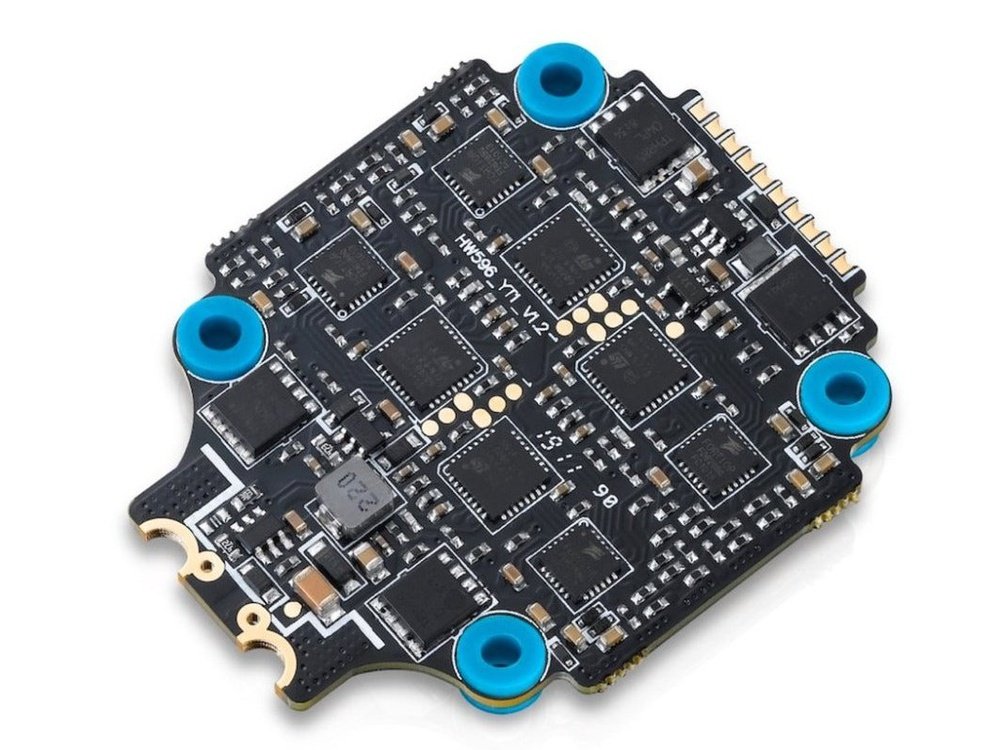

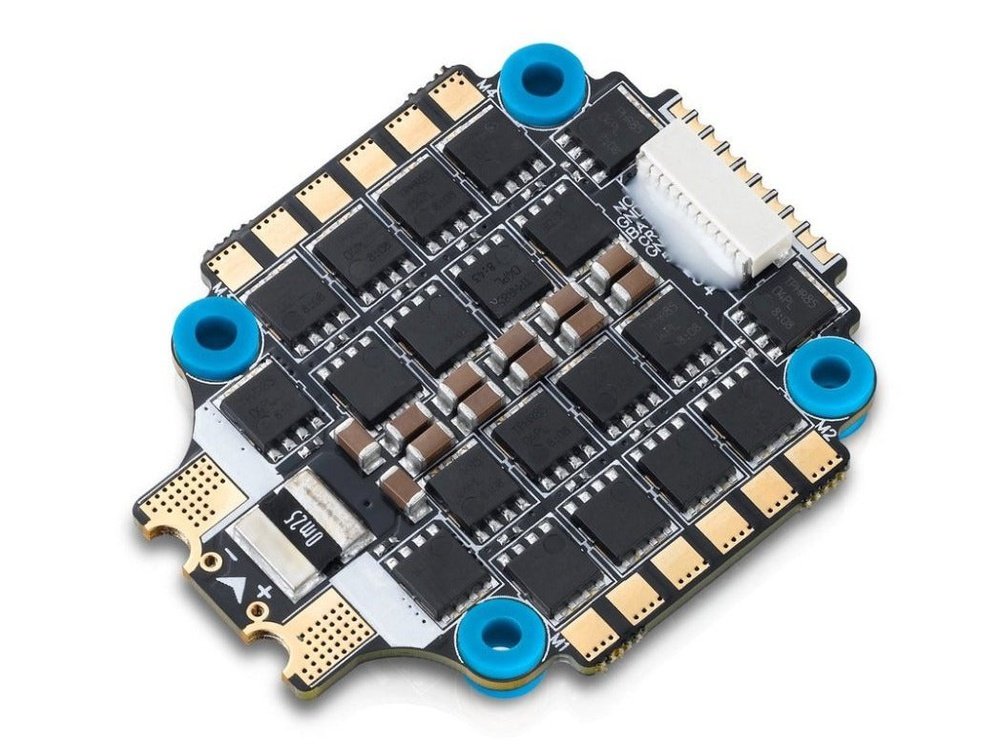

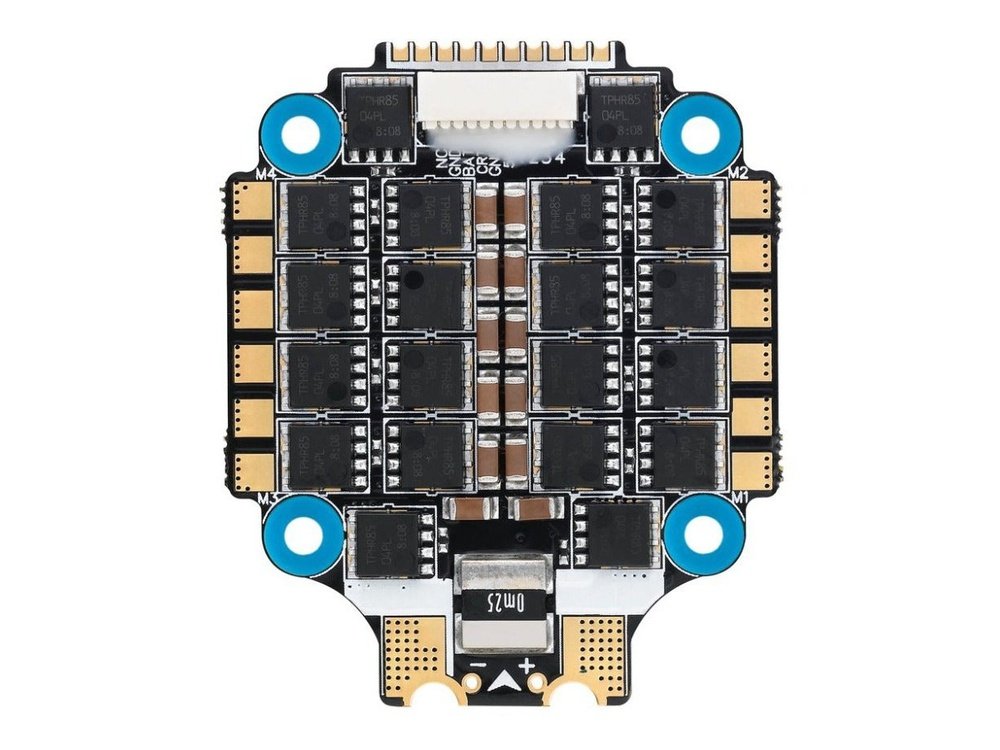

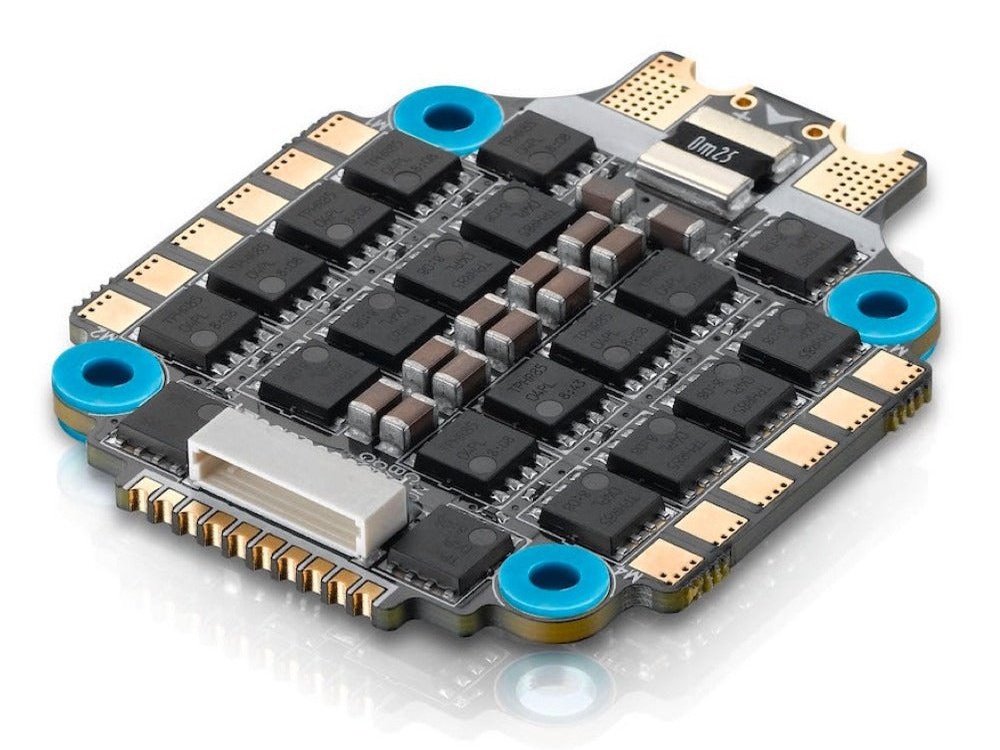

The XRotor 60A Micro 4-in-1 ESC comes loaded with the latest 32bit tech, as well as BLHeli32 firmware, DShot1200, Larger FETs, direct pins for a capacitor, and a choice of either a plug n' play ESC connector or solder pads for the flight controller.

Flight Controller Specifications:

Size: 32x32mm
Weight: 3.3g
USB Port: MicroUSB
BEC: 5V @1.5A; 10V @1.5A
LED Control: Supported
External Buzzer: Supported
Current Monitoring: Supported
Voltage Monitoring: Supported
OSD: Betaflight OSD Built-in
Firmware: HOBBYWING_XROTORF7CONV

4-IN-1 ESC Specifications:

LiPo Power input: 3S-6S
Cont.Current: 60Ax4
Burst Current: 80Ax4
BEC Output: 5V@ 0.5A
Input wires: 12AWG-130mm* (Red/Black)
Output Wire: No wires but solder tabs
Mounting: 30.5mm x 30.5mm
Weight: 15g
Dimensions: 52x42x6.6mm

Includes:
1x Hobbywing XRotor F7 Convertible Flight Controller
1x Hobbywing XRotor Micro 60A BLHeli_32 ESC
1x Hardware
1x XT60 Connector
1x Cable
