iFlight Blitz Mini F745 Flight Controller

$55.99
Unit price per

Introducing the iFlight Blitz Mini F745 Flight Controller, featuring an improved design and better components for lower electrical noise and top-of-the-line performance. With its fast STM32F745 MCU, plug-and-play DJI HD VTX compatibility, and quality engineering, this flight controller is the perfect choice for your next drone build.

Features:

Improved circuit design, better components, and lower electrical noise!
DJI HD VTX Connector (Plug-and-Play / No soldering required)
FC indicator LEDs for visual debugging
Support Betaflight, INAV, Ardupilot firmware

Specifications:

MCU: STM32F745
Gyro: ICM42688
Barometer: DPS310
OSD Chip: AT7456E
Flash: 16MB (Blackbox flash)
UARTS: 6
Motor Outputs: 4X (SH1.0 Connector)
Smartaudio / IRC Tramp VTX protocol supported
LED controller: Yes
Beeper pad: Yes

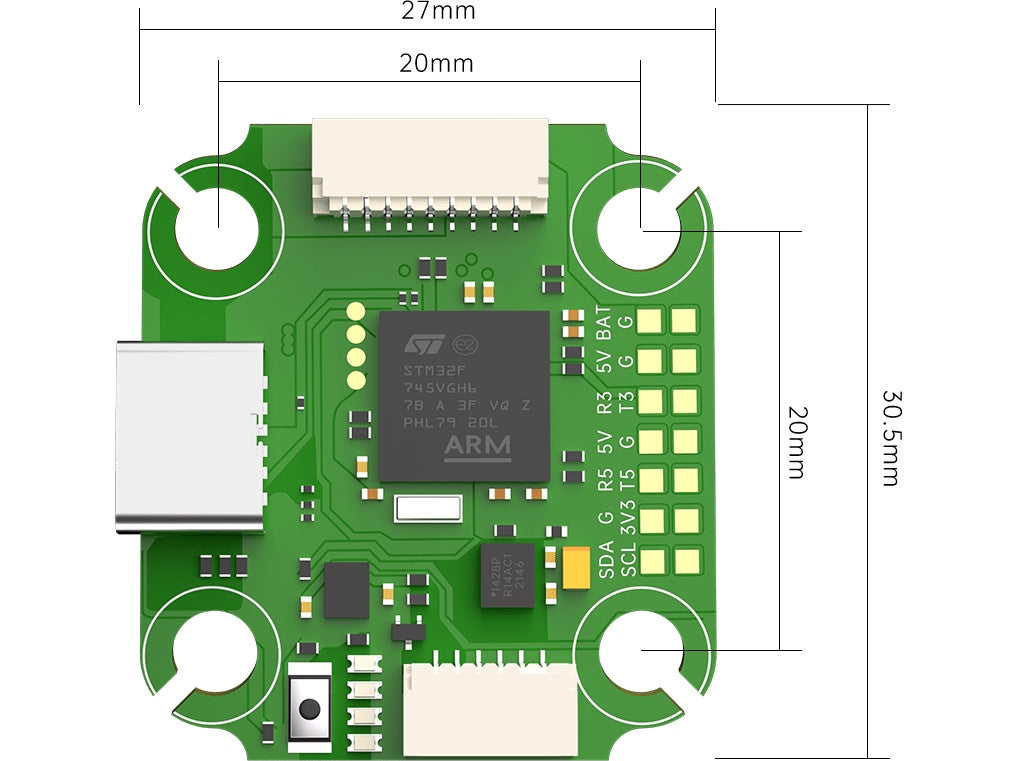

Mount pattern: 20*20mm
Dimensions: 30.5*27mm
Weight: 4.8g
BEC: Output 5V 2.5A continuous output current, 3A peak current (15 seconds)
BF Firmware target: IFLIGHT_BLITZ_F7_AIO
Ardupilot Firmware：arduplane_with_bl

Wiring Suggestion:

UART 1 for VTX HD / Analog
UART 2 for a Receiver
UART 3/4/5 for GPS or other sensors that require a serial port
UART 6 for ESC Telemetry

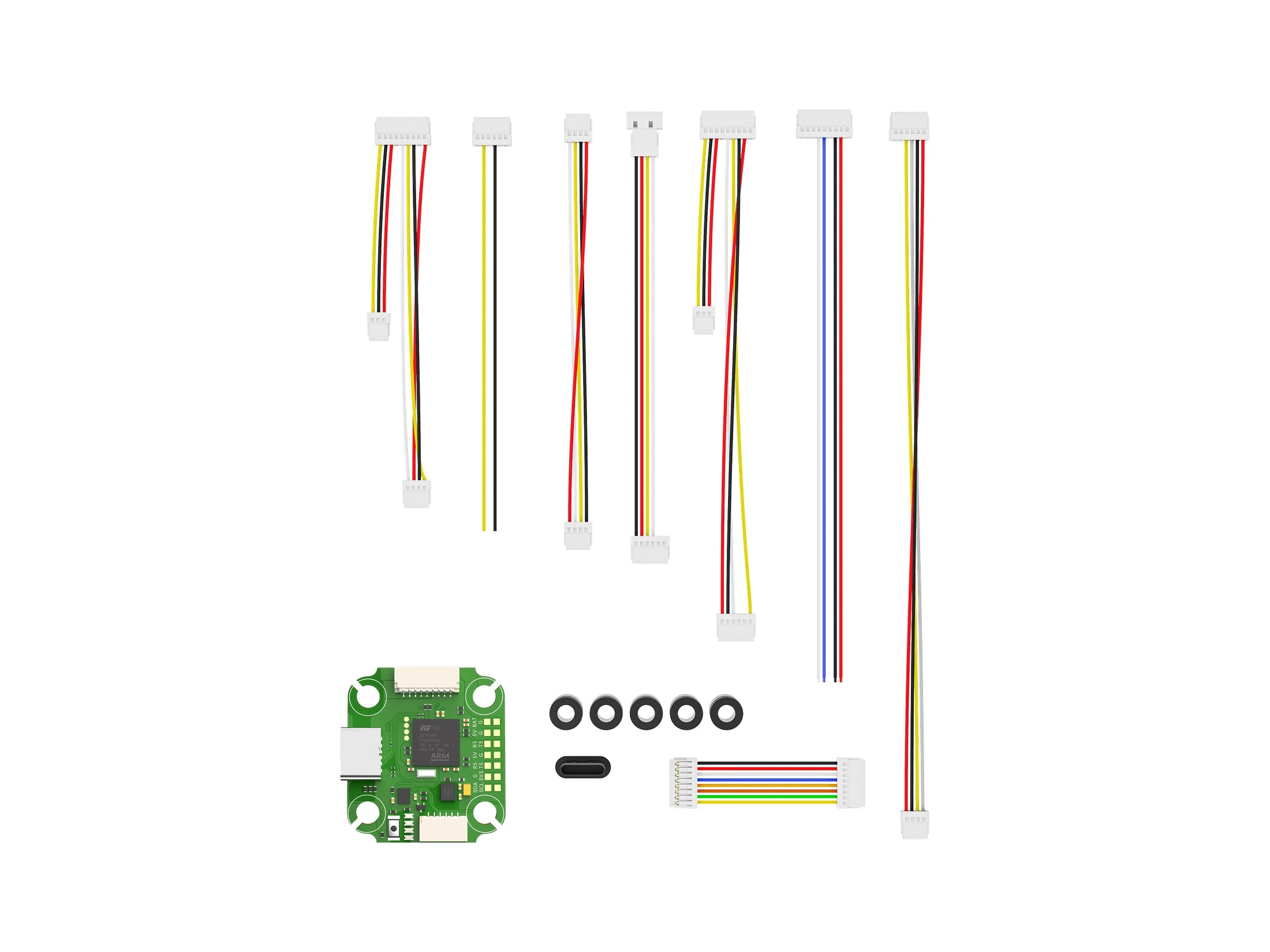

Includes:
1x iFlight Blitz Mini F745 Flight Controller
