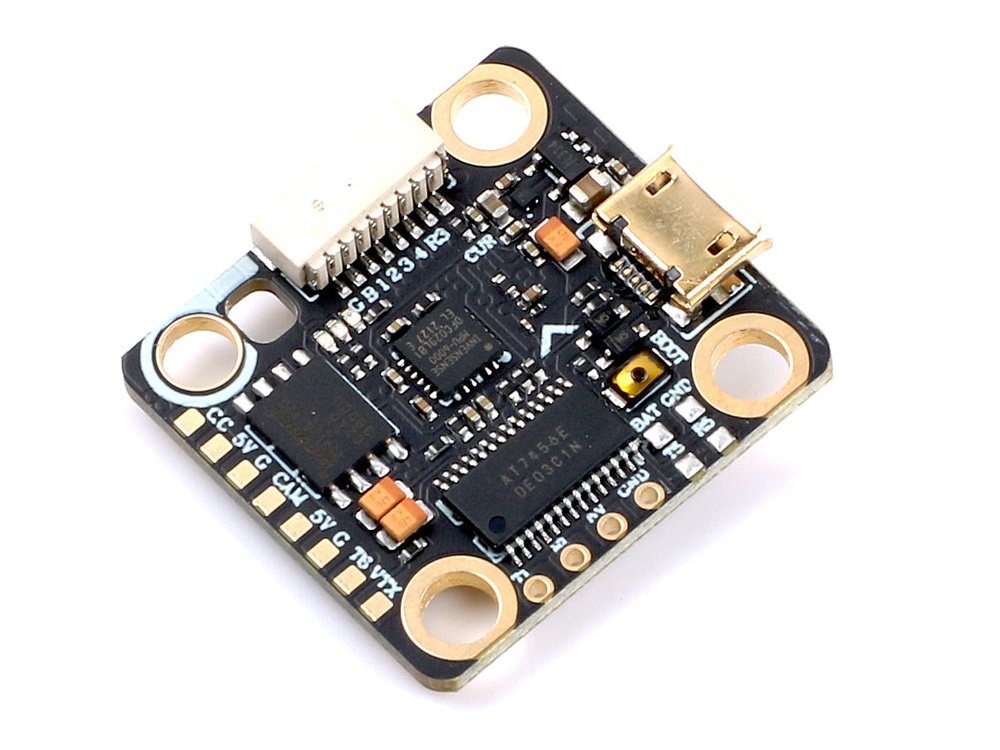

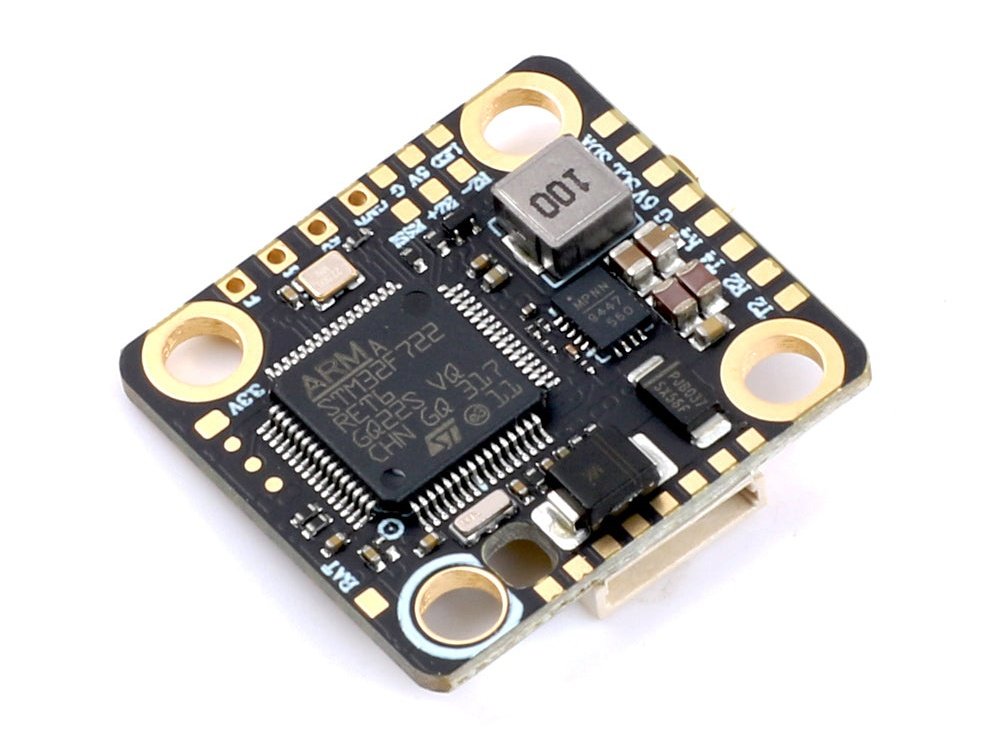

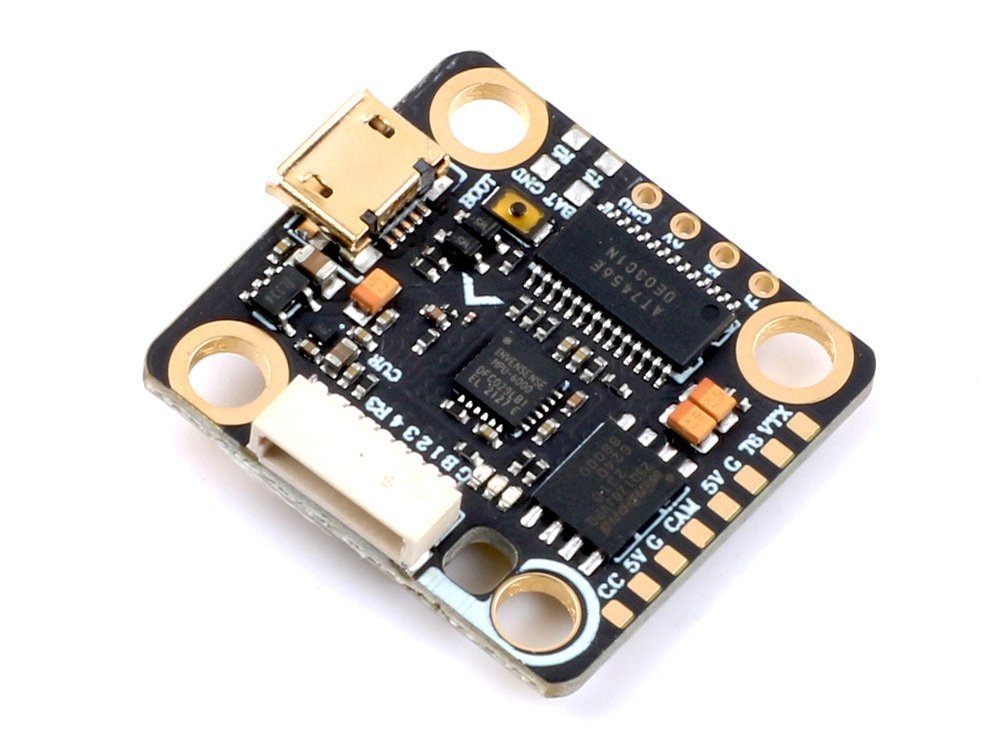

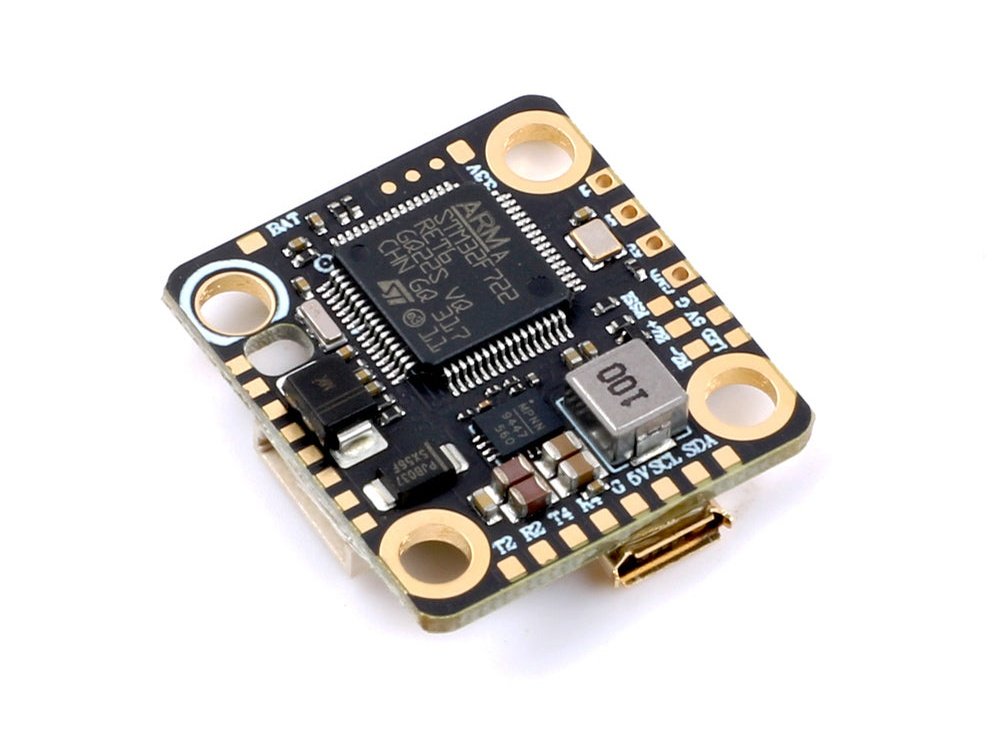

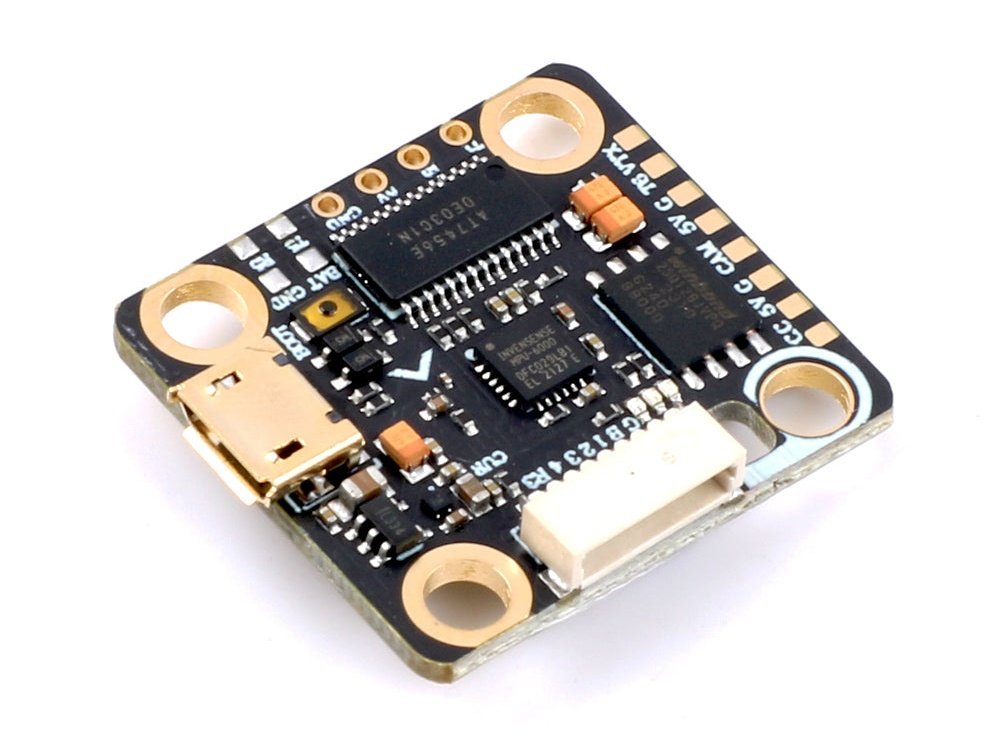

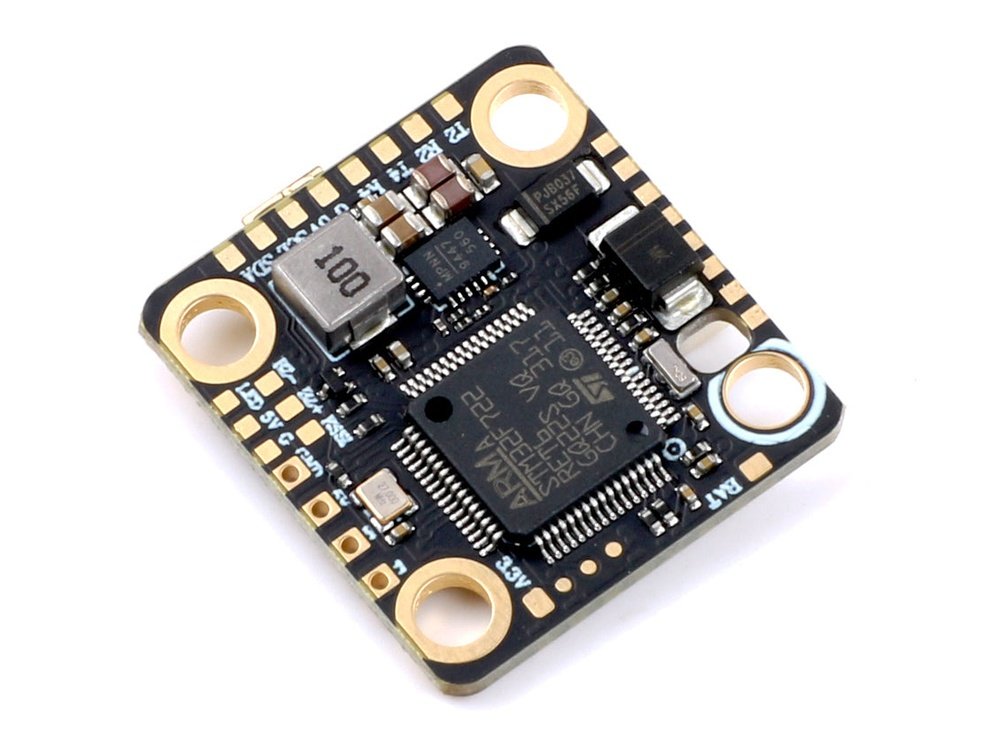

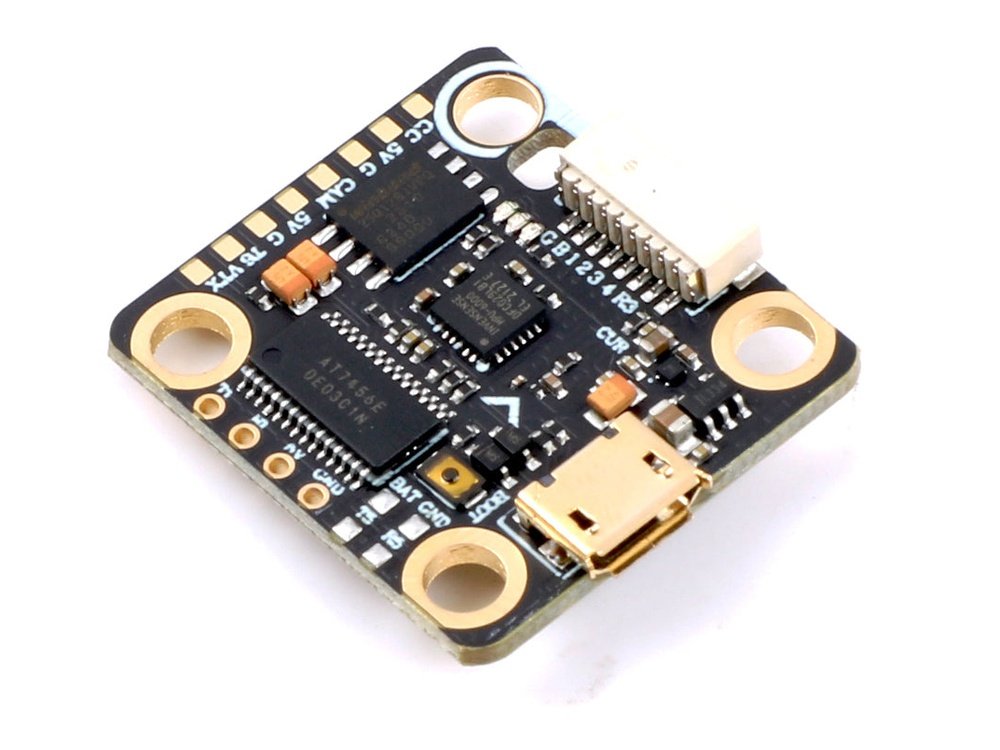

Skystars RC F7RS 3-6S Mini Flight Controller 20x20



Skystars F7RS is a flight controller designed for racing and freestyle 5" drones. The flight controller is based on the F722 processor with a MPU6000 gyro. The FC also includes a 5V 3A BEC, OSD and 16MB of blackbox memory. The flight controller is protected against voltage spikes by a TVS diode. The main advantage of the flight controller is its small size and light weight, which is especially appreciated by racing drone pilots.

Specifications:

  • MCU: STM32F722RGT6 216MHz
  • Gyro: MPU6000 (SPI)
  • Power supply: 3-6S Lipo
  • OSD: Betaflight & DJI HD OSD (UART6)
  • Number of UARTs: 6
  • Buzzer Pad:  YES
  • Barometer: No
  • BEC: 5V,3A
  • Blackbox: 16MB
  • Size: 26x28x7mm
  • Weight: 4.9g
  • Mounting holes: 20x20mm M3
  • Firmware:  SKYSTARS F7RS

Skystars RC F7RS Flight Controller Wiring Diagram

Includes:
1x Skystars RC F7RS 3-6S Flight Controller
1x Cable Set
1x Anti-Vibration Grommet Set
