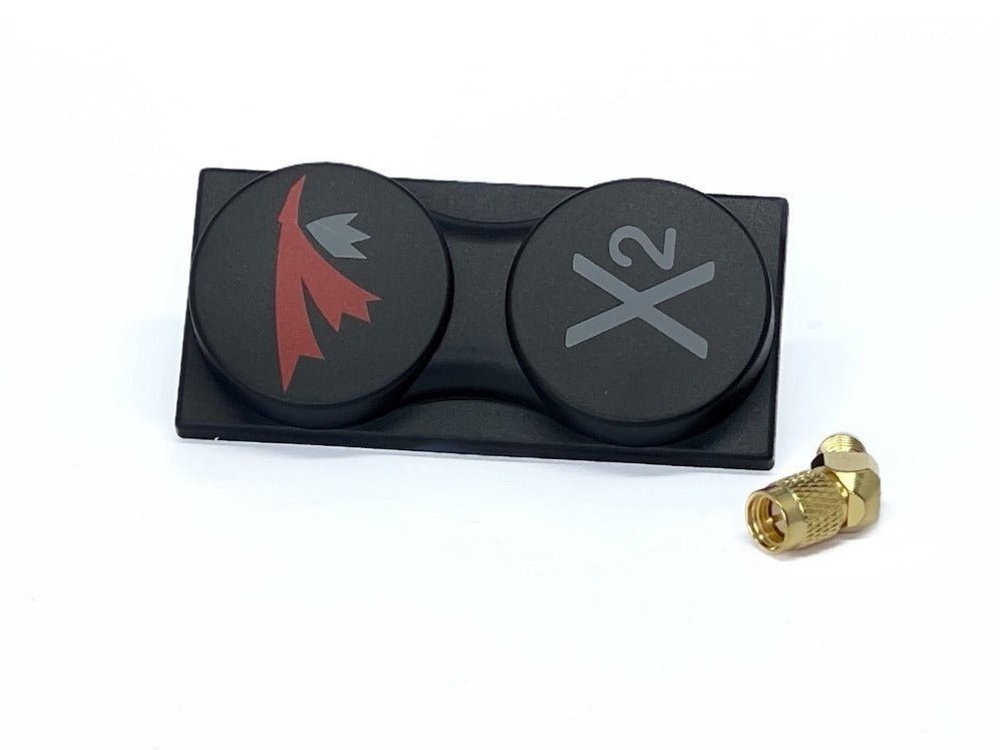

TrueRC X²-AIR MK II 5.8GHz RHCP SMA

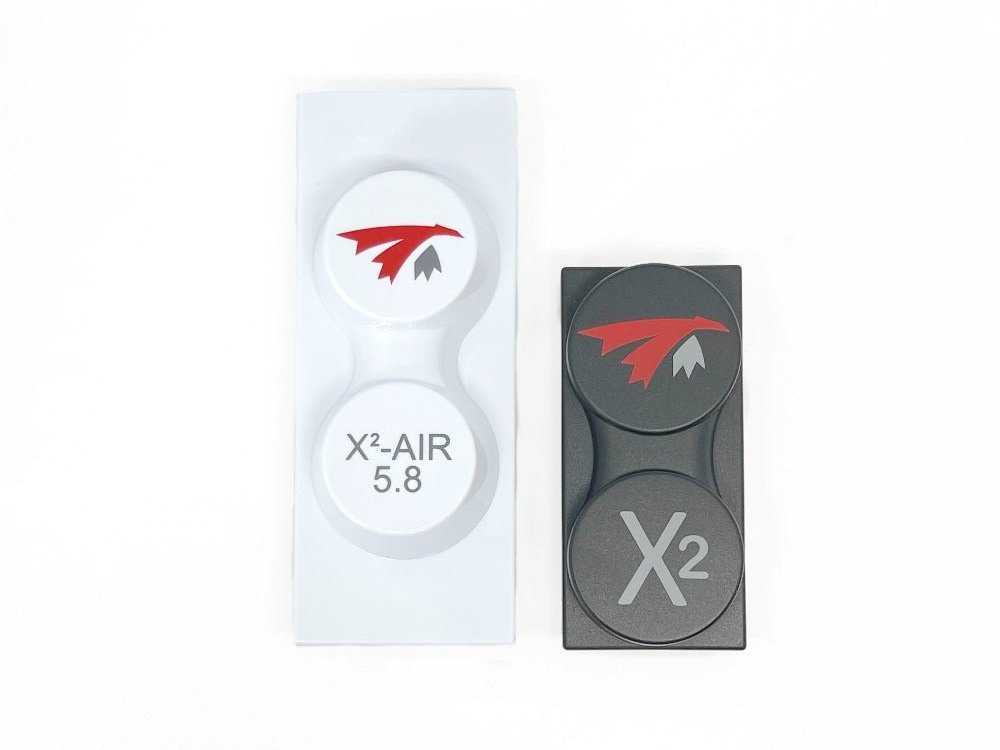

Following on the latest improvement of the X-AIR 5.8 MK II, this shrunk down X²-AIR is nothing less than the original beside its size. Bringing the high gain and wide horizontal beam in a new compact and light package.

Flown with TrueRC X²-AIR MK II Antenna

Specifications:

  • Bandwidth: 5.1GHz-7.0GHz
  • Gain: 13 dBic

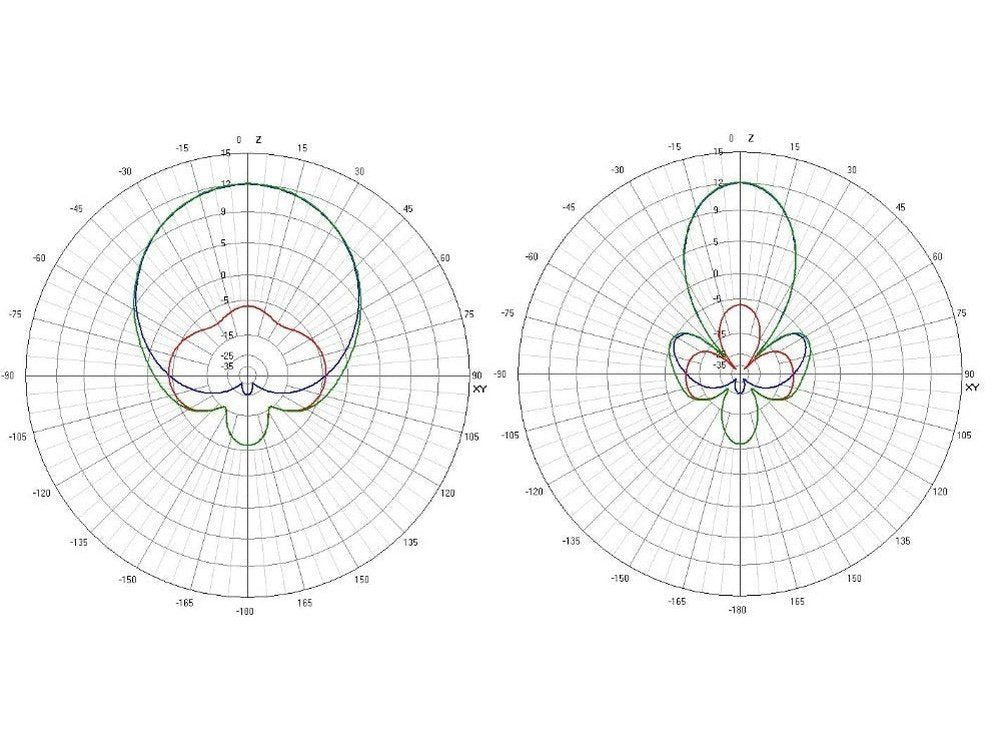

  • Beam-width Horizontal*: 150deg
  • Beam-width Vertical*: 62deg
  • Hor. beam @-3dB**: 74deg.
  • Vert. beam @-3dB**: 34deg.
  • Connector: SMA
  • Dimension: 72mm x 34mm x 22mm

*Coverage where reception is at least equivalent to an omni.
**Coverage where at least 70% of the max range is obtained.

Includes:
1x TrueRC X²-AIR MK II 5.8GHz RHCP SMA
